Search › Model › AT170

AT170

Toyota CARINA · 1988 · 4,225 parts · 194 categories

← Back to categories

4,225 items

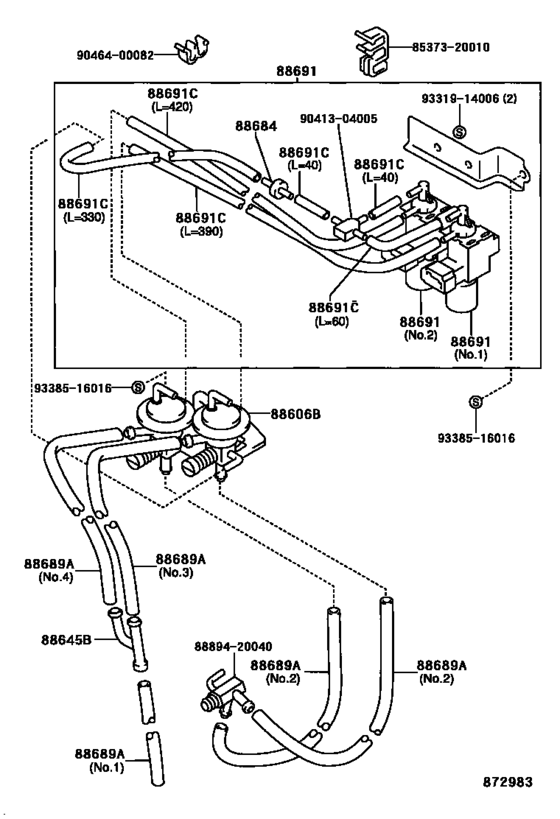

Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170) 18

#	OEM	Part name
88606	88606-20140	Diaphragm Sub-Assy, Cooler
88645	88892-20310	Joint, No.1 (For Idle Up Divice)
88684	88684-22010	Connector, Vacuum Pipe
88689	88689-12220	Hose, Cooler Vacuum No.1
88689	88689-20390	Hose, Cooler Vacuum No.1
88689	88689-20230	Hose, Cooler Vacuum No.1
88689	88689-20580	Hose, Cooler Vacuum No.1
88689	88689-32030	Hose, Damper Control Diaphragm Vacuum
88691	88691-10010	Valve, Magnet (For Idle Up Device)
88691	88691-12150	Valve, Magnet (For Idle Up Device)
88691	90999-92002	Air Hose (300 mm)
88691	90999-92003	Hose, Breather (For Transfer Case)
8537320010	85373-20010	Hose, Windshield Washer (from Joint To Nozzle)
8889420040	88894-20040	New Genuine Part
9041304005	90413-04005	Way, 3, No.1 (For Front Drive Shift)
9046400082	90464-00082	Clamp(For Resistive Cord)
9331914006	93319-14006	SCREW WITH WASHER
9338516016	93385-16016	New Genuine Part

OEM	Part name	Category
85373-20010	Hose, Windshield Washer (from Joint To Nozzle)	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
88606-20140	Diaphragm Sub-Assy, Cooler	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
88684-22010	Connector, Vacuum Pipe	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
88689-12220	Hose, Cooler Vacuum No.1	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
88689-20230	Hose, Cooler Vacuum No.1	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
88689-20390	Hose, Cooler Vacuum No.1	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
88689-20580	Hose, Cooler Vacuum No.1	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
88689-32030	Hose, Damper Control Diaphragm Vacuum	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
88691-10010	Valve, Magnet (For Idle Up Device)	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
88691-12150	Valve, Magnet (For Idle Up Device)	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
88892-20310	Joint, No.1 (For Idle Up Divice)	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
88894-20040	New Genuine Part	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
90413-04005	Way, 3, No.1 (For Front Drive Shift)	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
90464-00082	Clamp(For Resistive Cord)	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
90999-92002	Air Hose (300 mm)	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
90999-92003	Hose, Breather (For Transfer Case)	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
93319-14006	SCREW WITH WASHER	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)
93385-16016	New Genuine Part	Heating & Air Conditioning - Vacuum Piping ([05.1990 - ] (9005- )AT170)

Source: Public OEM parts-catalog data
Variants: 2 / 21
Category: 194
Collected: 2026-08-02
