Search › Model › AT170

AT170

Toyota CARINA · 1988 · 4,225 parts · 194 categories
AT170 ×

← Back to categories

4,225 items

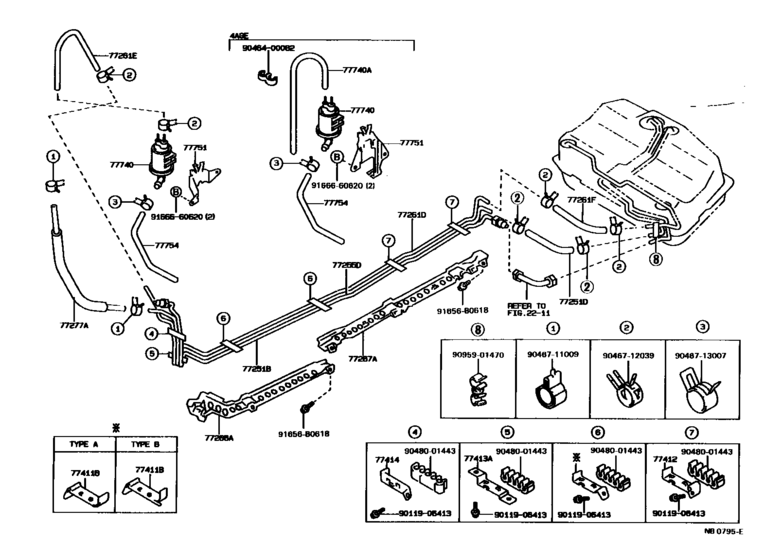

Fuel Tank & Tube ([06.1990 - ] (8805-9006)AT171,ST170 ; (9006- )AT170,171,ST 170) 33
#OEMPart name
77251 77251-20500 Tube, Fuel Main
77251 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77251 95337-06020 Hose, Differential Pressure Control
77255 77255-20440 Tube, Fuel Return
77261 77261-20220 Tube, Fuel Tank To Canister
77261 77259-20080 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77266 77266-20090 Protector, Fuel Tube, No.1
77267 77267-20050 Protector, Fuel Tube, No.2
77277 90447-12085 Hose, Fuel, No.1(For Return Tube, No.1)
77277 90447-12141 Hose, Fuel, No.1(For Return Tube, No.1)
77411 77411-20010 Support, Fuel Tube Grommet, No.1
77411 77411-20020 Support, Fuel Tube Grommet, No.1
77412 77412-20010 Support, Fuel Tube Grommet, No.2
77413 77413-20010 Support, Fuel Tube Grommet, No.3
77414 77414-20010 Support, Fuel Tube Grommet, No.4
77740 77704-60050 Canister Assy, Charcoal
77740 90447-04061 Hose, Fuel, No.1(For Charcoal Canister)
77751 77751-20180 Bracket, Charcoal Canister Base
77754 77754-20080 Hose, Charcoal Canister Outlet, No.1
91656 91656-B0618 New Genuine Part
91656 91651-B0614 BOLT WWASHER
9011906413 90119-06413 New Genuine Part
9046400082 90464-00082 Clamp(For Resistive Cord)
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046712039 96132-51100 Clip (For Hose)
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9048001443 90480-01443 New Genuine Part
9095901470 90959-01470 New Genuine Part
9166660620 91666-60620 New Genuine Part
9166660620 91661-60616 BOLT
