AT170

Toyota CARINA · 1988 · 4,225 parts · 194 categories

4,225 items

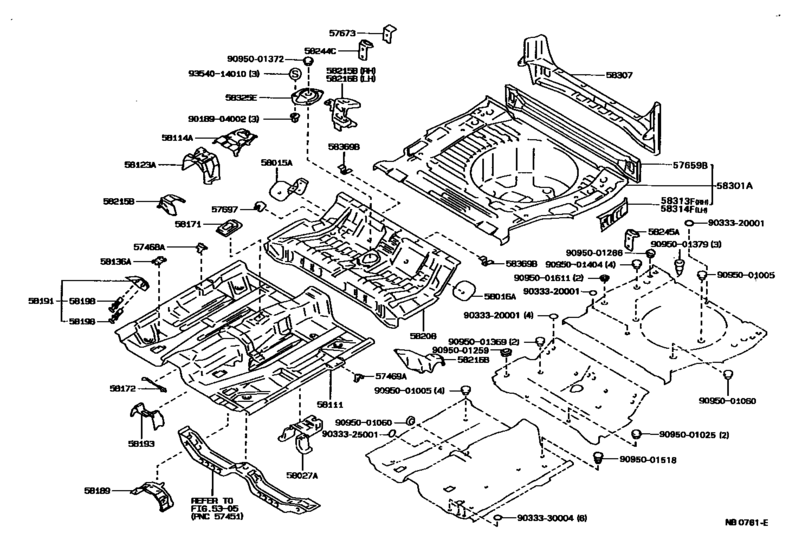

Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG) 50

#	OEM	Part name
57468	57468-20030	Bracket, Front Seat, Outside, Rear Rh
57469	57469-20030	Bracket, Front Seat, Outside
57659	57659-95502	Member, Rear Floor Cross, Rear Inner
57673	57673-20070	Bracket, Rear Seat Back Hinge Mounting
57697	57697-32020	Retainer, Rear Seat Cushion
58015	58015-32030	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58016	58016-32020	Reinforce Sub-Assy, Belt Anchor, No.3 Lh
58027	58027-20070	Reinforce Sub-Assy, Seat Belt Anchor
58111	58111-20120	Pan, Front Floor
58114	58114-20040	Reinforcement, Front Floor Panel
58123	58123-20040	Support, Shift & Select Lever
58136	58136-20010	Cover, Front Floor Service Hole
58171	58171-20100	Reinforcement, Parking Brake Base
58172	58172-20040	Bracket, Computer Mounting, No.3
58189	58189-20020	Reinforcement, Exhaust Pipe Clamp Bracket
58191	58191-20040	Footrest, Front Floor
58193	58109-20090	Bracket, Instrument Panel Brace Mounting
58198	58198-20020	Clip, Footrest
58198	58198-20030	Clip, Footrest
58208	58211-32051	Pan, Center Floor
58215	58215-20010	Bracket, Rear Seat Mounting, Rh
58216	58216-20010	Bracket, Rear Seat Mounting, Lh
58244	58244-20010	Bracket, Rear Seat Cushion Mounting, Rh
58245	58245-20020	Bracket, Rear Seat Hinge, Center No.1
58301	58301-95509	Panel Sub-Assy, Rear Floor
58307	58307-95516	Panel Sub-Assy, Body Lower Back
58313	58313-95503	Extension, Rear Floor Pan To Quarter Panel, Rh
58314	58314-95503	Extension, Rear Floor Pan To Quarter Panel, Lh
58325	58325-32020	Cover, Rear Floor Service Hole
58369	58369-32010	Bracket, Insulator Heat
9018904002	90189-04002	GROMMET
9033320001	90333-20001	PLUG
9033325001	90333-25001	Plug, Hole(For Hood)
9033330004	90333-30004	PLUG
9095001005	90950-01005	PLUGHOLE
9095001005	90950-01867	PLUG HOLE
9095001025	90950-01025	Plug, Hole(For Front Fender Apron)
9095001060	90950-01060	Plug, Hole, No.1(For Dash Panel)
9095001060	90950-01866	Plug, Hole(For Front Door Panel)
9095001259	90950-01259	PLUG
9095001266	90950-01266	New Genuine Part
9095001369	90950-01369	New Genuine Part
9095001369	90950-01979	New Genuine Part
9095001372	90950-01372	Cover, Console Box Hole
9095001372	90950-01959	Cover, Console Box Hole
9095001379	90950-01379	New Genuine Part
9095001404	90950-01404	CLIP
9095001518	90950-01518	PLUG
9095001611	90950-01611	New Genuine Part
9354014010	93540-14010	Clip, Headlining Retainer

OEM	Part name	Category
57468-20030	Bracket, Front Seat, Outside, Rear Rh	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
57469-20030	Bracket, Front Seat, Outside	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
57659-95502	Member, Rear Floor Cross, Rear Inner	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
57673-20070	Bracket, Rear Seat Back Hinge Mounting	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
57697-32020	Retainer, Rear Seat Cushion	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58015-32030	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58016-32020	Reinforce Sub-Assy, Belt Anchor, No.3 Lh	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58027-20070	Reinforce Sub-Assy, Seat Belt Anchor	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58109-20090	Bracket, Instrument Panel Brace Mounting	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58111-20120	Pan, Front Floor	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58114-20040	Reinforcement, Front Floor Panel	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58123-20040	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58136-20010	Cover, Front Floor Service Hole	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58171-20100	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58172-20040	Bracket, Computer Mounting, No.3	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58189-20020	Reinforcement, Exhaust Pipe Clamp Bracket	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58191-20040	Footrest, Front Floor	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58198-20020	Clip, Footrest	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58198-20030	Clip, Footrest	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58211-32051	Pan, Center Floor	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58215-20010	Bracket, Rear Seat Mounting, Rh	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58216-20010	Bracket, Rear Seat Mounting, Lh	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58244-20010	Bracket, Rear Seat Cushion Mounting, Rh	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58245-20020	Bracket, Rear Seat Hinge, Center No.1	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58301-95509	Panel Sub-Assy, Rear Floor	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58307-95516	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58313-95503	Extension, Rear Floor Pan To Quarter Panel, Rh	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58314-95503	Extension, Rear Floor Pan To Quarter Panel, Lh	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58325-32020	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
58369-32010	Bracket, Insulator Heat	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90189-04002	GROMMET	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90333-20001	PLUG	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90333-25001	Plug, Hole(For Hood)	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90333-30004	PLUG	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01005	PLUGHOLE	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01025	Plug, Hole(For Front Fender Apron)	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01060	Plug, Hole, No.1(For Dash Panel)	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01259	PLUG	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01266	New Genuine Part	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01369	New Genuine Part	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01372	Cover, Console Box Hole	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01379	New Genuine Part	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01404	CLIP	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01518	PLUG	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01611	New Genuine Part	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01866	Plug, Hole(For Front Door Panel)	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01867	PLUG HOLE	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01959	Cover, Console Box Hole	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
90950-01979	New Genuine Part	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
93540-14010	Clip, Headlining Retainer	Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )WG)
