AT170

Toyota CARINA · 1988 · 4,225 parts · 194 categories

← Back to categories

4,225 items

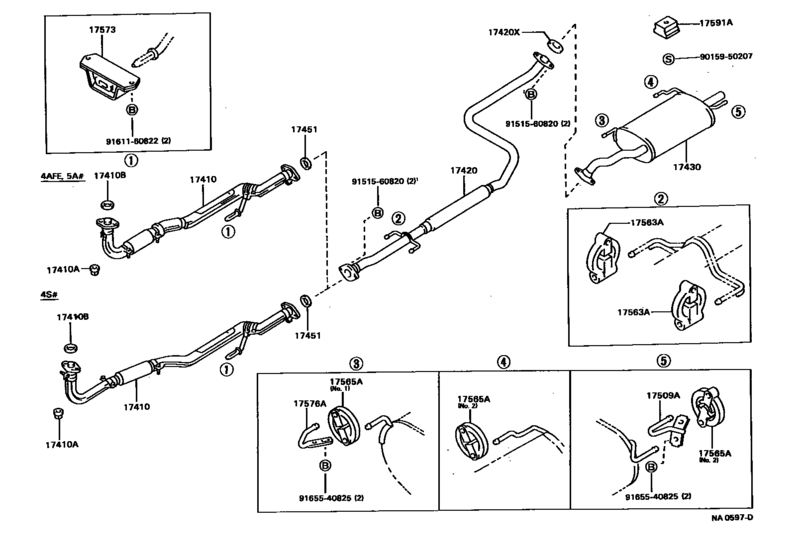

Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#) 19

#	OEM	Part name
17410	17410-15250	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06039	Gasket, Exhaust Pipe
17420	17420-15120	Pipe Assy, Exhaust, Center
17430	17430-15520	Pipe Assy, Exhaust, Tail
17509	17509-63060	Bracket, Exhaust Tail Pipe (For Rear)
17563	17565-15070	Support, Exhaust Pipe, No.3
17565	17565-63020	Ring, Catalytic Converter
17565	17565-63030	Bracket, Catalytic Converter Support
17573	17573-74020	Bracket, Exhaust Pipe No.1 Support, Lower
17576	17576-74030	Bracket Sub-Assy, Exhaust Pipe No.2 Support
17591	17591-36011	Cushion, Exhaust Pipe Center, Center
9015950207	90159-50207	New Genuine Part
9151560820	91515-60820	New Genuine Part
9151560820	91511-B0816	BOLT
9161160822	91611-60822	Bolt
9165540825	91655-40825	New Genuine Part
9165540825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)

OEM	Part name	Category
17410-15250	Pipe Assy, Exhaust, Front	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
17420-15120	Pipe Assy, Exhaust, Center	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
17430-15520	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
17509-63060	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
17565-15070	Support, Exhaust Pipe, No.3	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
17565-63020	Ring, Catalytic Converter	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
17565-63030	Bracket, Catalytic Converter Support	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
17573-74020	Bracket, Exhaust Pipe No.1 Support, Lower	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
17576-74030	Bracket Sub-Assy, Exhaust Pipe No.2 Support	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
17591-36011	Cushion, Exhaust Pipe Center, Center	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
90159-50207	New Genuine Part	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
90917-06039	Gasket, Exhaust Pipe	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
91511-B0816	BOLT	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
91515-60820	New Genuine Part	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
91611-60822	Bolt	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
91655-40825	New Genuine Part	Exhaust Pipe ([05.1988 - ] (8805-9005)4AFE..AT171 ; (8805- )5AF#,4SF#)
