Search › Model › AT170

AT170

Toyota CARINA · 1988 · 4,225 parts · 194 categories

4,225 items

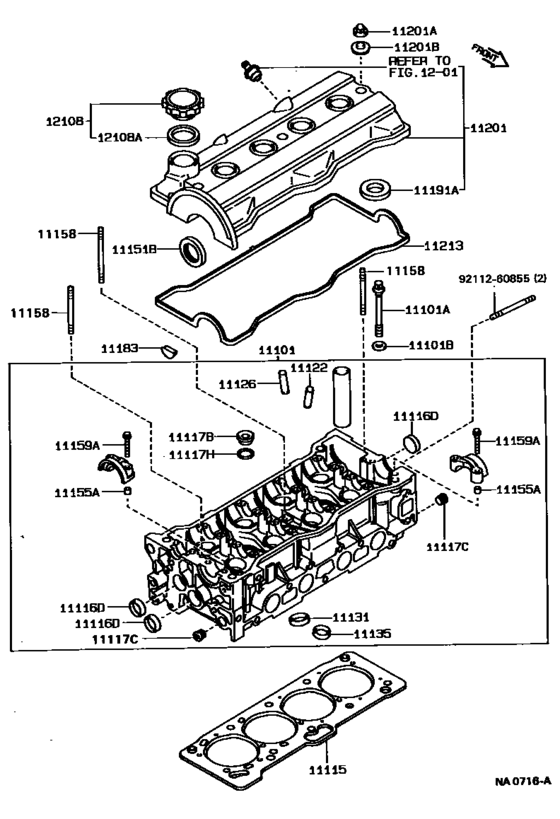

Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#) 34

#	OEM	Part name
11101	11101-19255	Head Sub-Assy, Cylinder
11101	90109-10058	Bolt(For Cylinder Head Set)
11101	90910-02120	Bolt(For Cylinder Head Set)
11101	90109-10059	Bolt(For Cylinder Head Set)
11101	90910-02121	Bolt(For Cylinder Head Set)
11101	90201-10344	Washer, Plate(For Cylinder Head Set)
11115	11115-15072	Gasket, Cylinder Head
11115	11115-15073	Gasket, Cylinder Head
11116	96411-42800	Plug, Tight, No.1
11117	90341-20002	Plug, W/head Taper Screw, No.1
11117	90430-20004	Gasket(For Cylinder Head Screw Plug)
11122	11122-15030	Bush, Intake Valve Guide
11122	11123-15030	Bush, Intake Valve Guide
11131	11131-15040	Seat, Intake Valve
11131	11132-15040	Seat, Intake Valve
11135	11135-15030	Seat, Exhaust Valve
11135	11136-15030	Seat, Exhaust Valve
11151	90311-35013	Seal, Oil(For Camshaft Setting)
11151	90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)
11151	90311-35022	Seal, Oil(For Camshaft Setting)
11155	90253-09001	Pin, Ring W/head
11158	90116-06073	Bolt, Stud(For Head To Cylinder Head Cover)
11158	90116-06074	Bolt, Stud(For Head To Cylinder Head Cover)
11159	90109-06080	Bolt, Stud(For Head To Cylinder Head Cover)
11183	11183-15020	Plug, Semicircular
11191	11193-15010	Gasket(For Spark Plug Tube)
11201	11210-16100	Cover Sub-Assy, Cylinder Head
11201	90176-06008	Nut, Cap(For Cylinder Head Cover)
11201	90210-08020	Washer, Seal(For Cylinder Head Cover)
11213	11213-15050	Gasket, Cylinder Head Cover
12108	12180-13030	Cap Sub-Assy, Oil Filler
12108	12180-55010	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
9211260855	92112-60855	New Genuine Part

OEM	Part name	Category
11101-19255	Head Sub-Assy, Cylinder	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
11115-15072	Gasket, Cylinder Head	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
11115-15073	Gasket, Cylinder Head	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
11122-15030	Bush, Intake Valve Guide	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
11123-15030	Bush, Intake Valve Guide	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
11131-15040	Seat, Intake Valve	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
11132-15040	Seat, Intake Valve	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
11135-15030	Seat, Exhaust Valve	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
11136-15030	Seat, Exhaust Valve	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
11183-15020	Plug, Semicircular	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
11193-15010	Gasket(For Spark Plug Tube)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
11210-16100	Cover Sub-Assy, Cylinder Head	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
11213-15050	Gasket, Cylinder Head Cover	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
12180-13030	Cap Sub-Assy, Oil Filler	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
12180-55010	Cap Sub-Assy, Oil Filler	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90109-06080	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90109-10058	Bolt(For Cylinder Head Set)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90109-10059	Bolt(For Cylinder Head Set)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90116-06073	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90116-06074	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90176-06008	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90201-10344	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90210-08020	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90253-09001	Pin, Ring W/head	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90311-35013	Seal, Oil(For Camshaft Setting)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90311-35022	Seal, Oil(For Camshaft Setting)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90430-20004	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90910-02120	Bolt(For Cylinder Head Set)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
90910-02121	Bolt(For Cylinder Head Set)	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
92112-60855	New Genuine Part	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)
96411-42800	Plug, Tight, No.1	Cylinder Head ([05.1988 - ] (8805- )4AF#,5AF#)

Source: Public OEM parts-catalog data
Variants: 2 / 21
Category: 194
Collected: 2026-08-02
