AT160

Toyota CARINA · 1985 · 4,904 parts · 180 categories

4,904 items

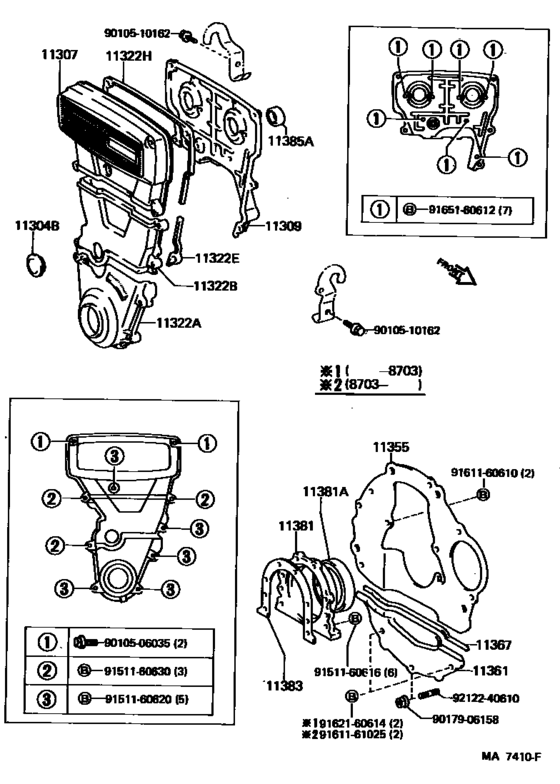

Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU) 44

#	OEM	Part name
11304	90950-01391	Plug, Hole
11304	90950-01535	Plug, Semi Circular(For Chain Cover No.2)
11307	11304-16020	Cover, Sub-Assy, Timing Belt, No.3
11307	11304-16030	Cover, Sub-Assy, Timing Belt, No.3
11309	11325-16011	Cover Sub-Assy, Timing Belt, No.4
11309	11325-16020	Cover Sub-Assy, Timing Belt, No.4
11322	11302-16010	Cover, Timing Belt, No.1
11322	11302-16011	Cover, Timing Belt, No.1
11322	11303-16020	Cover, Timing Belt, No.2
11322	90109-10148	New Genuine Part
11322	11303-16021	Cover, Timing Belt, No.2
11322	90109-10099	New Genuine Part
11322	90950-01534	Plug, Semi Circular(For Chain Cover No.2)
11322	11329-16010	Gasket, Timing Belt Cover, No.2
11322	11319-16011	Gasket, Timing Belt Cover, No.3
11355	11355-15050	Plate, Rear End
11355	11355-15060	Plate, Rear End
11361	11361-15021	Cover, Flywheel Housing Under
11361	11361-16040	Cover, Flywheel Housing Under
11361	11361-16020	Cover, Flywheel Housing Under
11367	11367-15030	Gasket, Flywheel Housing Under
11381	11381-15010	Retainer, Engine Rear Oil Seal
11381	90311-70004	Seal, Engine Rear Oil
11381	90311-70007	Seal, Engine Rear Oil
11383	11383-15010	Gasket, Engine Rear Oil Seal Retainer
11383	11383-16010	Gasket, Engine Rear Oil Seal Retainer
11385	90311-35013	Seal, Oil(For Camshaft Setting)
11385	90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)
9010506035	90105-06035	New Genuine Part
9010510162	90105-10162	New Genuine Part
9010510162	91512-B1020	Bolt(For Front Transaxle Case Cover)
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9151160616	91511-60616	BOLTFLANGE
9151160616	91511-B0616	BOLT, FLANGE
9151160620	91511-60620	Bolt(For Clutch Release Bearing Hub Retainer)
9151160620	91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)
9151160630	91511-60630	BOLT
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9161161025	91611-61025	Bolt(For Transaxle & Engine Setting)
9161161025	91612-61025	Bolt (For Control Shaft Cover)
9162160614	91621-60614	Bolt(For Transaxle & Engine Setting)
9165160612	91651-60612	BOLT
9212240610	92122-40610	Bolt, Stud(For Manifold To Carburetor)

OEM	Part name	Category
11302-16010	Cover, Timing Belt, No.1	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11302-16011	Cover, Timing Belt, No.1	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11303-16020	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11303-16021	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11304-16020	Cover, Sub-Assy, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11304-16030	Cover, Sub-Assy, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11319-16011	Gasket, Timing Belt Cover, No.3	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11325-16011	Cover Sub-Assy, Timing Belt, No.4	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11325-16020	Cover Sub-Assy, Timing Belt, No.4	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11329-16010	Gasket, Timing Belt Cover, No.2	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11355-15050	Plate, Rear End	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11355-15060	Plate, Rear End	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11361-15021	Cover, Flywheel Housing Under	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11361-16020	Cover, Flywheel Housing Under	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11361-16040	Cover, Flywheel Housing Under	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11367-15030	Gasket, Flywheel Housing Under	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11381-15010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11383-15010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
11383-16010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
90105-06035	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
90105-10162	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
90109-10099	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
90109-10148	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
90311-35013	Seal, Oil(For Camshaft Setting)	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
90311-70004	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
90311-70007	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
90950-01391	Plug, Hole	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
90950-01534	Plug, Semi Circular(For Chain Cover No.2)	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
90950-01535	Plug, Semi Circular(For Chain Cover No.2)	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
91511-60616	BOLTFLANGE	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
91511-60620	Bolt(For Clutch Release Bearing Hub Retainer)	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
91511-60630	BOLT	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
91511-B0616	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
91512-B1020	Bolt(For Front Transaxle Case Cover)	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
91611-61025	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
91612-61025	Bolt (For Control Shaft Cover)	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
91621-60614	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
91651-60612	BOLT	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
92122-40610	Bolt, Stud(For Manifold To Carburetor)	Timing Gear Cover & Rear End Plate ([08.1985 - ] (8508- )4AGELU)
