AT160

Toyota CARINA · 1985 · 4,904 parts · 180 categories
AT160 ×

← Back to categories

4,904 items

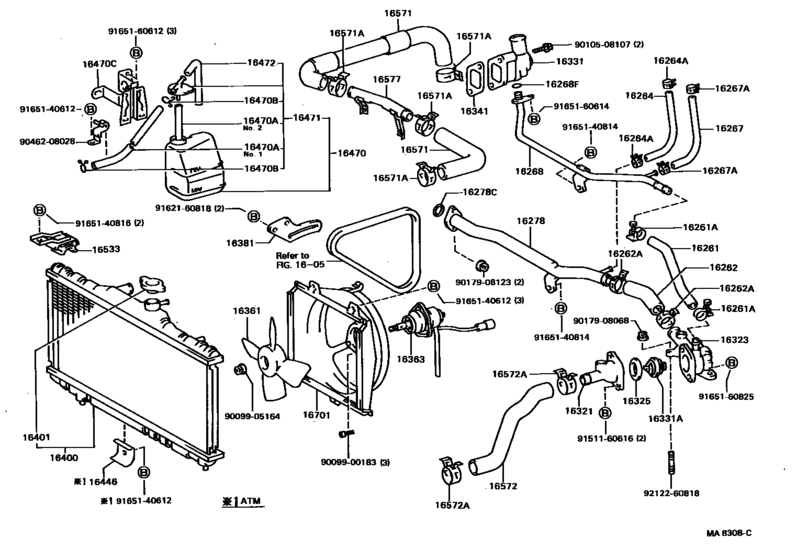

Radiator & Water Outlet ([08.1985 - ] (8508- )4AGELU) 80
#OEMPart name
16261 16261-15010 Hose, Water By-Pass
16261 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
16262 16262-15010 Hose, Water Inlet
16262 90467-34002 Clip(For Water Inlet Hose)
16262 90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16262 90467-34003 Clip(For Oil Return Hose)
16264 16264-16030 Hose, Water By-Pass, No.2
16264 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
16264 96135-51300 Clamp, Hose
16267 16267-16010 Hose, Water By-Pass, No.3
16268 16268-16030 Pipe, Water By-Pass, No.1
16268 16268-16071 Pipe, Water By-Pass, No.1
16268 16268-16070 Pipe, Water By-Pass, No.1
16268 96711-24013 Ring, O(For Water By-Pass Pipe)
16278 16278-16010 Pipe, Water By-Pass, No.2
16278 16278-16060 Pipe, Water By-Pass, No.2
16278 16278-16061 Pipe, Water By-Pass, No.2
16278 96711-24035 Ring, O(For Water Pump)
16278 96761-24035 Ring, O(For Water Pump)
16321 16321-15010 Inlet, Water
16323 16323-14010 Housing, Water Inlet
16325 16325-63010 Gasket, Water Inlet Housing, No.1
16325 16325-63011 Gasket, Water Inlet Housing, No.1
16331 16331-16030 Outlet, Water
16331 90916-03046 Thermostat
16331 90916-03060 Thermostat
16331 90916-03090 Thermostat
16341 16341-16010 Gasket, Water Outlet
16341 16341-16020 Gasket, Water Outlet
16361 16361-64010 Fan
16361 16361-15080 Fan
16363 16363-16010 Motor, Cooling Fan
16363 16363-10010 Motor, Cooling Fan
16381 16381-16030 Bar, Fan Belt Adjusting
16381 16381-16050 Bar, Fan Belt Adjusting
16400 16400-16090 Radiator Assy
16400 16400-15190 Radiator Assy
16400 16400-15200 Radiator Assy
16401 16401-63010 Cap Sub-Assy,
16446 16446-16060 Insulator, Radiator Tank
16470 16470-16050 Tank Assy, Radiator Reserve
16470 85338-73020 Hose Or Pipe(For Radiator Reserve Tank)
16470 90099-33534 Hose Or Pipe(For Radiator Reserve Tank)
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 16611-74010 Bracket(For Radiator Reserve Tank)
16471 16405-16040 Cap Sub-Assy, Reserve Tank
16472 85338-10020 Hose, Breather
16472 85338-74040 Hose(For Radiator Drain Cock)
16533 16533-16040 Support, Radiator, Upper
16533 16533-74030 Support, Radiator, Upper
16571 16571-16040 Hose, Radiator, Inlet
16571 16571-16070 Hose, Radiator, Inlet
16571 16573-16030 Hose, Radiator, Inlet
16571 90467-33002 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-16060 Hose, Radiator, Outlet
16577 16577-16020 Pipe, Radiator, No.7
16701 16711-74050 Shroud Sub-Assy, Fan
16701 16711-16060 Shroud Sub-Assy, Fan
16701 16711-15210 Shroud Sub-Assy, Fan
9009900183 90099-00183 New Genuine Part
9009905164 90099-05164 Nut
9010508107 90105-08107 New Genuine Part
9017908068 90179-08068 NUT
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9046208028 90462-08028 New Genuine Part
9151160616 91511-60616 BOLTFLANGE
9151160616 91511-B0616 BOLT, FLANGE
9162160818 91621-60818 Bolt(For Automatic Transmission Case Protector)
9162160818 91651-B0820 Bolt, Radiator Side Support Plate
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165140816 91651-40816 BOLT
9165160612 91651-60612 BOLT
9165160614 91651-60614 Bolt
9165160825 91651-60825 Bolt, Hexagon(For Steering Column Bracket)
9165160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9212260818 92122-60818 Bolt, Stud(For Water Pump Pulley Seat)
