Search › Model › AT160

AT160

Toyota CARINA · 1985 · 4,904 parts · 180 categories
AT160 ×

← Back to categories

4,904 items

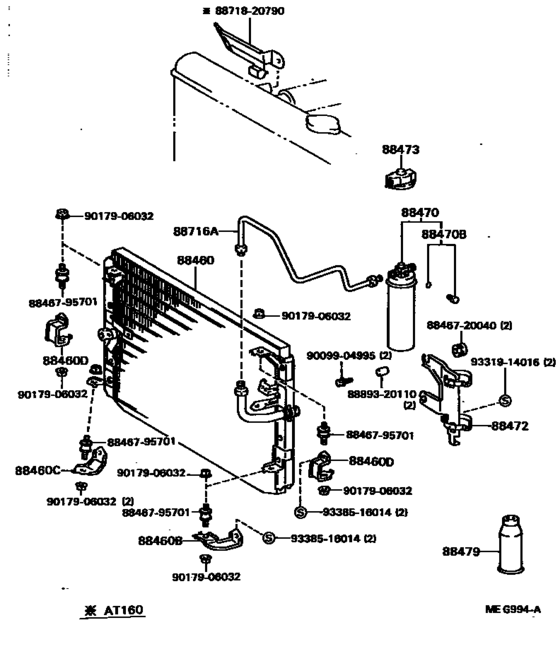

Heating & Air Conditioning - Cooler Piping ([08.1985 - ] (8508- )AT160,ST162) 54
#OEMPart name
88460 88460-20230 Condenser Assy, Cooler
88460 88688-20700 Bracket, Cooler Condenser, No.1
88460 88688-20720 Bracket, Cooler Condenser, No.2
88460 88688-20680 Bracket, Cooler Condenser, No.2
88460 88688-20790 Bracket, Cooler Condenser, No.2
88470 88470-14010 Receiver & Dryer Assy, Cooler
88470 04884-33110 New Genuine Part
88470 88475-12020 Bolt, Fuse
88472 88473-20020 Bracket, Receiver Tank, No.1
88473 88894-12111 Cap, Cooler Receiver Tank
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88590 88590-20120 Blower Assy, W/shroud
88711 88711-20510 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-20620 Hose, Cooler Refrigerant Suction, No.1
88716 88716-2B160 Pipe, Cooler Refrigerant Liquid, A
88716 88710-20110 Pipe, Cooler Refrigerant Liquid, B
88716 88716-2B180 Pipe, Cooler Refrigerant Liquid, B
88717 88717-20580 Pipe, Cooler Refrigerant Suction, A
88717 88717-20600 Pipe, Cooler Refrigerant Suction, B
88717 88717-20570 Pipe, Cooler Refrigerant Suction, C
8846712020 88467-12020 Cushion, Cooler Condenser, No.1
8846712040 88467-12040 Cushion, Cooler Condenser, No.1
8846720040 88467-20040 Insulator, Cooler Condenser Mounting
8846795701 88467-95701 Insulator, Cooler Condenser Mounting
8857832020 88578-32020 Packing A (For Cooler)
8868820690 88688-20690 Bracket, Cooler Diaphragm
8868820730 88688-20730 Bracket, Cooler Diaphragm
8871412050 88714-12050 Insulator, Cooler Refrigerant Hose, No.1
8871814480 88718-14480 Clamp(For Cooler Refrigerant Pipe), No.5
8871820680 88718-20680 Pipe, Cooler Refrigerant Suction, No.2
8871820690 88718-20690 Pipe, Cooler Refrigerant Suction, No.2
8871820700 88718-20700 Pipe, Cooler Refrigerant Suction, No.2
8871820710 88718-20710 Pipe, Cooler Refrigerant Suction, No.2
8871820740 88718-20740 Pipe, Cooler Refrigerant Suction, No.2
8871820790 88718-20790 Pipe, Cooler Refrigerant Suction, No.2
8871820810 88718-20810 Pipe, Cooler Refrigerant Suction, No.2
8871820820 88718-20820 Pipe, Cooler Refrigerant Suction, No.2
8889320110 88893-20110 Collar (for Cooler Idler Pulley)
9009120619 90091-20619 BOLT
9009904326 90099-04326 New Genuine Part
9009904326 90119-08C30 New Genuine Part
9009904995 90099-04995 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9331914016 93319-14016 New Genuine Part
9338516012 93385-16012 New Genuine Part
9338516014 93385-16014 New Genuine Part
9338516020 93385-16020 New Genuine Part
9338516020 93385-26020 New Genuine Part
9417110600 94171-10600 New Genuine Part
