AT160

Toyota CARINA · 1985 · 4,904 parts · 180 categories
AT160 ×

← Back to categories

4,904 items

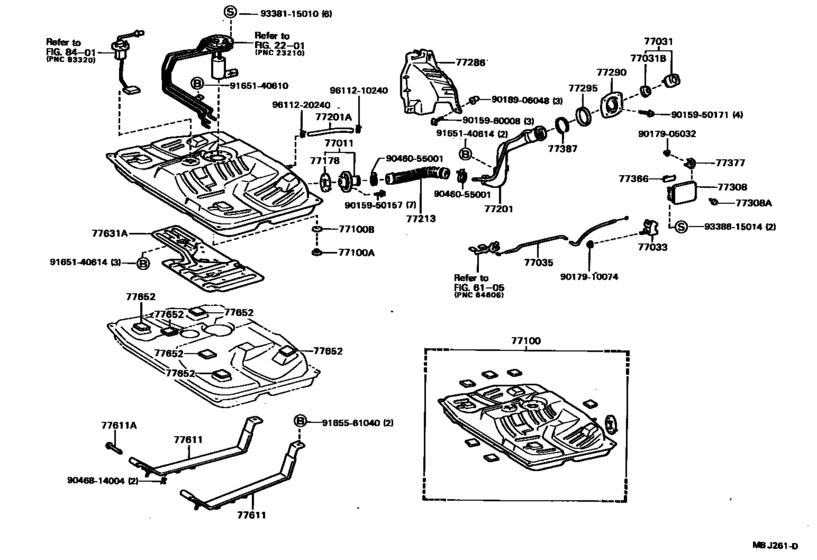

Fuel Tank & Tube ([08.1985 - ] (8508- )AT160,ST162) 95
#OEMPart name
77011 77011-20010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77011 77011-20020 Pipe Sub-Assy, Fuel Tank Filler, Lower
77031 77310-12100 Cap Assy, Fuel Tank
77031 77316-12050 Gasket (For Fuel Tank Cap)
77033 77037-12040 Lock Sub-Assy, Fuel Tank Cap
77033 77037-38010 Lock Sub-Assy, Fuel Tank Cap
77035 77035-20100 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-20933 Tank Assy, Fuel
77100 77001-20935 Tank Assy, Fuel
77100 77001-29205 Tank Assy, Fuel
77100 77001-29255 Tank Assy, Fuel
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77178 77178-20010 Gasket, Fuel Tank Filler Pipe, Lower
77201 77201-20180 Pipe Sub-Assy, Fuel Tank Inlet
77201 90445-22912 Hose, Fuel, No.1(For Fuel Tank)
77201 90445-22024 Hose, Fuel, No.1(For Fuel Tank)
77213 77213-20080 Hose, Fuel Tank Sub Inlet
77241 77251-20320 Tube, Fuel Main, No.1
77241 77251-20330 Tube, Fuel Main
77254 77261-20070 Tube, Fuel Emission, No.1
77254 77261-20071 Tube, Fuel Emission, No.1
77254 77261-20160 Tube, Fuel Tank To Canister
77254 77259-20060 Hose, Fuel, No.1 (For Emission Tube, No.1)
77254 90447-12045 Hose, Fuel, No.1 (For Emission Tube, No.1)
77254 95333-06030 Hose, Fuel
77254 95338-06030 HOSE, FUEL
77254 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77254 95337-06020 Hose, Differential Pressure Control
77254 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77266 77266-20070 Protector, Fuel Tube, No.1
77267 77267-20010 Protector, Fuel Tube, No.2
77277 77255-20190 Tube, Fuel Return, No.1
77277 77251-20200 Tube, Fuel Return - FUEL MAIN, NO.1
77277 90447-12050 Hose, Fuel, No.1(For Return Tube, No.1)
77284 77284-20031 Protector, Fuel Tube, No.3
77285 77285-20041 Clamp, Fuel Tube W/grommet, No.1
77286 77277-20090 Protector, Fuel Tank Filler Pipe
77290 77290-20010 Shield Assy, Fuel Tank Filler Pipe
77290 77290-20011 Shield Assy, Fuel Tank Filler Pipe
77295 77293-20010 Shield, Fuel Tank Filler Pipe, No.3
77295 77293-32010 Shield, Fuel Filler Pipe
77298 77298-20010 Clamp, Fuel Tube W/grommet, No.4
77299 77299-20010 Clamp, Fuel Tube W/grommet, No.5
77308 77350-20060 Cover Sub-Assy, Fuel Inlet Box
77308 90541-08003 Cushion(For Inspection Opening)
77366 77360-24010 Retainer, Fuel Inlet Cushion
77377 77377-24010 Retainer, Fuel Filler Opening Lid Lock
77387 77391-16011 Ring, Fuel Inlet Box
77387 77391-32010 Ring, Fuel Inlet Box
77611 77601-20060 Band, Fuel Tank
77611 77601-20080 Band Sub-Assy, Fuel Tank, No.1 Rh
77611 77602-20090 Band, Fuel Tank
77611 77602-20110 Band Sub-Assy, Fuel Tank, No.1 Lh
77611 90240-08020 Pin (For Fuel Tank Band)
77631 77631-20040 Protector, Fuel Tank, Lower Center
77652 77651-20050 Cushion, Fuel Tank, No.1
77740 77704-20230 Canister Assy, Charcoal
77740 77704-60050 Canister Assy, Charcoal
77740 95411-19960 Hose, Vacuum, No.2 (For Front Drive Shift)
77740 90999-92003 Hose, Breather (For Transfer Case)
77740 77264-20050 Tube, Fuel, No.1(For Charcoal Canister)
77754 77754-12020 Hose, Charcoal Canister Outlet, No.1
7729520010 77295-20010 Grommet, Fuel Tube
9015950157 90159-50157 SCREW WWASHER
9015950171 90159-50171 New Genuine Part
9015960008 90159-60008 SCREW
9017905032 90179-05032 NUT
9017905032 90179-05011 NUT
9017910074 90179-10074 New Genuine Part
9018906048 90189-06048 GROMET
9046055001 90460-55001 New Genuine Part
9046055001 96111-20550 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9046400082 90464-00082 Clamp(For Resistive Cord)
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9046814004 90468-14004 Union, Auxiliary Fuel Band
9048001062 90480-01062 New Genuine Part
9048017002 90480-17002 New Genuine Part
9095901148 90959-01148 New Genuine Part
9165140610 91651-40610 RIVET
9165140614 91651-40614 Bolt
9165140618 91651-40618 New Genuine Part
9165561040 91655-61040 New Genuine Part
9165561040 91651-61035 BOLT
9166140614 91661-40614 New Genuine Part
9166140614 91661-A0614 New Genuine Part
9338115010 93381-15010 SCREW
9338615014 93386-15014 New Genuine Part
9611210240 96112-10240 Clamp Or Clip, Hose(For Oil Cooler Hose)
9611220240 96112-20240 New Genuine Part
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
