Search › Model › AT160

AT160

Toyota CARINA · 1985 · 4,904 parts · 180 categories

4,904 items

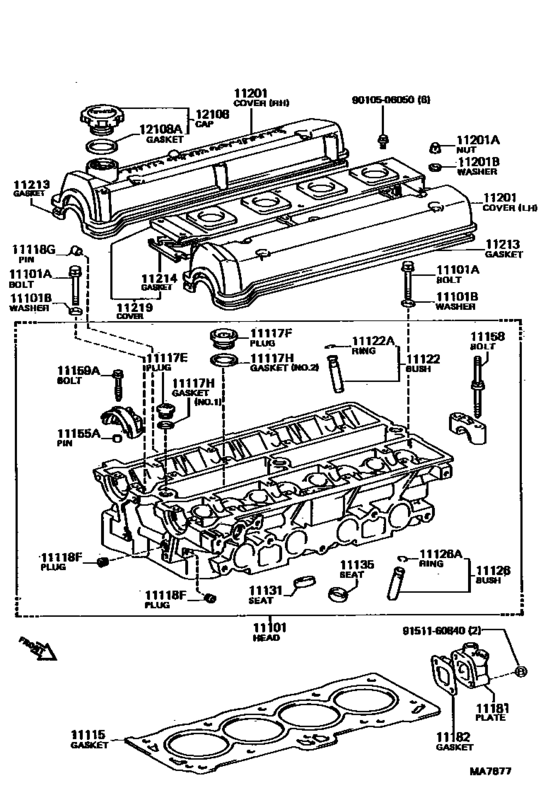

Cylinder Head ([08.1985 - ] (8508- )4AGELU) 51

#	OEM	Part name
11101	11101-16010	Head Sub-Assy, Cylinder
11101	11101-16030	Head Sub-Assy, Cylinder
11101	90109-10058	Bolt(For Cylinder Head Set)
11101	90910-02120	Bolt(For Cylinder Head Set)
11101	90109-10059	Bolt(For Cylinder Head Set)
11101	90910-02121	Bolt(For Cylinder Head Set)
11101	90201-10344	Washer, Plate(For Cylinder Head Set)
11115	11115-16030	Gasket, Cylinder Head
11115	11115-16070	Gasket, Cylinder Head
11117	90341-24002	Plug, W/head Straight Screw, No.1
11117	90341-24008	Plug, W/head Straight Screw, No.1
11117	90341-32070	Plug, W/head Taper Screw, No.1
11117	90430-24002	Gasket(For Water Hole)
11117	90430-24007	Gasket(For Water Hole)
11117	90430-33133	Gasket(For Cylinder Head Screw Plug)
11118	90344-51002	Plug, W/head Taper Screw, No.1
11118	90254-11002	Pin, Slotted Spring, No.1
11122	11122-16020	Bush, Intake Valve Guide
11122	11123-16020	Bush, Intake Valve Guide
11122	90520-10004	Ring, Shaft Snap (For Valve Guide Bush)
11131	11131-16010	Seat, Intake Valve
11131	11132-16010	Seat, Intake Valve
11135	11135-16010	Seat, Exhaust Valve
11135	11136-16010	Seat, Exhaust Valve
11155	90253-09001	Pin, Ring W/head
11158	90109-06079	Bolt, Stud(For Head To Cylinder Head Cover)
11159	90109-06080	Bolt, Stud(For Head To Cylinder Head Cover)
11181	11181-16070	Plate, Cylinder Head, Rear
11182	11182-16010	Gasket, Cylinder Head Rear Plate
11182	11182-16020	Gasket, Cylinder Head Rear Plate
11201	11210-16010	Cover Sub-Assy, Cylinder Head
11201	11210-16120	Cover Sub-Assy, Cylinder Head
11201	11210-16090	Cover Sub-Assy, Cylinder Head
11201	11210-16140	Cover Sub-Assy, Cylinder Head
11201	11212-16010	Cover Sub-Assy, Cylinder Head
11201	11212-16050	Cover Sub-Assy, Cylinder Head
11201	90176-06012	Nut, Cap(For Cylinder Head Cover)
11201	90210-06008	Washer, Seal(For Cylinder Head Cover)
11201	90210-06013	Washer, Seal(For Cylinder Head Cover)
11213	11213-16010	Gasket, Cylinder Head Cover
11214	11214-16020	Gasket, Cylinder Head Cover, No.2
11219	11219-16030	Cover, Cylinder Head, No.3
12108	12180-13030	Cap Sub-Assy, Oil Filler
12108	12180-55010	Cap Sub-Assy, Oil Filler
12108	12180-70010	Cap Sub-Assy, Oil Filler
12108	12180-E0010	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
9010506050	90105-06050	New Genuine Part
9010506050	91621-G0612	New Genuine Part
9151160840	91511-60840	Bolt(For Alternator)
9151160840	91511-J0840	Bolt(For Alternator)

OEM	Part name	Category
11101-16010	Head Sub-Assy, Cylinder	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11101-16030	Head Sub-Assy, Cylinder	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11115-16030	Gasket, Cylinder Head	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11115-16070	Gasket, Cylinder Head	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11122-16020	Bush, Intake Valve Guide	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11123-16020	Bush, Intake Valve Guide	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11131-16010	Seat, Intake Valve	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11132-16010	Seat, Intake Valve	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11135-16010	Seat, Exhaust Valve	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11136-16010	Seat, Exhaust Valve	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11181-16070	Plate, Cylinder Head, Rear	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11182-16010	Gasket, Cylinder Head Rear Plate	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11182-16020	Gasket, Cylinder Head Rear Plate	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11210-16010	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11210-16090	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11210-16120	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11210-16140	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11212-16010	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11212-16050	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11213-16010	Gasket, Cylinder Head Cover	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11214-16020	Gasket, Cylinder Head Cover, No.2	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
11219-16030	Cover, Cylinder Head, No.3	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
12180-13030	Cap Sub-Assy, Oil Filler	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
12180-55010	Cap Sub-Assy, Oil Filler	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
12180-70010	Cap Sub-Assy, Oil Filler	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
12180-E0010	Cap Sub-Assy, Oil Filler	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90105-06050	New Genuine Part	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90109-06079	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90109-06080	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90109-10058	Bolt(For Cylinder Head Set)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90109-10059	Bolt(For Cylinder Head Set)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90176-06012	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90201-10344	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90210-06008	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90210-06013	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90253-09001	Pin, Ring W/head	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90254-11002	Pin, Slotted Spring, No.1	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90341-24002	Plug, W/head Straight Screw, No.1	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90341-24008	Plug, W/head Straight Screw, No.1	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90341-32070	Plug, W/head Taper Screw, No.1	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90344-51002	Plug, W/head Taper Screw, No.1	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90430-24002	Gasket(For Water Hole)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90430-24007	Gasket(For Water Hole)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90430-33133	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90520-10004	Ring, Shaft Snap (For Valve Guide Bush)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90910-02120	Bolt(For Cylinder Head Set)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
90910-02121	Bolt(For Cylinder Head Set)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
91511-60840	Bolt(For Alternator)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
91511-J0840	Bolt(For Alternator)	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
91621-G0612	New Genuine Part	Cylinder Head ([08.1985 - ] (8508- )4AGELU)
