AT151

Toyota CARINA · 1984 · 5,547 parts · 198 categories
AT151 ×

← Back to categories

5,547 items

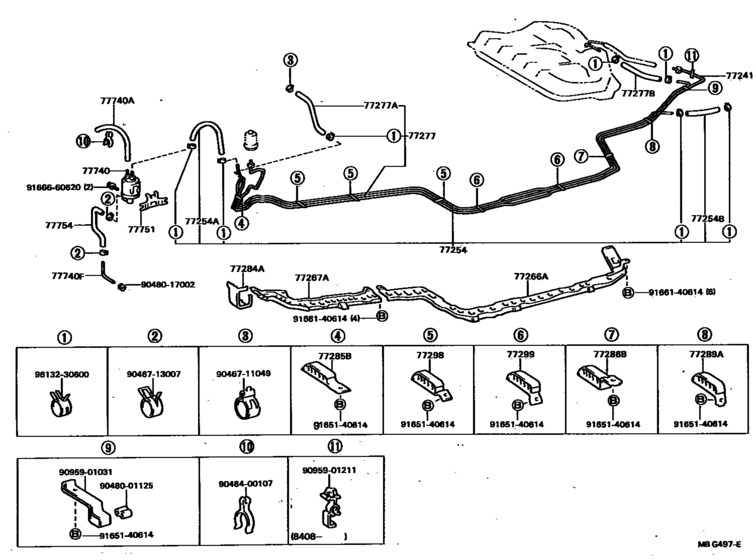

Fuel Tank & Tube ([05.1984 - ] (8405- )AT151,ST150) 44
#OEMPart name
77241 77251-20260 Tube, Fuel Main, No.1
77241 77251-20262 Tube, Fuel Main, No.1
77254 77019-20120 Tube, Fuel Emission, No.1
77254 77019-20121 Tube, Fuel Emission, No.1
77254 90445-12194 Hose, Fuel, No.1 (For Emission Tube, No.1)
77254 95333-06030 Hose, Fuel
77254 95332-06030 Hose(For Carburetor)
77266 77266-20050 Protector, Fuel Tube, No.1
77267 77267-20010 Protector, Fuel Tube, No.2
77277 77207-20070 Tube, Fuel Return, No.1
77277 90447-12047 Hose, Fuel, No.1(For Return Tube, No.1)
77277 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77277 95337-06020 Hose, Differential Pressure Control
77277 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77284 77284-20030 Protector, Fuel Tube, No.3
77284 77284-20031 Protector, Fuel Tube, No.3
77285 77285-20041 Clamp, Fuel Tube W/grommet, No.1
77286 77286-32020 Clamp, Fuel Tube W/grommet, No.2
77289 77289-32020 Clamp, Fuel Tube W/grommet, No.3
77298 77298-20010 Clamp, Fuel Tube W/grommet, No.4
77299 77299-20010 Clamp, Fuel Tube W/grommet, No.5
77740 77704-20230 Canister Assy, Charcoal
77740 77704-60050 Canister Assy, Charcoal
77740 95411-19960 Hose, Vacuum, No.2 (For Front Drive Shift)
77740 90999-92003 Hose, Breather (For Transfer Case)
77740 77264-20030 Tube, Fuel, No.1(For Charcoal Canister)
77751 77751-32010 Bracket, Charcoal Canister Base
77754 77754-12020 Hose, Charcoal Canister Outlet, No.1
9046400107 90464-00107 New Genuine Part
9046711049 90467-11049 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711049 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9048001125 90480-01125 New Genuine Part
9048017002 90480-17002 New Genuine Part
9095901031 90959-01031 New Genuine Part
9095901211 90959-01211 New Genuine Part
9165140614 91651-40614 Bolt
9166140614 91661-40614 New Genuine Part
9166140614 91661-A0614 New Genuine Part
9166660620 91666-60620 New Genuine Part
9166660620 91661-60616 BOLT
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
