Search › Model › AT151

AT151

Toyota CARINA · 1984 · 5,547 parts · 198 categories

5,547 items

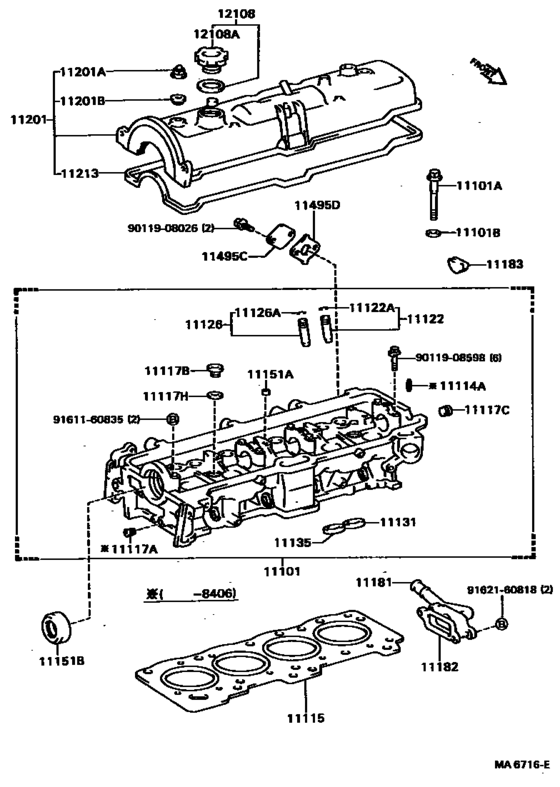

Cylinder Head ([05.1984 - ] (8405- )4AELU..ST) 52

#	OEM	Part name
11101	11101-15070	Head Sub-Assy, Cylinder
11101	90109-10025	Bolt(For Cylinder Head Set)
11101	90201-10344	Washer, Plate(For Cylinder Head Set)
11114	90254-03003	Pin, Straight
11115	11115-16020	Gasket, Cylinder Head
11115	11115-16050	Gasket, Cylinder Head
11117	90344-51002	Plug, W/head Taper Screw, No.1
11117	90341-20002	Plug, W/head Taper Screw, No.1
11117	90344-54002	Plug, W/head Taper Screw, No.3
11117	90430-20004	Gasket(For Cylinder Head Screw Plug)
11122	11122-15011	Bush, Intake Valve Guide
11122	11122-15020	Bush, Intake Valve Guide
11122	11123-15011	Bush, Intake Valve Guide
11122	11123-15020	Bush, Intake Valve Guide
11122	90520-10001	Ring, Shaft Snap (For Valve Guide Bush)
11126	11126-15011	Bush, Exhaust Valve Guide
11126	11126-15020	Bush, Intake Valve Guide
11126	11127-15011	Bush, Exhaust Valve Guide
11126	11127-15020	Bush, Intake Valve Guide
11131	11131-15020	Seat, Intake Valve
11131	11132-15020	Seat, Intake Valve
11135	11135-15020	Seat, Exhaust Valve
11135	11135-15021	Seat, Exhaust Valve
11135	11136-15020	Seat, Exhaust Valve
11135	11136-15021	Seat, Exhaust Valve
11151	90253-11021	Pin, Ring
11151	90311-35013	Seal, Oil(For Camshaft Setting)
11151	90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)
11181	11181-16020	Plate, Cylinder Head, Rear
11182	11182-15011	Gasket, Cylinder Head Rear Plate
11182	11182-15012	Gasket, Cylinder Head Rear Plate
11183	11183-15010	Plug, Semicircular
11201	11210-19025	Cover Sub-Assy, Cylinder Head
11201	90176-08007	Nut, Cap(For Cylinder Head Cover)
11201	90210-09001	Washer, Seal(For Cylinder Head Cover)
11201	90210-09019	Washer, Seal(For Cylinder Head Cover)
11213	11213-15020	Gasket, Cylinder Head Cover
11495	11494-16010	Plug, Plate(For Cylinder Head)
11495	11496-16010	Gasket(For Cylinder Head)
12108	12180-13030	Cap Sub-Assy, Oil Filler
12108	12180-55010	Cap Sub-Assy, Oil Filler
12108	12180-62010	Cap Sub-Assy, Oil Filler
12108	12180-65011	Cap Sub-Assy, Oil Filler
12108	12180-70010	Cap Sub-Assy, Oil Filler
12108	12180-E0010	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
9011908026	90119-08026	Bolt(For Transmission Input Damper Cover & Flywheel)
9011908026	90119-08079	Bolt(For Transmission Input Damper Cover & Flywheel)
9011908598	90119-08598	New Genuine Part
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9162160818	91621-60818	Bolt(For Automatic Transmission Case Protector)
9162160818	91651-B0820	Bolt, Radiator Side Support Plate

OEM	Part name	Category
11101-15070	Head Sub-Assy, Cylinder	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11115-16020	Gasket, Cylinder Head	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11115-16050	Gasket, Cylinder Head	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11122-15011	Bush, Intake Valve Guide	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11122-15020	Bush, Intake Valve Guide	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11123-15011	Bush, Intake Valve Guide	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11123-15020	Bush, Intake Valve Guide	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11126-15011	Bush, Exhaust Valve Guide	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11126-15020	Bush, Intake Valve Guide	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11127-15011	Bush, Exhaust Valve Guide	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11127-15020	Bush, Intake Valve Guide	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11131-15020	Seat, Intake Valve	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11132-15020	Seat, Intake Valve	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11135-15020	Seat, Exhaust Valve	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11135-15021	Seat, Exhaust Valve	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11136-15020	Seat, Exhaust Valve	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11136-15021	Seat, Exhaust Valve	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11181-16020	Plate, Cylinder Head, Rear	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11182-15011	Gasket, Cylinder Head Rear Plate	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11182-15012	Gasket, Cylinder Head Rear Plate	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11183-15010	Plug, Semicircular	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11210-19025	Cover Sub-Assy, Cylinder Head	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11213-15020	Gasket, Cylinder Head Cover	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11494-16010	Plug, Plate(For Cylinder Head)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
11496-16010	Gasket(For Cylinder Head)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
12180-13030	Cap Sub-Assy, Oil Filler	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
12180-55010	Cap Sub-Assy, Oil Filler	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
12180-62010	Cap Sub-Assy, Oil Filler	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
12180-65011	Cap Sub-Assy, Oil Filler	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
12180-70010	Cap Sub-Assy, Oil Filler	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
12180-E0010	Cap Sub-Assy, Oil Filler	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90109-10025	Bolt(For Cylinder Head Set)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90119-08026	Bolt(For Transmission Input Damper Cover & Flywheel)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90119-08079	Bolt(For Transmission Input Damper Cover & Flywheel)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90119-08598	New Genuine Part	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90176-08007	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90201-10344	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90210-09001	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90210-09019	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90253-11021	Pin, Ring	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90254-03003	Pin, Straight	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90311-35013	Seal, Oil(For Camshaft Setting)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90344-51002	Plug, W/head Taper Screw, No.1	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90344-54002	Plug, W/head Taper Screw, No.3	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90430-20004	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
90520-10001	Ring, Shaft Snap (For Valve Guide Bush)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
91621-60818	Bolt(For Automatic Transmission Case Protector)	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)
91651-B0820	Bolt, Radiator Side Support Plate	Cylinder Head ([05.1984 - ] (8405- )4AELU..ST)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 198
Collected: 2026-08-02
