Search › Model › ASV51
ASV51

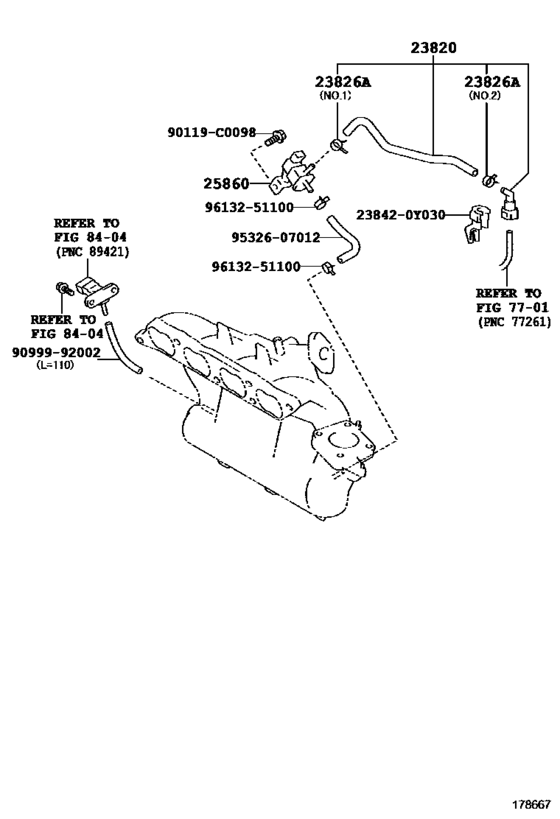

Vacuum Piping ([01.2015 - ] (1501- )6ARFSE) 9
| # | OEM | Part name |
|---|---|---|
| 23820 | 23820-0V200 | Hose Assy, Fuel Vapor Feed |
| 23826 | 90466-C0012 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 23826 | 90466-C0037 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 25860 | 25860-0V150 | Valve Assy, Vacuum Switching, No.1 |
| 90119 | 90119-C0098 | New Genuine Part |
| 238420 | 23842-0Y030 | Clamp, Fuel Pipe, No.1(For Efi) |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| 9532607012 | 95326-07012 | Hose, Fuel Vapor Feed, No.1 |
| 9613251100 | 96132-51100 | Clip (For Hose) |
| OEM | Part name | Category |
|---|---|---|
| 23820-0V200 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([01.2015 - ] (1501- )6ARFSE) |
| 23842-0Y030 | Clamp, Fuel Pipe, No.1(For Efi) | Vacuum Piping ([01.2015 - ] (1501- )6ARFSE) |
| 25860-0V150 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([01.2015 - ] (1501- )6ARFSE) |
| 90119-C0098 | New Genuine Part | Vacuum Piping ([01.2015 - ] (1501- )6ARFSE) |
| 90466-C0012 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([01.2015 - ] (1501- )6ARFSE) |
| 90466-C0037 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([01.2015 - ] (1501- )6ARFSE) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([01.2015 - ] (1501- )6ARFSE) |
| 95326-07012 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([01.2015 - ] (1501- )6ARFSE) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([01.2015 - ] (1501- )6ARFSE) |
