| 32000-33150 |
Converter Assy, Torque |

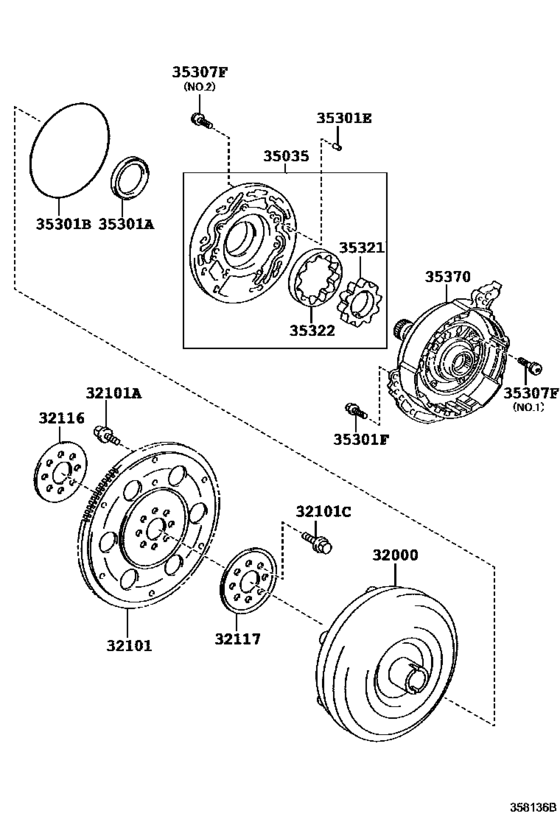

Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 32000-33151 |
Converter Assy, Torque |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 32101-06060 |
Gear Sub-Assy, Drive Plate & Ring |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 32101-33030 |
Gear Sub-Assy, Drive Plate & Ring |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 32101-73010 |
Gear Sub-Assy, Drive Plate & Ring |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 32116-20050 |
Spacer, Drive Plate, Front |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 32117-06010 |
Spacer, Drive Plate, Rear |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 32117-20060 |
Spacer, Drive Plate, Rear |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 35035-33050 |
Body Sub-Assy, Fr Oil Pump & Gear |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 35321-33160 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 35321-33170 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 35321-33180 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 35321-33190 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 35322-33160 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 35322-33170 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 35322-33180 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 35322-33190 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 35370-33060 |
Shaft Assy, Stator |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 35697-33010 |
Ring, O (For Front Oil Pump Body) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 90105-12384 |
Bolt, Flywheel Setting |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 90109-09001 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 90119-09025 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 90148-60067 |
Bolt (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 90148-60068 |
Bolt (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 90250-08052 |
Pin, Straight (For Front Oil Pump) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 90311-43010 |
Seal, Oil (For Front Oil Pump) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 91551-80835 |
Bolt (For Front Oil Pump Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
