Search › Model › ASV51
ASV51

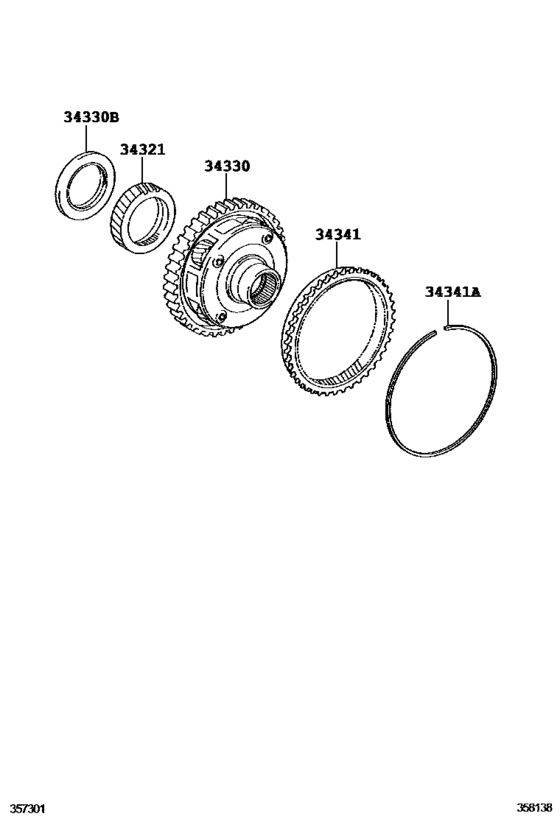

Overdrive Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) 5
| # | OEM | Part name |
|---|---|---|
| 34321 | 34321-73010 | Gear, Underdrive Planetary Sun |
| 34330 | 34330-33050 | Gear Assy, Underdrive Planetary |
| 34330 | 90374-57006 | Bearing, Thrust Needle Roller |
| 34341 | 34341-33040 | Gear, Underdrive Planetary Ring |
| 34341 | 90520-99104 | Ring, Hole Snap (For Underdrive Planetary Ring) |
| OEM | Part name | Category |
|---|---|---|
| 34321-73010 | Gear, Underdrive Planetary Sun | Overdrive Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 34330-33050 | Gear Assy, Underdrive Planetary | Overdrive Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 34341-33040 | Gear, Underdrive Planetary Ring | Overdrive Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 90374-57006 | Bearing, Thrust Needle Roller | Overdrive Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
| 90520-99104 | Ring, Hole Snap (For Underdrive Planetary Ring) | Overdrive Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) |
