Search › Model › ASV51

ASV51

Toyota CAMRY-VISTA-AURION · 2015 · 3,372 parts · 185 categories

3,372 items

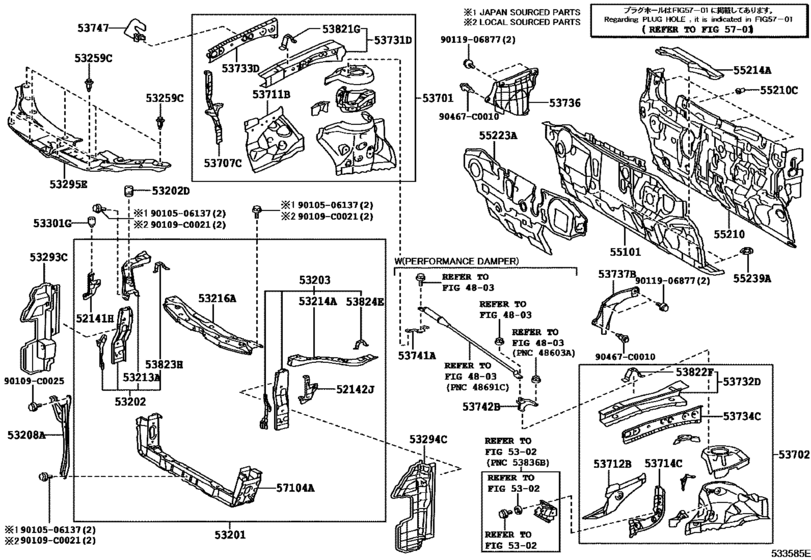

Front Fender Apron & Dash Panel ([12.2011 - ] (1112- )) 50

#	OEM	Part name
52141	52141-06120	Arm, Front Bumper, Upper Rh
52142	52142-06100	Arm, Front Bumper, Upper Lh
53201	53201-06241	Support Sub-Assy, Radiator
53202	53202-06150	Support Sub-Assy, Radiator, Rh
53202	90541-C0001	Cushion, Radiator Support
53203	53203-06190	Support Sub-Assy, Radiator, Lh
53208	53208-06101	Support Sub-Assy, Hood Lock
53213	53213-06120	Support, Radiator, Upper Rh
53214	53214-06140	Support, Radiator, Upper Lh
53216	53216-06150	Support, Radiator, Upper
53259	90467-07217	Clip, Radiator Support To Frame Seal
53259	90467-C0009	Clip, Radiator Support To Frame Seal
53293	53293-06370	Deflector, Radiator Side, Rh
53294	53294-06370	Deflector, Radiator Side, Lh
53295	53295-06140	Seal, Cool Air Intake Duct
53301	90541-09128	Cushion(For Back Door Panel)
53701	53701-06190	Apron Sub-Assy, Front Fender, Rh
53702	53702-06170	Apron Sub-Assy, Front Fender, Lh
53707	53707-06050	Extension Sub-Assy, Front Fender Apron, Front Rh
53711	53711-06140	Apron, Front Fender, Front Rh
53712	53712-06100	Apron, Front Fender, Front Lh
53714	53714-06110	Extension, Front Fender Apron, Front Lh
53731	53731-06906	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-06905	Member, Front Apron To Cowl Side, Upper Lh
53733	53733-06110	Member, Front Apron To Cowl Side, Lower Front Rh
53734	53734-06110	Member, Front Apron To Cowl Side, Lower Front Lh
53736	53736-06060	Seal, Front Fender Apron, Rh
53737	53737-06070	Seal, Front Fender Apron, Lh
53741	53741-06010	Plate, Fender Apron Reinforce, Rh
53742	53742-06010	Plate, Fender Apron Reinforce, Lh
53747	53747-06040	Plate, Air Sealed, Rh
53821	53821-06080	Bracket, Front Fender, Rear Rh
53822	53822-06080	Bracket, Front Fender, Rear Lh
53823	53823-06080	Guset, Front Fender, Rh
53824	53824-06080	Gusset, Front Fender, Lh
55101	55101-06510	Panel Sub-Assy, Dash
55210	55210-06311	Insulator Assy, Dash Panel
55210	55210-06312	Insulator Assy, Dash Panel
55210	55210-06313	Insulator Assy, Dash Panel
55210	90467-06197	Clip
55214	55214-06080	Pad, Dash Panel Insulator, No.2
55223	55223-06350	Insulator, Dash Panel, Outer
55223	55223-06351	Insulator, Dash Panel, Outer
55239	55239-06030	Plate, Dash Panel Insulator, No.3
57104	57104-06051	Member Sub-Assy, Front Cross
90109	90109-C0021	New Genuine Part
90109	90109-C0025	New Genuine Part
90467	90467-C0010	Clip, Cowl Top Ventilator Louver
9010506137	90105-06137	BOLT, WASHER BASED H
9011906877	90119-06877	BOLT WWASHER

OEM	Part name	Category
52141-06120	Arm, Front Bumper, Upper Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
52142-06100	Arm, Front Bumper, Upper Lh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53201-06241	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53202-06150	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53203-06190	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53208-06101	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53213-06120	Support, Radiator, Upper Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53214-06140	Support, Radiator, Upper Lh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53216-06150	Support, Radiator, Upper	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53293-06370	Deflector, Radiator Side, Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53294-06370	Deflector, Radiator Side, Lh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53295-06140	Seal, Cool Air Intake Duct	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53701-06190	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53702-06170	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53707-06050	Extension Sub-Assy, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53711-06140	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53712-06100	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53714-06110	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53731-06906	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53732-06905	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53733-06110	Member, Front Apron To Cowl Side, Lower Front Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53734-06110	Member, Front Apron To Cowl Side, Lower Front Lh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53736-06060	Seal, Front Fender Apron, Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53737-06070	Seal, Front Fender Apron, Lh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53741-06010	Plate, Fender Apron Reinforce, Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53742-06010	Plate, Fender Apron Reinforce, Lh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53747-06040	Plate, Air Sealed, Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53821-06080	Bracket, Front Fender, Rear Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53822-06080	Bracket, Front Fender, Rear Lh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53823-06080	Guset, Front Fender, Rh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
53824-06080	Gusset, Front Fender, Lh	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
55101-06510	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
55210-06311	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
55210-06312	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
55210-06313	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
55214-06080	Pad, Dash Panel Insulator, No.2	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
55223-06350	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
55223-06351	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
55239-06030	Plate, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
57104-06051	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
90105-06137	BOLT, WASHER BASED H	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
90109-C0021	New Genuine Part	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
90109-C0025	New Genuine Part	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
90119-06877	BOLT WWASHER	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
90467-06197	Clip	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
90467-07217	Clip, Radiator Support To Frame Seal	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
90467-C0009	Clip, Radiator Support To Frame Seal	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
90467-C0010	Clip, Cowl Top Ventilator Louver	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
90541-09128	Cushion(For Back Door Panel)	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
90541-C0001	Cushion, Radiator Support	Front Fender Apron & Dash Panel ([12.2011 - ] (1112- ))
