Search › Model › ASV51

ASV51

Toyota CAMRY-VISTA-AURION · 2015 · 3,372 parts · 185 categories

3,372 items

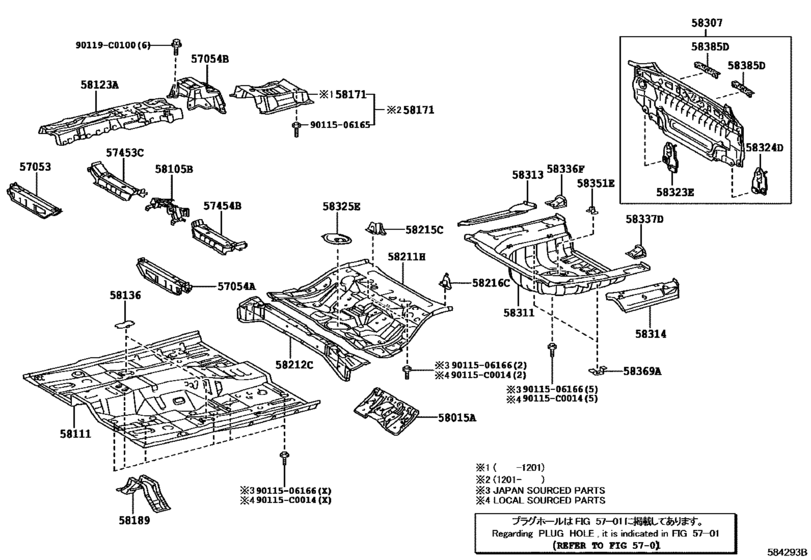

Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#) 32

#	OEM	Part name
57053	57053-06010	Reinforcement Sub-Assy, Front Floor Cross Member, Rh - FRONT FLOOR CROSS, RH
57054	57054-06020	Reinforcement Sub-Assy, Front Floor Cross Member, Lh - FRONT FLOOR CROSS, LH
57054	57054-06060	Reinforcet Sub-Assy, Cross Member Floor, No.4
57453	57453-06080	Member, Front Floor Cross Side, Rh
57454	57454-06080	Member, Front Floor Cross Side, Lh
58015	58015-06090	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58105	58105-06051	Panel Sub-Assy, Front Floor Rear Upper Sub
58111	58111-06121	Pan, Front Floor
58123	58013-06092	Support, Shift & Select Lever
58136	58136-06060	Cover, Front Floor Hole
58171	58171-06082	Reinforcement, Parking Brake Base
58189	58189-06080	Reinforcement, Exhaust Pipe Clamp Bracket
58211	58211-06140	Pan, Center Floor
58212	58212-06060	Pan, Center Floor, Front
58215	58215-06050	Reinforcement, Center Floor Panel, No.2 Rh
58216	58216-06050	Reinforcement, Center Floor Panel, No.2 Lh
58307	58307-06170	Panel Sub-Assy, Body Lower Back
58311	58311-06141	Pan, Rear Floor
58313	58313-06160	Panel, Rear Floor Side, Rh
58314	58314-06140	Panel, Rear Floor Side, Lh
58323	58323-06060	Reinforcement, Rear Bumper Arm Support, Rh
58324	58324-06060	Reinforcement, Rear Bumper Arm Support, Lh
58325	58325-06040	Cover, Rear Floor Service Hole
58336	58336-06060	Reinforcement, Rear Floor Pan, Rh
58337	58337-06050	Reinforcement, Rear Floor Pan, Lh
58351	58351-06020	Bracket Sub-Assy, Spare Wheel Clamp
58369	58369-06030	Bracket, Fuel Tube, No.3
58385	58385-06100	Bracket, Rear Bumper Cover
90115	90115-C0014	Bolt, Weld(For Front Floor Pan)
90119	90119-C0100	New Genuine Part
9011506165	90115-06165	New Genuine Part
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)

OEM	Part name	Category
57053-06010	Reinforcement Sub-Assy, Front Floor Cross Member, Rh - FRONT FLOOR CROSS, RH	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
57054-06020	Reinforcement Sub-Assy, Front Floor Cross Member, Lh - FRONT FLOOR CROSS, LH	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
57054-06060	Reinforcet Sub-Assy, Cross Member Floor, No.4	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
57453-06080	Member, Front Floor Cross Side, Rh	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
57454-06080	Member, Front Floor Cross Side, Lh	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58013-06092	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58015-06090	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58105-06051	Panel Sub-Assy, Front Floor Rear Upper Sub	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58111-06121	Pan, Front Floor	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58136-06060	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58171-06082	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58189-06080	Reinforcement, Exhaust Pipe Clamp Bracket	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58211-06140	Pan, Center Floor	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58212-06060	Pan, Center Floor, Front	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58215-06050	Reinforcement, Center Floor Panel, No.2 Rh	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58216-06050	Reinforcement, Center Floor Panel, No.2 Lh	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58307-06170	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58311-06141	Pan, Rear Floor	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58313-06160	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58314-06140	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58323-06060	Reinforcement, Rear Bumper Arm Support, Rh	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58324-06060	Reinforcement, Rear Bumper Arm Support, Lh	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58325-06040	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58336-06060	Reinforcement, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58337-06050	Reinforcement, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58351-06020	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58369-06030	Bracket, Fuel Tube, No.3	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
58385-06100	Bracket, Rear Bumper Cover	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
90115-06165	New Genuine Part	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
90115-C0014	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
90119-C0100	New Genuine Part	Floor Pan & Lower Back Panel ([12.2011 - ] FLOOR PANEL (1112- )ACV51,ASV5#)
