ASV51

Toyota CAMRY-VISTA-AURION · 2015 · 3,372 parts · 185 categories

← Back to categories

3,372 items

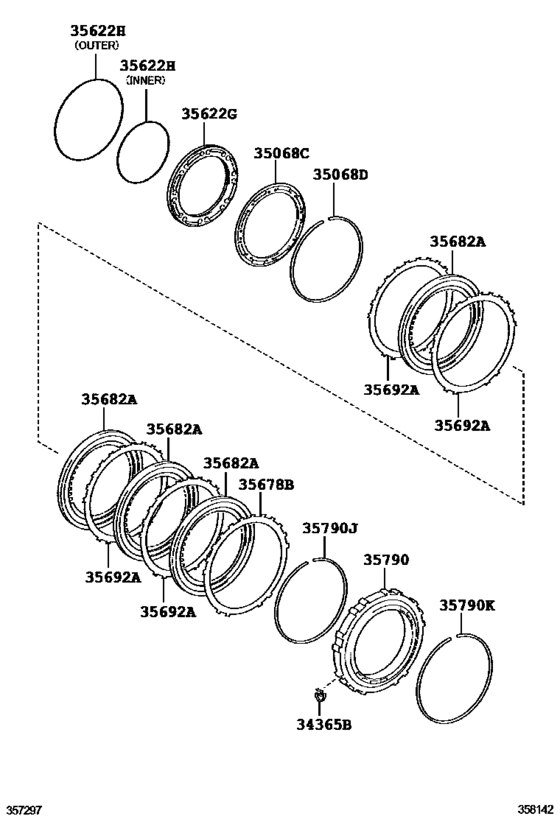

Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#) 16

#	OEM	Part name
34365	34365-33021	Retainer, Outer Race
35068	35068-33030	Spring Sub-Assy, 1St & Reverse Brake Return
35068	90520-99109	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)
35622	35622-33050	Piston, Brake, No.2
35622	90301-99190	Ring, O (For Brake Piston Inner)
35622	90301-99191	Ring, O (For Brake Piston No.2)
35678	35678-33140	Flange, Brake, No.2
35678	35678-33150	Flange, Brake, No.2
35678	35678-33160	Flange, Brake, No.2
35678	35678-33170	Flange, Brake, No.2
35678	35678-33180	Flange, Brake, No.2
35682	35682-33030	Disc, Brake, No.2
35692	35692-73020	Plate, Brake, No.2
35790	35791-48010	Clutch Assy, 1 Way
35790	90520-99105	Ring, Snap No.1 (For 1 Way Clutch)
35790	90520-99106	Ring, Snap No.2 (For 1 Way Clutch)

OEM	Part name	Category
34365-33021	Retainer, Outer Race	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
35068-33030	Spring Sub-Assy, 1St & Reverse Brake Return	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
35622-33050	Piston, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
35678-33140	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
35678-33150	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
35678-33160	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
35678-33170	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
35678-33180	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
35682-33030	Disc, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
35692-73020	Plate, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
35791-48010	Clutch Assy, 1 Way	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
90301-99190	Ring, O (For Brake Piston Inner)	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
90301-99191	Ring, O (For Brake Piston No.2)	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
90520-99105	Ring, Snap No.1 (For 1 Way Clutch)	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
90520-99106	Ring, Snap No.2 (For 1 Way Clutch)	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
90520-99109	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)	Center Support & Planetary Sun Gear (Atm) ([12.2011 - ] U760E,U761E (1112- )ASV5#)
