Search › Model › ASV51

ASV51

Toyota CAMRY-VISTA-AURION · 2015 · 3,372 parts · 185 categories

3,372 items

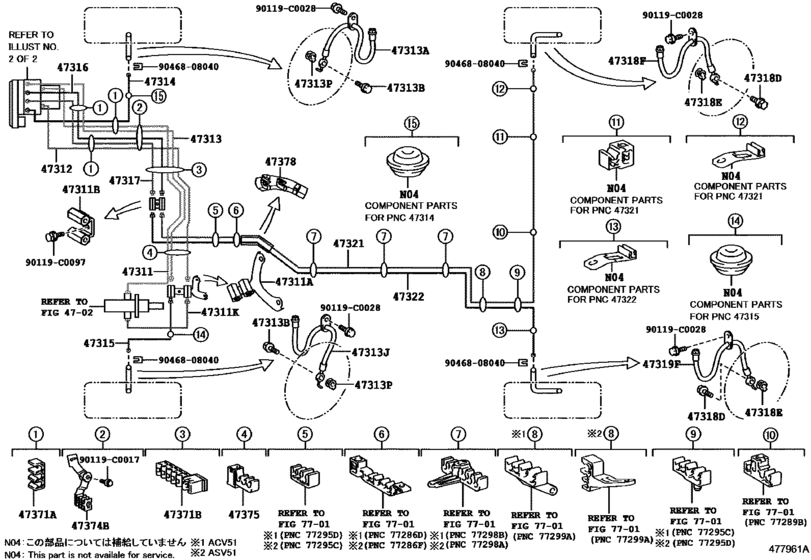

Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51) 46

#	OEM	Part name
44510	44050-06300	Actuator Assy, Brake
44510	44050-06310	Actuator Assy, Brake
44510	44050-06500	Actuator Assy, Brake
44590	44590-06260	Bracket Assy, Brake Actuator
44590	44590-06270	Bracket Assy, Brake Actuator
47311	47311-06460	Tube, Front Brake, No.1
47311	47311-06470	Tube, Front Brake, No.1
47311	47392-06010	Way(For Front Brake Tube)
47311	90412-10286	Way(For Front Brake Tube)
47311	90412-12065	Way(For Front Brake Tube)
47311	90412-C0001	Way, No.1(For Front Brake Tube)
47311	47311-06490	Tube, Brake Master Cylinder To Way
47311	47311-06500	Tube, Brake Master Cylinder To Way
47312	47312-06370	Tube, Front Brake, No.2
47312	47312-06380	Tube, Front Brake, No.2
47313	47313-06340	Tube, Front Brake, No.3
47313	47313-06350	Tube, Front Brake, No.3
47313	90947-C2047	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90401-C0001	Bolt, Union(For Front Flexible Hose)
47313	90947-C2048	Hose, Flexible, No.2(For Front)
47313	47389-50021	Gasket(For Front Flexible Hose)
47314	47314-06330	Tube, Front Brake, No.4
47315	47315-06341	Tube, Front Brake, No.5
47316	47316-06410	Tube, Front Brake, No.6
47316	47316-06420	Tube, Front Brake, No.6
47317	47317-06390	Tube, Front Brake, No.7
47317	47317-06400	Tube, Front Brake, No.7
47318	90947-C2045	Hose, Flexible(For Rear Rh)
47319	90947-C2046	Hose, Flexible(For Rear Lh)
47321	47321-06230	Tube, Rear Brake, No.1
47322	47322-06230	Tube, Rear Brake, No.2
47371	90464-00857	Clamp, Brake Tube, No.1
47371	90949-01D06	Clamp, Brake Tube, No.1
47371	90949-A1001	Clamp, Brake Tube, No.1
47371	90949-01D51	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.6
47374	47371-33280	Clamp, Brake Tube, No.1
47374	47371-33290	Clamp, Brake Tube, No.1
47375	90949-01D08	Clamp, Brake Tube, No.1
47375	90949-01D50	Clamp, Brake Tube, No.6 - BRAKE TUBE, NO.5
47378	77267-33030	Protector, Fuel Tube, No.2
90119	90119-C0017	New Genuine Part
90119	90119-C0028	New Genuine Part
90119	90119-C0097	New Genuine Part
90119	90119-C0085	New Genuine Part
9046808040	90468-08040	CLIP

OEM	Part name	Category
44050-06300	Actuator Assy, Brake	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
44050-06310	Actuator Assy, Brake	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
44050-06500	Actuator Assy, Brake	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
44590-06260	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
44590-06270	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47311-06460	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47311-06470	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47311-06490	Tube, Brake Master Cylinder To Way	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47311-06500	Tube, Brake Master Cylinder To Way	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47312-06370	Tube, Front Brake, No.2	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47312-06380	Tube, Front Brake, No.2	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47313-06340	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47313-06350	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47314-06330	Tube, Front Brake, No.4	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47315-06341	Tube, Front Brake, No.5	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47316-06410	Tube, Front Brake, No.6	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47316-06420	Tube, Front Brake, No.6	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47317-06390	Tube, Front Brake, No.7	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47317-06400	Tube, Front Brake, No.7	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47321-06230	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47322-06230	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47371-33280	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47371-33290	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47389-50021	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
47392-06010	Way(For Front Brake Tube)	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
77267-33030	Protector, Fuel Tube, No.2	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90119-C0017	New Genuine Part	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90119-C0028	New Genuine Part	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90119-C0085	New Genuine Part	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90119-C0097	New Genuine Part	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90401-C0001	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90412-10286	Way(For Front Brake Tube)	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90412-12065	Way(For Front Brake Tube)	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90412-C0001	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90464-00857	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90468-08040	CLIP	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90947-C2045	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90947-C2046	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90947-C2047	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90947-C2048	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90949-01D06	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90949-01D08	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90949-01D50	Clamp, Brake Tube, No.6 - BRAKE TUBE, NO.5	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90949-01D51	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.6	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
90949-A1001	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2011 - ] W(ABS) (1112- )ACV51,ASV51)
