Search › Model › ASV50
ASV50

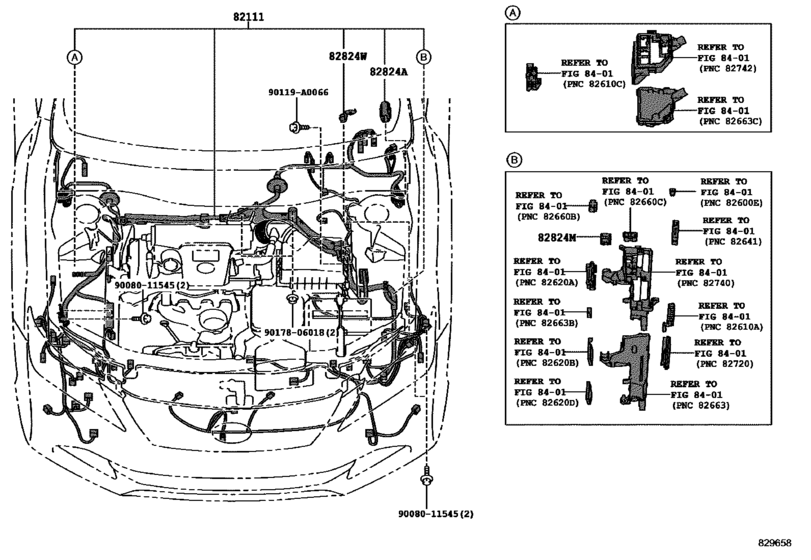

Wiring & Clamp ([04.2015 - ] ENGINE ROOM (1504- )) 7
| # | OEM | Part name |
|---|---|---|
| 82111 | 82115-06M31 | Wire, Engine Room Main |
| 82824 | 82824-30180 | Connector, Wiring Harness |
| 82824 | 82824-52290 | Connector, Wiring Harness |
| 82824 | 82824-48020 | Connector, Wiring Harness |
| 90119 | 90119-A0066 | New Genuine Part |
| 9008011545 | 90080-11545 | New Genuine Part |
| 9017806018 | 90178-06018 | NUT,FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 82115-06M31 | Wire, Engine Room Main | Wiring & Clamp ([04.2015 - ] ENGINE ROOM (1504- )) |
| 82824-30180 | Connector, Wiring Harness | Wiring & Clamp ([04.2015 - ] ENGINE ROOM (1504- )) |
| 82824-48020 | Connector, Wiring Harness | Wiring & Clamp ([04.2015 - ] ENGINE ROOM (1504- )) |
| 82824-52290 | Connector, Wiring Harness | Wiring & Clamp ([04.2015 - ] ENGINE ROOM (1504- )) |
| 90080-11545 | New Genuine Part | Wiring & Clamp ([04.2015 - ] ENGINE ROOM (1504- )) |
| 90119-A0066 | New Genuine Part | Wiring & Clamp ([04.2015 - ] ENGINE ROOM (1504- )) |
| 90178-06018 | NUT,FLANGE | Wiring & Clamp ([04.2015 - ] ENGINE ROOM (1504- )) |
