Search › Model › ASV50
ASV50

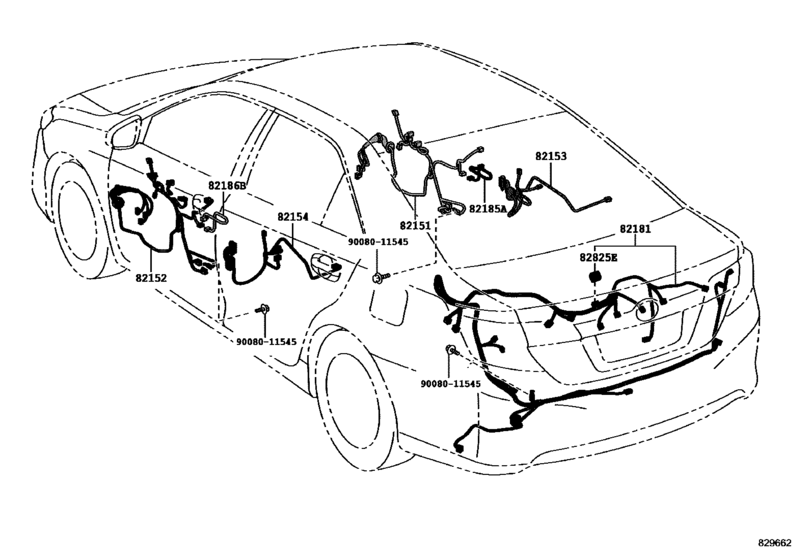

Wiring & Clamp ([04.2015 - ] DOOR (1504- )) 9
| # | OEM | Part name |
|---|---|---|
| 82151 | 82151-06J40 | Wire, Front Door, Rh |
| 82152 | 82152-06K30 | Wire, Front Door, Lh |
| 82153 | 82153-06510 | Wire, Rear Door, No.1 |
| 82154 | 82154-06510 | Wire, Rear Door, No.2 |
| 82181 | 82181-06E10 | Wire, Luggage Room, No.1 |
| 82185 | 82185-06110 | Wire, Smart Door, Front Rh |
| 82186 | 82186-06060 | Wire, Smart Door, Front Lh |
| 82825 | 82824-30220 | Connector, Wiring Harness |
| 9008011545 | 90080-11545 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 82151-06J40 | Wire, Front Door, Rh | Wiring & Clamp ([04.2015 - ] DOOR (1504- )) |
| 82152-06K30 | Wire, Front Door, Lh | Wiring & Clamp ([04.2015 - ] DOOR (1504- )) |
| 82153-06510 | Wire, Rear Door, No.1 | Wiring & Clamp ([04.2015 - ] DOOR (1504- )) |
| 82154-06510 | Wire, Rear Door, No.2 | Wiring & Clamp ([04.2015 - ] DOOR (1504- )) |
| 82181-06E10 | Wire, Luggage Room, No.1 | Wiring & Clamp ([04.2015 - ] DOOR (1504- )) |
| 82185-06110 | Wire, Smart Door, Front Rh | Wiring & Clamp ([04.2015 - ] DOOR (1504- )) |
| 82186-06060 | Wire, Smart Door, Front Lh | Wiring & Clamp ([04.2015 - ] DOOR (1504- )) |
| 82824-30220 | Connector, Wiring Harness | Wiring & Clamp ([04.2015 - ] DOOR (1504- )) |
| 90080-11545 | New Genuine Part | Wiring & Clamp ([04.2015 - ] DOOR (1504- )) |
