Search › Model › ASV50

ASV50

Toyota CAMRY-VISTA-AURION · 2011 · 3,547 parts · 344 categories

3,547 items

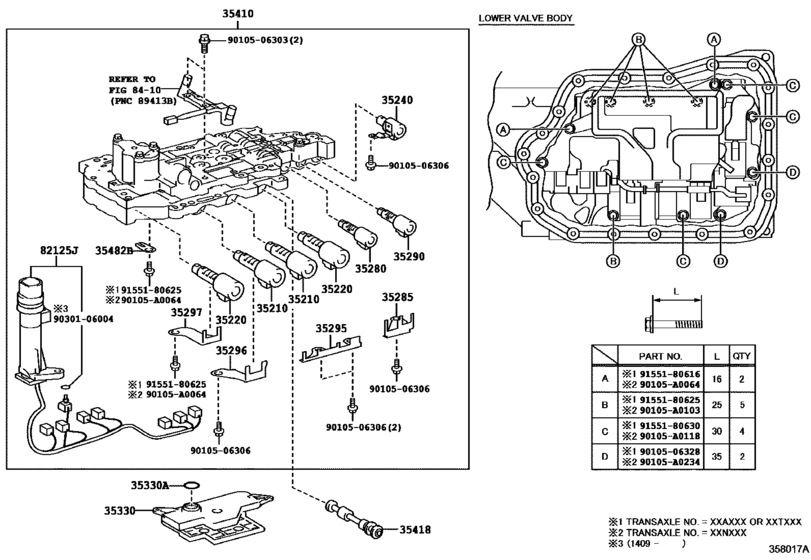

Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50) 38

#	OEM	Part name
35196	35196-33010	Clamp, Transaxle Apply Tube, No.2
35210	35210-33030	Solenoid Assy, Clutch Control, No.1
35210	35210-73010	Solenoid Assy, Clutch Control, No.1
35220	35220-48020	Solenoid Assy, Clutch Control, No.2
35220	35220-73010	Solenoid Assy, Clutch Control, No.2
35240	35240-73010	Solenoid Assy, Automatic Transmission 3Way
35280	35280-33020	Solenoid Assy, Lock Up Control
35285	35285-33070	Plate, Solenoid Lock
35290	35290-33040	Solenoid Assy, Line Pressure Control
35295	35295-33050	Plate, Solenoid Lock, No.2
35296	35296-33050	Plate, Solenoid Lock, No.3
35297	35297-33020	Plate, Solenoid Lock, No.4
35330	35330-0R010	Strainer Assy, Valve Body Oil
35330	35330-73010	Strainer Assy, Valve Body Oil
35330	90301-27010	Ring, O (For Oil Strainer)
35330	90301-27015	Ring, O (For Oil Strainer)
35409	35409-33010	Spring Sub-Assy, Manual Detent
35410	35410-06020	Body Assy, Transmission Valve
35410	35410-33260	Body Assy, Transmission Valve
35418	35418-73010	Valve, Manual
35482	35482-73010	Clamp, Temperature Sensor
35599	35599-33010	Cover, Manual Detent Spring
35882	35882-73010	Tube, Differential Gear Lube Apply
82125	82125-73010	Wire, Transmission
90105	90105-A0064	New Genuine Part
90105	90105-A0103	Bolt(For Camshaft Housing Set)
90105	90105-A0118	New Genuine Part
90105	90105-A0234	New Genuine Part
90105	90105-A0228	New Genuine Part
9008010400	90080-10400	Bolt (For Pawl Stopper Plate)
9010506303	90105-06303	New Genuine Part
9010506306	90105-06306	New Genuine Part
9010506328	90105-06328	New Genuine Part
9030106004	90301-06004	Ring, O No.3(For Transmission Solenoid)
9155180616	91551-80616	BOLT FLANGE
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9155180630	91551-80630	Bolt(For Cylinder Head Cover)
9155180816	91551-80816	Bolt(For Manual Transmission Oil Separator)

OEM	Part name	Category
35196-33010	Clamp, Transaxle Apply Tube, No.2	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35210-33030	Solenoid Assy, Clutch Control, No.1	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35210-73010	Solenoid Assy, Clutch Control, No.1	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35220-48020	Solenoid Assy, Clutch Control, No.2	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35220-73010	Solenoid Assy, Clutch Control, No.2	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35240-73010	Solenoid Assy, Automatic Transmission 3Way	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35280-33020	Solenoid Assy, Lock Up Control	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35285-33070	Plate, Solenoid Lock	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35290-33040	Solenoid Assy, Line Pressure Control	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35295-33050	Plate, Solenoid Lock, No.2	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35296-33050	Plate, Solenoid Lock, No.3	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35297-33020	Plate, Solenoid Lock, No.4	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35330-0R010	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35330-73010	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35409-33010	Spring Sub-Assy, Manual Detent	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35410-06020	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35410-33260	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35418-73010	Valve, Manual	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35482-73010	Clamp, Temperature Sensor	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35599-33010	Cover, Manual Detent Spring	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
35882-73010	Tube, Differential Gear Lube Apply	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
82125-73010	Wire, Transmission	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
90080-10400	Bolt (For Pawl Stopper Plate)	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
90105-06303	New Genuine Part	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
90105-06306	New Genuine Part	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
90105-06328	New Genuine Part	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
90105-A0064	New Genuine Part	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
90105-A0103	Bolt(For Camshaft Housing Set)	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
90105-A0118	New Genuine Part	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
90105-A0228	New Genuine Part	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
90105-A0234	New Genuine Part	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
90301-06004	Ring, O No.3(For Transmission Solenoid)	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
90301-27010	Ring, O (For Oil Strainer)	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
90301-27015	Ring, O (For Oil Strainer)	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
91551-80616	BOLT FLANGE	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
91551-80625	Bolt(For Camshaft Housing Set)	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
91551-80630	Bolt(For Cylinder Head Cover)	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
91551-80816	Bolt(For Manual Transmission Oil Separator)	Valve Body & Oil Strainer (Atm) ([09.2011 - ] U760E (1109- )ASV50)
