Search › Model › ASV50

ASV50

Toyota CAMRY-VISTA-AURION · 2011 · 3,547 parts · 344 categories

3,547 items

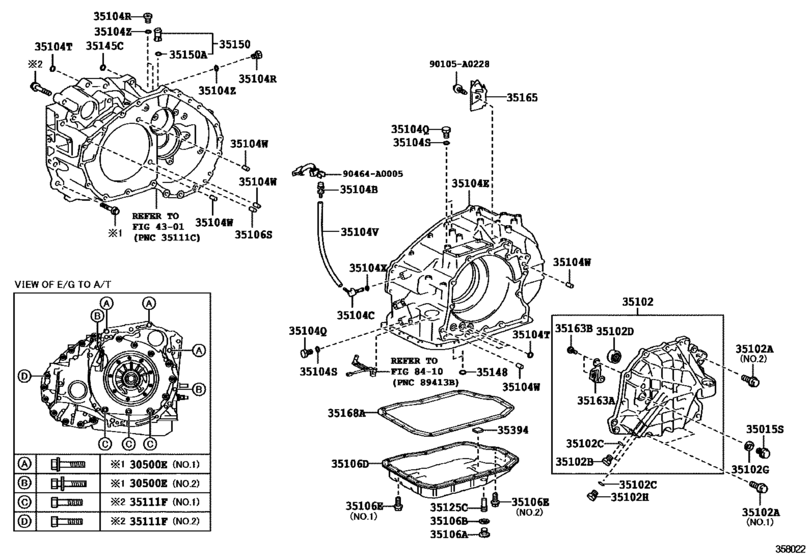

Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50) 56

#	OEM	Part name
30500	90080-10299	Bolt(For Transaxle & Engine Setting)
30500	90080-11310	Bolt(For Transaxle & Engine Setting)
35015	90341-18064	Plug, Straight(For Transmission Case Adapter)
35102	35102-06031	Cover Sub-Assy, Transaxle Rear
35102	35102-33091	Cover Sub-Assy, Transaxle Rear
35102	90105-08431	Bolt (For Transaxle Rear Cover Setting)
35102	90105-A0109	Bolt (For Transaxle Rear Cover Setting)
35102	90105-A0213	Bolt (For Transaxle Rear Cover Setting)
35102	91551-00828	Bolt (For Transaxle Rear Cover Setting)
35102	90341-08001	Plug, Transaxle Case, No.1
35102	90341-A0001	Plug, Automatic Transmission Case
35102	90080-30075	Ring, O(For Transaxle Rear Cover Pulg)
35102	90301-06196	O Ring, Transaxle Case, No.1
35102	90364-18010	Bearing, Needle Roller(For Transaxle Rear Cover)
35102	90364-A0010	Bearing, Needle Roller(For Transaxle Rear Cover)
35102	90430-18008	Gasket
35102	90430-T0021	Gasket(For Manual Transmission Filler Plug)
35104	90930-03149	Plug Sub-Assy, Breather(For Transmission)
35104	90930-03187	Plug, Breather, No.2 (Atm)
35104	35141-06030	Case Sub-Assy, Automatic Transaxle
35104	35141-06031	Case Sub-Assy, Automatic Transaxle
35104	35141-33141	Case Sub-Assy, Automatic Transaxle
35104	90341-14015	Plug, W/head Straight Screw, No.1
35104	90341-A0005	Plug, No.2 (For Transaxle Case)
35104	90301-10018	Ring, O(For Oil Cooler Tube Union)
35104	90301-10189	Ring, O(For Oil Cooler Tube Union)
35104	35121-33051	Hose (For Breather Plug)
35104	90250-10017	Pin, Straight(For Clutch Housing Set)
35104	90301-06021	Ring, O (For Breather Plug)
35104	90430-14008	Gasket(For Water Hole)
35106	90341-12034	Plug Sub-Assy, Drain (Atm)
35106	90430-12008	Gasket (For Shift Inter Lock Plate)
35106	90430-A0002	Gasket, Drain Plug (Atm)
35106	35106-06020	Pan Sub-Assy, Automatic Transaxle Oil
35106	35106-33070	Pan Sub-Assy, Automatic Transaxle Oil
35106	90080-11496	Bolt (For Transaxle Oil Pan)
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35106	90119-A0298	Bolt (For Automatic Transmission Oil Pan)
35106	90253-11007	Pin, Ring (For Transaxle Case)
35111	90105-08432	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	90105-A0110	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	90105-A0111	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	91551-10845	Bolt (For Transaxle Housing & Transaxle Case Setting)
35125	35125-73010	Tube, Transmission Oil Filler, No.1
35145	35145-33010	Gasket, Transaxle Case
35150	35150-44010	Plug(For Transmission Case)
35150	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35163	35163-07010	Plate, Transaxle Rear Cover
35163	35163-33010	Plate, Transaxle Rear Cover
35163	90080-14046	Screw, Hex Lobular(For Transaxle Rear Cover Plate)
35163	90148-60055	Screw, Hex Lobular(For Transaxle Rear Cover Plate)
35165	35165-73010	Plate, Transmission Case, No.1
35168	35168-73010	Gasket, Automatic Transaxle Oil Pan
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
90105	90105-A0228	New Genuine Part
90464	90464-A0005	New Genuine Part

OEM	Part name	Category
35102-06031	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35102-33091	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35106-06020	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35106-33070	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35121-33051	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35125-73010	Tube, Transmission Oil Filler, No.1	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35141-06030	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35141-06031	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35141-33141	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35145-33010	Gasket, Transaxle Case	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35150-44010	Plug(For Transmission Case)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35163-07010	Plate, Transaxle Rear Cover	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35163-33010	Plate, Transaxle Rear Cover	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35165-73010	Plate, Transmission Case, No.1	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35168-73010	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90080-10299	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90080-11310	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90080-11496	Bolt (For Transaxle Oil Pan)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90080-14046	Screw, Hex Lobular(For Transaxle Rear Cover Plate)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90080-30075	Ring, O(For Transaxle Rear Cover Pulg)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90105-08431	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90105-08432	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90105-A0109	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90105-A0110	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90105-A0111	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90105-A0213	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90105-A0228	New Genuine Part	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90119-A0298	Bolt (For Automatic Transmission Oil Pan)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90148-60055	Screw, Hex Lobular(For Transaxle Rear Cover Plate)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90250-10017	Pin, Straight(For Clutch Housing Set)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90253-11007	Pin, Ring (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90301-06021	Ring, O (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90301-10018	Ring, O(For Oil Cooler Tube Union)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90341-12034	Plug Sub-Assy, Drain (Atm)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90341-14015	Plug, W/head Straight Screw, No.1	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90341-18064	Plug, Straight(For Transmission Case Adapter)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90341-A0001	Plug, Automatic Transmission Case	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90341-A0005	Plug, No.2 (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90364-18010	Bearing, Needle Roller(For Transaxle Rear Cover)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90364-A0010	Bearing, Needle Roller(For Transaxle Rear Cover)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90430-12008	Gasket (For Shift Inter Lock Plate)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90430-14008	Gasket(For Water Hole)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90430-18008	Gasket	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90430-A0002	Gasket, Drain Plug (Atm)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90464-A0005	New Genuine Part	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90930-03149	Plug Sub-Assy, Breather(For Transmission)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
90930-03187	Plug, Breather, No.2 (Atm)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
91551-00828	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
91551-10845	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([09.2011 - ] U760E,AXLE NO.=XXNXXX (1109- )ASV50)
