Search › Model › ASV50

ASV50

Toyota CAMRY-VISTA-AURION · 2011 · 3,547 parts · 344 categories
ASV50 ×

← Back to categories

3,547 items

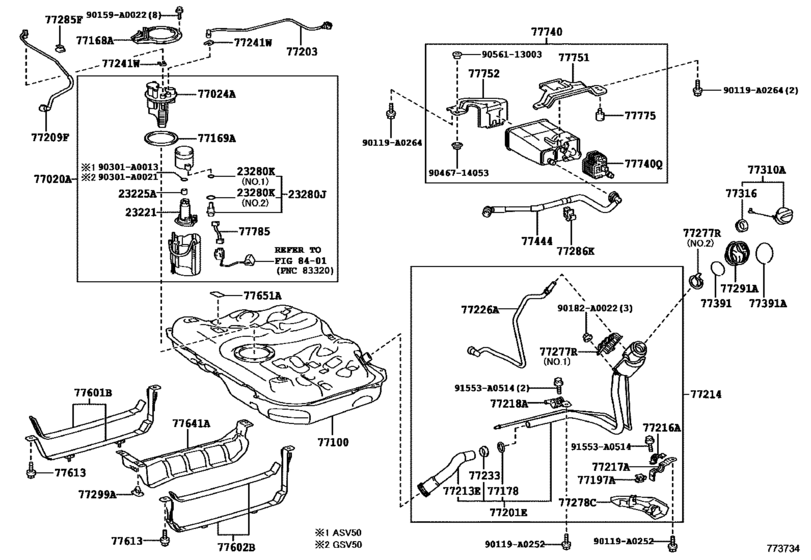

Fuel Tank & Tube ([09.2014 - ] FUEL TANK (1409- )ASV50,GSV50) 77
#OEMPart name
23221 23220-0V150 Pump Assy, Fuel W/filter
23225 23225-0V010 Spacer, Fuel Pump
23280 23280-21010 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
77020 77020-06282 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-06286 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-06285 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-06302 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-06306 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-06305 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-06151 Plate Sub-Assy, Fuel Suction
77024 77024-06153 Plate Sub-Assy, Fuel Suction
77024 77024-06152 Plate Sub-Assy, Fuel Suction
77024 77024-06211 Plate Sub-Assy, Fuel Suction
77024 77024-06213 Plate Sub-Assy, Fuel Suction
77024 77024-06212 Plate Sub-Assy, Fuel Suction
77100 77001-06190 Tank Sub-Assy, Fuel
77168 77168-33070 Plate, Fuel Tank Vent Tube Set
77169 77169-52010 Gasket, Fuel Suction Tube Set
77169 77169-53010 Gasket, Fuel Suction Tube Set
77178 77178-06010 Gasket, Fuel Tank Filler Pipe, Lower
77197 77197-0R010 Clamp, Evaporation Vent Tube, No.2
77201 77201-06161 Pipe Sub-Assy, Fuel Tank Filler
77201 77201-06171 Pipe Sub-Assy, Fuel Tank Filler
77203 77203-06070 Tube Sub-Assy, Breather
77209 77209-06052 Tube Sub-Assy, Fuel Tank Main
77213 77213-06060 Hose, Fuel Tank To Filler Pipe
77214 77210-06162 Pipe, Fuel Tank Filler
77214 77210-06172 Pipe, Fuel Tank Filler
77216 77216-06100 Support, Fuel Tank Filler Pipe, No.1
77217 77217-06090 Support, Fuel Tank Filler Pipe, No.2
77218 77218-06091 Support, Fuel Tank Filler Pipe, No.3
77218 77218-33031 Support, Fuel Tank Filler Pipe, No.3
77226 77226-06120 Tube, Fuel Tank Breather, No.6
77233 77233-06030 Joint, Fuel Hose
77241 77241-06020 Clip, Tube Joint
77277 77277-06050 Protector, Fuel Tank Filler Pipe
77277 77277-33100 Protector, Fuel Tank Filler Pipe
77278 77278-06050 Protector, Fuel Tank Filler Pipe, No.2
77285 77285-33110 Clamp, Fuel Tube, No.1
77286 77286-06050 Clamp, Fuel Tube, No.2
77291 77291-06160 Shield, Fuel Tank Filler Pipe
77299 77299-06070 Clamp, Fuel Tube, No.5
77310 77300-07030 Cap Assy, Fuel Tank
77310 77300-07040 Cap Assy, Fuel Tank
77316 77316-06070 Gasket, Fuel Tank Cap
77316 77316-06090 Gasket, Fuel Tank Cap
77391 77391-02041 Ring, Fuel Inlet Box
77391 77391-06130 Ring, Fuel Inlet Box
77444 77404-06100 Hose, Fuel Tank Vent
77601 77601-06080 Band Sub-Assy, Fuel Tank, No.1 Rh
77601 77601-06150 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-06080 Band Sub-Assy, Fuel Tank, No.1 Lh
77602 77602-06150 Band Sub-Assy, Fuel Tank, No.1 Lh
77613 90119-10971 Bolt, Fuel Tank Band Set
77613 90119-A0267 Bolt, Fuel Tank Band Set
77641 77641-06010 Protector, Fuel Tank, No.1
77651 77651-20090 Cushion, Fuel Tank, No.1
77740 77740-06180 Canister Assy, Charcoal
77740 77740-06220 Canister Assy, Charcoal
77740 90910-AF004 Leak Detection Pump Sub-Assy, Charcoal Canister
77740 90910-AF006 Leak Detection Pump Sub-Assy, Charcoal Canister
77751 77751-06110 Bracket, Charcoal Canister Base
77752 77752-06050 Bracket, Charcoal Canister Support
77752 77752-06060 Bracket, Charcoal Canister Support
77775 77775-47010 Guide, Charcoal Canister Outlet
77785 77785-06080 Harness, Fuel Pump
90119 90119-A0252 New Genuine Part
90119 90119-A0264 New Genuine Part
90159 90159-A0022 SCREW WWASHER
90182 90182-A0022 NUT WWASHER
90301 90301-A0013 Ring, O(For Fuel Pressure Regulator)
90301 90301-A0021 Seal, Fuel Pump Filter
91553 91553-A0514 BOLT FLANGE
9046714053 90467-14053 Clip, No.1(For Floor Under Cover)
9056113003 90561-13003 Clip, No.4(For Floor Under Cover)
