ASV50

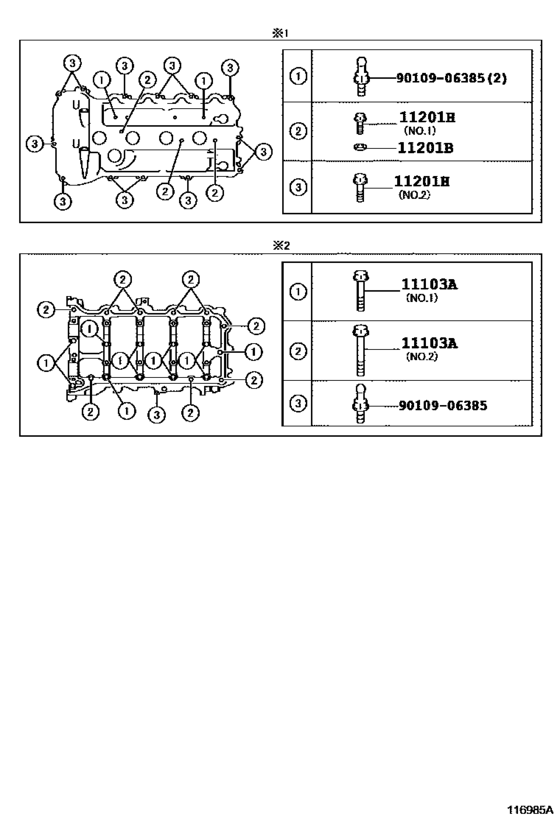

Cylinder Head ([09.2011 - ] (1109- )2AR#) 9
| # | OEM | Part name |
|---|---|---|
| 11103 | 90105-08455 | Bolt(For Camshaft Housing Set) |
| 11103 | 90105-A0149 | Bolt(For Camshaft Housing Set) |
| 11103 | 90105-A0165 | Bolt(For Camshaft Housing Set) |
| 11201 | 90210-05008 | Washer, Seal(For Cylinder Head Cover) |
| 11201 | 90105-A0103 | Bolt(For Camshaft Housing Set) |
| 11201 | 90105-A0214 | Bolt(For Cylinder Head Cover) |
| 11201 | 91551-80625 | Bolt(For Camshaft Housing Set) |
| 11201 | 91551-80635 | Bolt(For Head To Camshaft Bearing Cap) |
| 9010906385 | 90109-06385 | Bolt , V-Bank Cover, No.1 |
| OEM | Part name | Category |
|---|---|---|
| 90105-08455 | Bolt(For Camshaft Housing Set) | Cylinder Head ([09.2011 - ] (1109- )2AR#) |
| 90105-A0103 | Bolt(For Camshaft Housing Set) | Cylinder Head ([09.2011 - ] (1109- )2AR#) |
| 90105-A0149 | Bolt(For Camshaft Housing Set) | Cylinder Head ([09.2011 - ] (1109- )2AR#) |
| 90105-A0165 | Bolt(For Camshaft Housing Set) | Cylinder Head ([09.2011 - ] (1109- )2AR#) |
| 90105-A0214 | Bolt(For Cylinder Head Cover) | Cylinder Head ([09.2011 - ] (1109- )2AR#) |
| 90109-06385 | Bolt , V-Bank Cover, No.1 | Cylinder Head ([09.2011 - ] (1109- )2AR#) |
| 90210-05008 | Washer, Seal(For Cylinder Head Cover) | Cylinder Head ([09.2011 - ] (1109- )2AR#) |
| 91551-80625 | Bolt(For Camshaft Housing Set) | Cylinder Head ([09.2011 - ] (1109- )2AR#) |
| 91551-80635 | Bolt(For Head To Camshaft Bearing Cap) | Cylinder Head ([09.2011 - ] (1109- )2AR#) |
