Search › Model › ASV50

ASV50

Toyota CAMRY-VISTA-AURION · 2011 · 3,547 parts · 344 categories

3,547 items

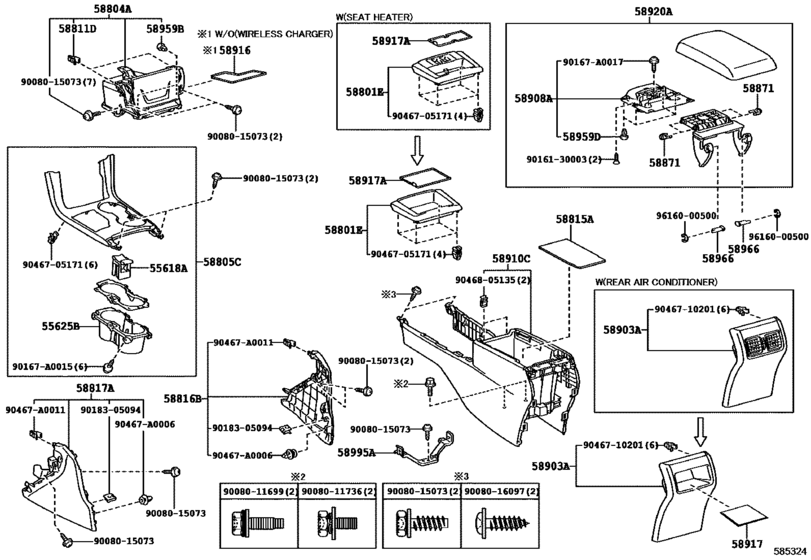

Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50) 41

#	OEM	Part name
55618	55618-06050	Holder, Console Box Cup
55625	55625-06110	Tray, Instrument Panel Cup Holder
58801	58801-06160	Box Sub-Assy, Console, Upper
58801	58801-06181	Box Sub-Assy, Console, Upper
58804	58804-06241	Panel Sub-Assy, Console, Upper
58804	58804-06251	Panel Sub-Assy, Console, Upper
58804	58804-06252	Panel Sub-Assy, Console, Upper
58805	58805-06351	Panel Sub-Assy, Console, Upper Rear
58811	90467-A0011	Clip, Instrument Panel, No.1
58815	58815-06100	Carpet, Console Box
58816	58816-06080-C0	Insert, Console Box
58817	58817-06130-C0	Insert, Console Box, Front No.2
58871	58871-30070	Cushion, Console Box
58903	58903-06141-C0	Panel Sub-Assy, Console Rear End
58903	58903-06390-C0	Panel Sub-Assy, Console Rear End
58908	58908-06081	Lock Sub-Assy, Console Compartment Door
58910	58910-06170-C0	Box Assy, Console, Rear
58910	58910-06180-C0	Box Assy, Console, Rear
58916	58916-06110	Mat, Box Bottom
58917	58917-06090	Mat, Box Bottom, No.2
58917	58917-06030	Cover, Console Box, Rear
58917	58917-06120	Cover, Console Box, Rear
58920	58920-06011-C0	Armrest Assy, Rear Console
58920	58920-06021-B3	Armrest Assy, Rear Console
58920	58920-06021-C1	Armrest Assy, Rear Console
58959	58959-60060	Cushion, Instrument Panel
58966	58966-30030	Shaft, Box Door Hinge
58995	58995-06160	Bracket, Console Box Mounting, No.1
90167	90167-A0015	New Genuine Part
90167	90167-A0017	New Genuine Part
90467	90467-A0006	Clip(For Front Fender Seal)
9008011699	90080-11699	Bolt, W/washer
9008011736	90080-11736	New Genuine Part
9008015073	90080-15073	SCREW WWASHER TAPP
9008016097	90080-16097	New Genuine Part
9016130003	90161-30003	SCREW COUNTERSUNK
9018305094	90183-05094	NUT
9046705171	90467-05171	Clip, Instrument Panel
9046710201	90467-10201	Clip, Cover Sub-Assy, Position Indicator Housing
9046805135	90468-05135	Clip, Instrument Panel
9616000500	96160-00500	Ring, E(For Over Center Lever)

OEM	Part name	Category
55618-06050	Holder, Console Box Cup	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
55625-06110	Tray, Instrument Panel Cup Holder	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58801-06160	Box Sub-Assy, Console, Upper	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58801-06181	Box Sub-Assy, Console, Upper	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58804-06241	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58804-06251	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58804-06252	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58805-06351	Panel Sub-Assy, Console, Upper Rear	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58815-06100	Carpet, Console Box	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58816-06080-C0	Insert, Console Box	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58817-06130-C0	Insert, Console Box, Front No.2	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58871-30070	Cushion, Console Box	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58903-06141-C0	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58903-06390-C0	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58908-06081	Lock Sub-Assy, Console Compartment Door	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58910-06170-C0	Box Assy, Console, Rear	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58910-06180-C0	Box Assy, Console, Rear	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58916-06110	Mat, Box Bottom	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58917-06030	Cover, Console Box, Rear	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58917-06090	Mat, Box Bottom, No.2	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58917-06120	Cover, Console Box, Rear	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58920-06011-C0	Armrest Assy, Rear Console	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58920-06021-B3	Armrest Assy, Rear Console	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58920-06021-C1	Armrest Assy, Rear Console	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58959-60060	Cushion, Instrument Panel	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58966-30030	Shaft, Box Door Hinge	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
58995-06160	Bracket, Console Box Mounting, No.1	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
90080-11699	Bolt, W/washer	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
90080-11736	New Genuine Part	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
90080-15073	SCREW WWASHER TAPP	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
90080-16097	New Genuine Part	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
90161-30003	SCREW COUNTERSUNK	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
90167-A0015	New Genuine Part	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
90167-A0017	New Genuine Part	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
90183-05094	NUT	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
90467-05171	Clip, Instrument Panel	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
90467-10201	Clip, Cover Sub-Assy, Position Indicator Housing	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
90467-A0006	Clip(For Front Fender Seal)	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
90467-A0011	Clip, Instrument Panel, No.1	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
90468-05135	Clip, Instrument Panel	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)
96160-00500	Ring, E(For Over Center Lever)	Console Box & Bracket ([09.2014 - ] (1409- )ASV50,GSV50)

Source: Public OEM parts-catalog data
Variants: 2 / 35
Category: 344
Collected: 2026-08-02
