ASV50

Toyota CAMRY-VISTA-AURION · 2011 · 3,547 parts · 344 categories

← Back to categories

3,547 items

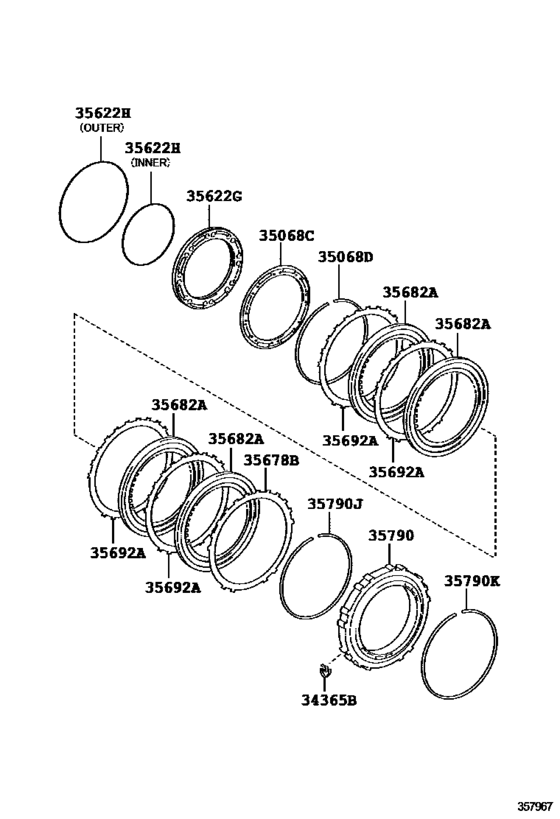

Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- )) 19

#	OEM	Part name
34365	34365-33021	Retainer, Outer Race
35068	35068-33030	Spring Sub-Assy, 1St & Reverse Brake Return
35068	90520-99109	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)
35622	35622-33050	Piston, Brake, No.2
35622	90301-99190	Ring, O (For Brake Piston Inner)
35622	90301-99191	Ring, O (For Brake Piston No.2)
35678	35678-33110	Flange, Brake, No.2
35678	35678-33120	Flange, Brake, No.2
35678	35678-33130	Flange, Brake, No.2
35678	35678-33140	Flange, Brake, No.2
35678	35678-33150	Flange, Brake, No.2
35678	35678-33160	Flange, Brake, No.2
35678	35678-33170	Flange, Brake, No.2
35678	35678-33180	Flange, Brake, No.2
35682	35682-73020	Disc, Brake, No.2
35692	35692-73020	Plate, Brake, No.2
35790	35791-48010	Clutch Assy, 1 Way
35790	90520-99105	Ring, Snap No.1 (For 1 Way Clutch)
35790	90520-99106	Ring, Snap No.2 (For 1 Way Clutch)

OEM	Part name	Category
34365-33021	Retainer, Outer Race	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
35068-33030	Spring Sub-Assy, 1St & Reverse Brake Return	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
35622-33050	Piston, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
35678-33110	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
35678-33120	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
35678-33130	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
35678-33140	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
35678-33150	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
35678-33160	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
35678-33170	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
35678-33180	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
35682-73020	Disc, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
35692-73020	Plate, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
35791-48010	Clutch Assy, 1 Way	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
90301-99190	Ring, O (For Brake Piston Inner)	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
90301-99191	Ring, O (For Brake Piston No.2)	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
90520-99105	Ring, Snap No.1 (For 1 Way Clutch)	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
90520-99106	Ring, Snap No.2 (For 1 Way Clutch)	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
90520-99109	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)	Center Support & Planetary Sun Gear (Atm) ([09.2014 - ] U760E (1409- ))
