ASV50

Toyota CAMRY-VISTA-AURION · 2011 · 3,547 parts · 344 categories

3,547 items

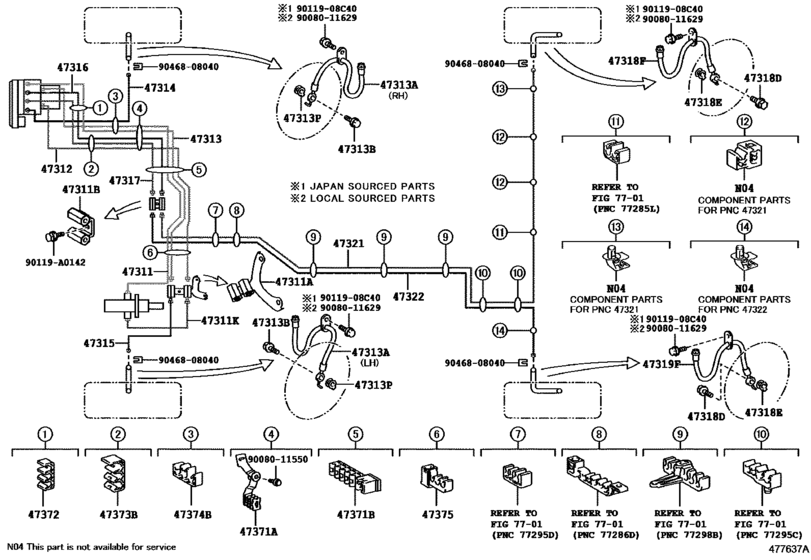

Brake Tube & Clamp ([04.2015 - ] (1504- )) 33

#	OEM	Part name
44510	44050-06240	Actuator Assy, Brake
44590	44590-06180	Bracket Assy, Brake Actuator
47311	47311-06400	Tube, Front Brake, No.1
47311	90412-12065	Way(For Front Brake Tube)
47311	90412-A0004	Way, No.1(For Front Brake Tube)
47311	47311-06390	Tube, Brake Master Cylinder To Way
47312	47312-06330	Tube, Front Brake, No.2
47313	47313-06290	Tube, Front Brake, No.3
47313	90947-A2030	Hose, Flexible, No.1(For Front)
47313	90947-A2031	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90401-A0001	Bolt, Union(For Front Flexible Hose)
47313	47389-50021	Gasket(For Front Flexible Hose)
47314	47314-06291	Tube, Front Brake, No.4
47315	47315-06281	Tube, Front Brake, No.5
47316	47316-06350	Tube, Front Brake, No.6
47317	47317-06330	Tube, Front Brake, No.7
47318	90947-A2032	Hose, Flexible(For Rear Rh)
47319	90947-A2060	Hose, Flexible(For Rear Lh)
47321	47321-06151	Tube, Rear Brake, No.1
47322	47322-06151	Tube, Rear Brake, No.2
47371	47371-06050	Clamp, Brake Tube, No.1
47371	90949-A1019	Clamp, Brake Tube, No.1
47372	90464-00857	Clamp, Brake Tube, No.1
47373	90464-A0007	Clamp, Brake Tube, No.2
47374	90464-A0006	Clamp, Brake Tube, No.1
47375	90949-A1018	Clamp, Brake Tube, No.6
90119	90119-A0142	New Genuine Part
90119	90119-A0120	New Genuine Part
9011908	90119-08C40	New Genuine Part
9008011550	90080-11550	New Genuine Part
9008011629	90080-11629	New Genuine Part
9046808040	90468-08040	CLIP

OEM	Part name	Category
44050-06240	Actuator Assy, Brake	Brake Tube & Clamp ([04.2015 - ] (1504- ))
44590-06180	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([04.2015 - ] (1504- ))
47311-06390	Tube, Brake Master Cylinder To Way	Brake Tube & Clamp ([04.2015 - ] (1504- ))
47311-06400	Tube, Front Brake, No.1	Brake Tube & Clamp ([04.2015 - ] (1504- ))
47312-06330	Tube, Front Brake, No.2	Brake Tube & Clamp ([04.2015 - ] (1504- ))
47313-06290	Tube, Front Brake, No.3	Brake Tube & Clamp ([04.2015 - ] (1504- ))
47314-06291	Tube, Front Brake, No.4	Brake Tube & Clamp ([04.2015 - ] (1504- ))
47315-06281	Tube, Front Brake, No.5	Brake Tube & Clamp ([04.2015 - ] (1504- ))
47316-06350	Tube, Front Brake, No.6	Brake Tube & Clamp ([04.2015 - ] (1504- ))
47317-06330	Tube, Front Brake, No.7	Brake Tube & Clamp ([04.2015 - ] (1504- ))
47321-06151	Tube, Rear Brake, No.1	Brake Tube & Clamp ([04.2015 - ] (1504- ))
47322-06151	Tube, Rear Brake, No.2	Brake Tube & Clamp ([04.2015 - ] (1504- ))
47371-06050	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.2015 - ] (1504- ))
47389-50021	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90080-11550	New Genuine Part	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90080-11629	New Genuine Part	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90119-08C40	New Genuine Part	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90119-A0120	New Genuine Part	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90119-A0142	New Genuine Part	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90401-A0001	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90412-12065	Way(For Front Brake Tube)	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90412-A0004	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90464-00857	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90464-A0006	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90464-A0007	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90468-08040	CLIP	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90947-A2030	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90947-A2031	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90947-A2032	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90947-A2060	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90949-A1018	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([04.2015 - ] (1504- ))
90949-A1019	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.2015 - ] (1504- ))
