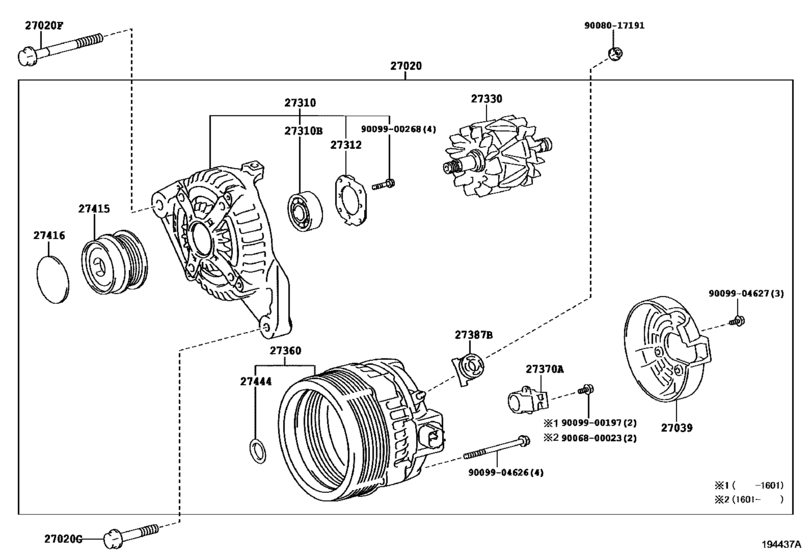

| 27039-0C170 |
Cover, Alternator Rear End |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27039-47330 |
Cover, Alternator Rear End |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27060-0V170 |
Alternator Assy |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27310-0V160 |
Frame Assy, Drive End, Alternator |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27310-36160 |
Frame Assy, Drive End, Alternator |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27312-72100 |
Plate, Bearing Retainer, Alternator |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27330-0C170 |
Rotor Assy, Alternator |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27330-47330 |
Rotor Assy, Alternator |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27360-0V200 |
Coil Assy, Alternator |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27360-36161 |
Coil Assy, Alternator |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27370-0V160 |
Holder Assy, Alternator Brush |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27370-31220 |
Holder Assy, Alternator Brush |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27387-20130 |
Insulator, Terminal |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27415-0W021 |
Pulley, Alternator W/clutch |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27416-0W050 |
Cap, Alternator Pulley |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27444-0C170 |
Packing, Alternator Bearing Cover |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 27444-21190 |
Packing, Alternator Bearing Cover |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 90068-00023 |
Screw(For Alternator Brush Holder) |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 90068-10033 |
Bearing(For Alternator Drive End Frame) |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 90080-17191 |
New Genuine Part |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 90099-00197 |
Screw |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 90099-00268 |
Screw(For Alternator Drive End Frame) |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 90099-04626 |
Bolt(For Alternator Coil) |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 90099-04627 |
Bolt(For Alternator Rear End Cover) |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 90099-10223 |
Bearing(For Alternator Drive End Frame) |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 90105-A0166 |
Bolt(For Alternator) |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
| 90105-A0230 |
Bolt(For Alternator) |
Alternator ([09.2014 - ] 12V 100A (1409- )2ARFE) |
