Search › Model › ASV40

ASV40

Toyota CAMRY-VISTA-AURION · 2009 · 4,197 parts · 184 categories

4,197 items

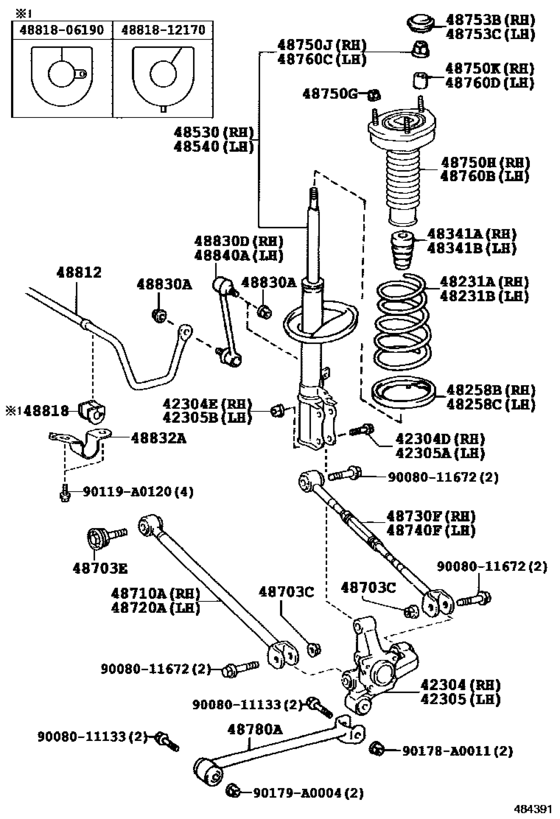

Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP) 46

#	OEM	Part name
42304	42304-06100	Carrier Sub-Assy, Rear Axle, Rh
42304	42304-48010	Carrier Sub-Assy, Rear Axle, Rh
42304	90080-10398	Bolt (For Rear Axle Carrier Rh)
42304	90080-17213	Nut (For Rear Axle Carrier Rh)
42305	42305-06100	Carrier Sub-Assy, Rear Axle, Lh
42305	42305-48010	Carrier Sub-Assy, Rear Axle, Lh
48231	48231-06391	Spring, Coil, Rear Rh
48231	48231-06381	Spring, Coil, Rear Rh
48231	48231-06401	Spring, Coil, Rear Rh
48258	48258-32021	Insulator, Rear Coil Spring, Lower Rh
48258	48258-33020	Insulator, Rear Coil Spring, Lower Lh
48341	48341-AA010	Bumper, Rear Spring, No.1 Rh
48530	48530-09K90	Absorber Assy, Shock, Rear Rh
48530	48530-80527	Absorber Assy, Shock, Rear Rh
48540	48540-09680	Absorber Assy, Shock, Rear Lh
48540	48540-80010	Absorber Assy, Shock, Rear Lh
48703	90080-17223	Nut(For Front Suspension Lower Arm)
48703	90080-11674	Bolt(For Rear Suspension Arm)
48710	48710-06120	Arm Assy, Rear Suspension, No.1 Rh
48710	48710-06130	Arm Assy, Rear Suspension, No.1 Rh
48710	48710-33100	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-07040	Arm Assy, Rear Suspension, No.2 Rh
48740	48740-07020	Arm Assy, Rear Suspension, No.2 Lh
48740	48740-33100	Arm Assy, Rear Suspension, No.2 Lh
48750	90178-08007	Nut(For Rear Suspension Support)
48750	90178-A0002	Nut(For Rear Suspension Support)
48750	48750-06100	Support Assy, Rear Suspension, Rh
48750	90080-17217	Nut(For Front Support To Front Shock Absorber Rh)
48750	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
48750	48750-06180	Support Assy, Rear Suspension, Rh
48753	48753-06011	Cover, Rear Suspension Supoport, No.1 Rh
48760	48760-06100	Support Assy Rear Suspension, Lh
48760	48760-06180	Support Assy Rear Suspension, Lh
48780	48780-06030	Rod Assy, Strut, Rear
48780	48780-07020	Rod Assy, Strut, Rear
48812	48812-06090	Bar, Stabilizer, Rear
48812	48812-06080	Bar, Stabilizer, Rear
48818	48818-12170	Bush, Stabilizer, Rear
48830	90080-17227	Nut(For Rear Stabilizer Link)
48830	48830-06060	Link Assy, Rear Stabilizer, Rh
48832	48832-06110	Bracket, Rear Stabilizer Bar, No.1
90119	90119-A0120	New Genuine Part
90178	90178-A0011	Nut(For Strut Rod)
90179	90179-A0004	Nut(For Strut Rod)
9008011133	90080-11133	Bolt(For Strut Rod)
9008011672	90080-11672	Washer(For Rear Suspension Arm)

OEM	Part name	Category
42304-06100	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
42304-48010	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
42305-06100	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
42305-48010	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48231-06381	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48231-06391	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48231-06401	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48258-32021	Insulator, Rear Coil Spring, Lower Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48258-33020	Insulator, Rear Coil Spring, Lower Lh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48341-AA010	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48530-09K90	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48530-80527	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48540-09680	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48540-80010	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48710-06120	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48710-06130	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48710-33100	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48730-07040	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48740-07020	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48740-33100	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48750-06100	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48750-06180	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48753-06011	Cover, Rear Suspension Supoport, No.1 Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48760-06100	Support Assy Rear Suspension, Lh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48760-06180	Support Assy Rear Suspension, Lh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48780-06030	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48780-07020	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48812-06080	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48812-06090	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48818-12170	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48830-06060	Link Assy, Rear Stabilizer, Rh	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
48832-06110	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90080-10398	Bolt (For Rear Axle Carrier Rh)	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90080-11133	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90080-11672	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90080-11674	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90080-17213	Nut (For Rear Axle Carrier Rh)	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90080-17217	Nut(For Front Support To Front Shock Absorber Rh)	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90080-17223	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90080-17227	Nut(For Rear Stabilizer Link)	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90119-A0120	New Genuine Part	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90178-08007	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90178-A0002	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90178-A0011	Nut(For Strut Rod)	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90179-A0004	Nut(For Strut Rod)	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([02.2006 - ] (0602- )NAP)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 184
Collected: 2026-08-02
