Search › Model › ASV40

ASV40

Toyota CAMRY-VISTA-AURION · 2009 · 4,197 parts · 184 categories

4,197 items

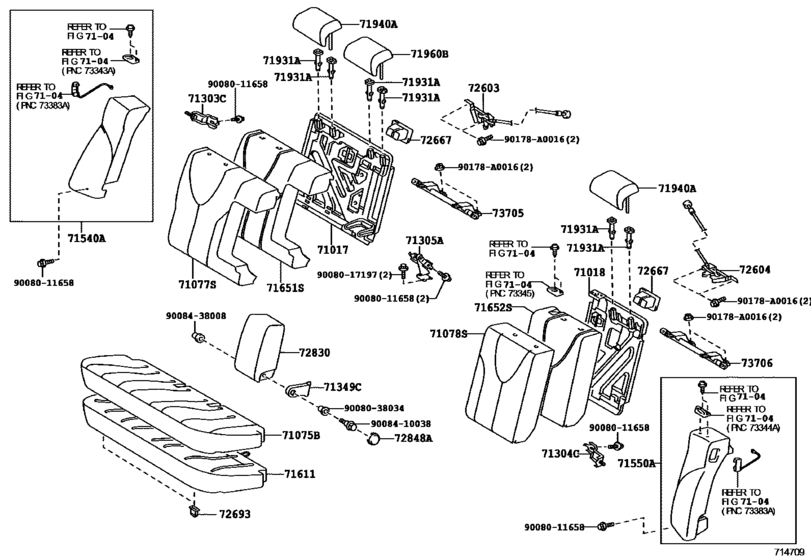

Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE) 53

#	OEM	Part name
71017	71017-06090	Frame Sub-Assy, Rear Seat Back, Rh
71018	71018-06050	Frame Sub-Assy, Rear Seat Back, Lh
71075	71075-06670-B1	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-06870-B0	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-06670-E1	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-06870-E0	Cover, Rear Seat Cushion (For Bench Type)
71077	71077-06780-B0	Cover, Rear Seat Back, Rh (For Separate Type)
71077	71077-06780-E0	Cover, Rear Seat Back, Rh (For Separate Type)
71078	71078-06420-B0	Cover, Rear Seat Back, Lh(For Separate Type)
71078	71078-06420-E0	Cover, Rear Seat Back, Lh(For Separate Type)
71303	71303-06010	Hinge Sub-Assy, Rear Seat Back, Rh
71305	71305-06010	Hinge Sub-Assy, Rear Seat Back, Center
71349	71349-06010	Cover, Rear Seat Back Hinge
71540	71540-06260-B0	Back Assy, Rear Side Seat, Rh
71540	71540-06260-E0	Back Assy, Rear Side Seat, Rh
71550	71550-06250-B0	Back Assy, Rear Side Seat, Lh
71550	71550-06250-E0	Back Assy, Rear Side Seat, Lh
71611	71503-06090	Pad, Rear Seat Cushion
71651	71651-06090	Pad, Rear Seat Back, Rh(For Separate Type)
71652	71652-06060	Pad, Rear Seat Back, Lh(For Separate Type)
71931	71930-42020-B7	Support, Front Seat Headrest
71931	71930-52030-B1	Support, Front Seat Headrest
71931	71930-42020-E1	Support Assy, Front Seat Headrest
71931	71930-52030-E0	Support Assy, Front Seat Headrest
71931	71931-42020-B7	Support, Front Seat Headrest
71931	71931-42020-E1	Support Assy, Front Seat Headrest
71940	71940-06640-B0	Headrest Assy, Rear Seat
71940	71940-06640-E0	Headrest Assy, Rear Seat
71940	71940-06700-B0	Headrest Assy, Rear Seat
71940	71940-06701-B0	Headrest Assy, Rear Seat
71940	71940-06700-E0	Headrest Assy, Rear Seat
71940	71940-06701-E0	Headrest Assy, Rear Seat
71960	71960-06010-B2	Headrest Assy, Rear Seat, Center
71960	71960-06010-E2	Headrest Assy, Rear Seat, Center
71960	71960-06300-B0	Headrest Assy, Rear Seat, Center
71960	71960-06300-E0	Headrest Assy, Rear Seat, Center
72603	72630-06020	Lock Sub-Assy, Rear Seat Back, Rh
72604	72640-06020	Lock Sub-Assy, Rear Seat Back, Lh
72667	72667-06010	Bezel, Rear Seat Back Lock, Upper
72693	72693-12080	Hook, Rear Seat Cushion Lock
72830	72830-06210-B2	Armrest Assy, Rear Seat, Center
72830	72830-06210-E2	Armrest Assy, Rear Seat, Center
72848	72848-06010	Cap, Seat Armrest, No.1
73705	73705-06020	Bracket Sub-Assy, Child Restraint Seat Anchor, Rh
73705	73705-33030	Bracket Sub-Assy, Child Restraint Seat Anchor, Rh
73706	73706-06020	Bracket Sub-Assy, Child Restraint Seat Anchor, Lh
73706	73706-33030	Bracket Sub-Assy, Child Restraint Seat Anchor, Lh
90178	90178-A0016	New Genuine Part
9008011658	90080-11658	New Genuine Part
9008017197	90080-17197	New Genuine Part
9008038034	90080-38034	Bush (For Rear Seat Center Armrest)
9008410038	90084-10038	New Genuine Part
9008438008	90084-38008	New Genuine Part

OEM	Part name	Category
71017-06090	Frame Sub-Assy, Rear Seat Back, Rh	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71018-06050	Frame Sub-Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71075-06670-B1	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71075-06670-E1	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71075-06870-B0	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71075-06870-E0	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71077-06780-B0	Cover, Rear Seat Back, Rh (For Separate Type)	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71077-06780-E0	Cover, Rear Seat Back, Rh (For Separate Type)	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71078-06420-B0	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71078-06420-E0	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71303-06010	Hinge Sub-Assy, Rear Seat Back, Rh	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71305-06010	Hinge Sub-Assy, Rear Seat Back, Center	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71349-06010	Cover, Rear Seat Back Hinge	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71503-06090	Pad, Rear Seat Cushion	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71540-06260-B0	Back Assy, Rear Side Seat, Rh	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71540-06260-E0	Back Assy, Rear Side Seat, Rh	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71550-06250-B0	Back Assy, Rear Side Seat, Lh	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71550-06250-E0	Back Assy, Rear Side Seat, Lh	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71651-06090	Pad, Rear Seat Back, Rh(For Separate Type)	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71652-06060	Pad, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71930-42020-B7	Support, Front Seat Headrest	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71930-42020-E1	Support Assy, Front Seat Headrest	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71930-52030-B1	Support, Front Seat Headrest	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71930-52030-E0	Support Assy, Front Seat Headrest	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71931-42020-B7	Support, Front Seat Headrest	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71931-42020-E1	Support Assy, Front Seat Headrest	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71940-06640-B0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71940-06640-E0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71940-06700-B0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71940-06700-E0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71940-06701-B0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71940-06701-E0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71960-06010-B2	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71960-06010-E2	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71960-06300-B0	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
71960-06300-E0	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
72630-06020	Lock Sub-Assy, Rear Seat Back, Rh	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
72640-06020	Lock Sub-Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
72667-06010	Bezel, Rear Seat Back Lock, Upper	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
72693-12080	Hook, Rear Seat Cushion Lock	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
72830-06210-B2	Armrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
72830-06210-E2	Armrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
72848-06010	Cap, Seat Armrest, No.1	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
73705-06020	Bracket Sub-Assy, Child Restraint Seat Anchor, Rh	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
73705-33030	Bracket Sub-Assy, Child Restraint Seat Anchor, Rh	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
73706-06020	Bracket Sub-Assy, Child Restraint Seat Anchor, Lh	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
73706-33030	Bracket Sub-Assy, Child Restraint Seat Anchor, Lh	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
90080-11658	New Genuine Part	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
90080-17197	New Genuine Part	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
90080-38034	Bush (For Rear Seat Center Armrest)	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
90084-10038	New Genuine Part	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
90084-38008	New Genuine Part	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)
90178-A0016	New Genuine Part	Rear Seat & Seat Track ([02.2006 - ] 6:4 FOLD DOWN SEAT (0602- )NAP..LE)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 184
Collected: 2026-08-02
