ASV40

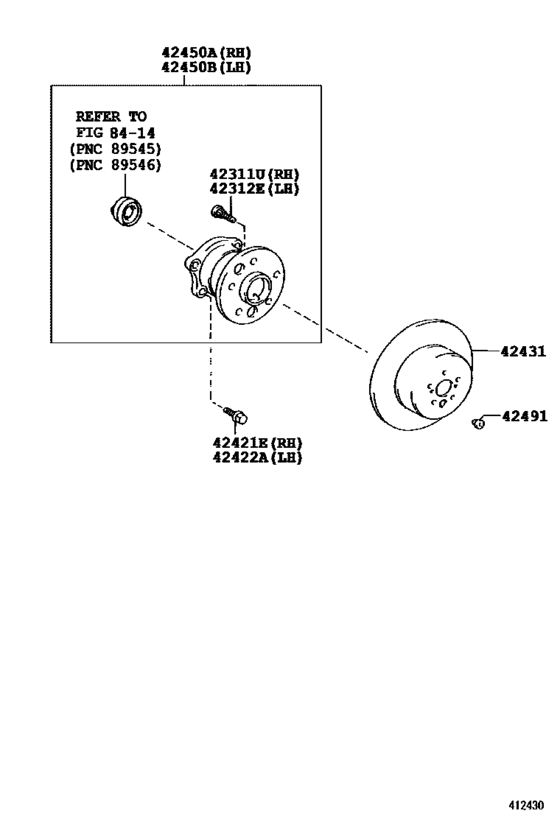

Rear Axle Shaft & Hub ([02.2006 - ] (0602- )NAP) 9
| # | OEM | Part name |
|---|---|---|
| 42311 | 90942-02049 | Bolt, Hub |
| 42311 | 90942-02082 | Bolt, Hub |
| 42421 | 90105-A0021 | Bolt (For Rear Axle Bearing Case Rh) |
| 42431 | 42431-06110 | Disc, Rear |
| 42450 | 42450-06021 | Hub & Bearing Assy, Rear Axle, Rh |
| 42450 | 42450-48011 | Hub & Bearing Assy, Rear Axle, Rh |
| 42450 | 42460-06021 | Hub & Bearing Assy, Rear Axle, Lh |
| 42450 | 42460-48011 | Hub & Bearing Assy, Rear Axle, Lh |
| 42491 | 47491-22020 | Plug, Shoe Adjusting Hole (For Parking Brake) |
| OEM | Part name | Category |
|---|---|---|
| 42431-06110 | Disc, Rear | Rear Axle Shaft & Hub ([02.2006 - ] (0602- )NAP) |
| 42450-06021 | Hub & Bearing Assy, Rear Axle, Rh | Rear Axle Shaft & Hub ([02.2006 - ] (0602- )NAP) |
| 42450-48011 | Hub & Bearing Assy, Rear Axle, Rh | Rear Axle Shaft & Hub ([02.2006 - ] (0602- )NAP) |
| 42460-06021 | Hub & Bearing Assy, Rear Axle, Lh | Rear Axle Shaft & Hub ([02.2006 - ] (0602- )NAP) |
| 42460-48011 | Hub & Bearing Assy, Rear Axle, Lh | Rear Axle Shaft & Hub ([02.2006 - ] (0602- )NAP) |
| 47491-22020 | Plug, Shoe Adjusting Hole (For Parking Brake) | Rear Axle Shaft & Hub ([02.2006 - ] (0602- )NAP) |
| 90105-A0021 | Bolt (For Rear Axle Bearing Case Rh) | Rear Axle Shaft & Hub ([02.2006 - ] (0602- )NAP) |
| 90942-02049 | Bolt, Hub | Rear Axle Shaft & Hub ([02.2006 - ] (0602- )NAP) |
| 90942-02082 | Bolt, Hub | Rear Axle Shaft & Hub ([02.2006 - ] (0602- )NAP) |
