ASV40

Toyota CAMRY-VISTA-AURION · 2009 · 4,197 parts · 184 categories

← Back to categories

4,197 items

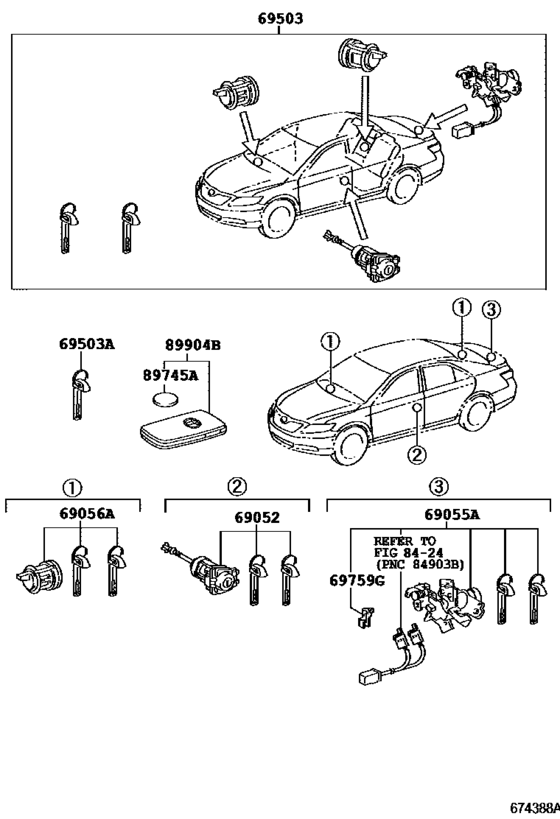

Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE) 16

#	OEM	Part name
69052	69052-06050	Cylinder & Key Set, Door Lock, Lh
69052	69052-33300	Cylinder & Key Set, Door Lock, Lh
69055	69055-06070	Cylinder & Key Set, Luggage Compartment Lock
69055	69055-33460	Cylinder & Key Set, Luggage Compartment Lock
69056	69056-06040	Cylinder & Key Set, Glove Compartment Lock
69056	69056-33200	Cylinder & Key Set, Glove Compartment Lock
69503	69005-06220	Cylinder Set, Lock
69503	69005-06281	Cylinder Set, Lock
69503	69005-06282	Cylinder Set, Lock
69503	69515-52120	Key, Blank
69759	69759-06020	Snap, Rear Door Lock Control Link
69759	69759-24080	Snap, Front Door Lock Control Rod
89745	89745-48030	Battery, Transmitter
89745	89745-52020	Battery, Transmitter
89904	89904-06070	Transmitter Sub-Assy, Electrical Key
89904	89904-06130	Transmitter Sub-Assy, Electrical Key

OEM	Part name	Category
69005-06220	Cylinder Set, Lock	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
69005-06281	Cylinder Set, Lock	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
69005-06282	Cylinder Set, Lock	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
69052-06050	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
69052-33300	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
69055-06070	Cylinder & Key Set, Luggage Compartment Lock	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
69055-33460	Cylinder & Key Set, Luggage Compartment Lock	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
69056-06040	Cylinder & Key Set, Glove Compartment Lock	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
69056-33200	Cylinder & Key Set, Glove Compartment Lock	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
69515-52120	Key, Blank	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
69759-06020	Snap, Rear Door Lock Control Link	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
69759-24080	Snap, Front Door Lock Control Rod	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
89745-48030	Battery, Transmitter	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
89745-52020	Battery, Transmitter	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
89904-06070	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)
89904-06130	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([02.2006 - ] W(STARTING SYSTEM-PUSH BUTTON) (0602- )NAP..6FC..SE,XLE)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 184
Collected: 2026-08-02
