ASV40

Toyota CAMRY-VISTA-AURION · 2009 · 4,197 parts · 184 categories
ASV40 ×

← Back to categories

4,197 items

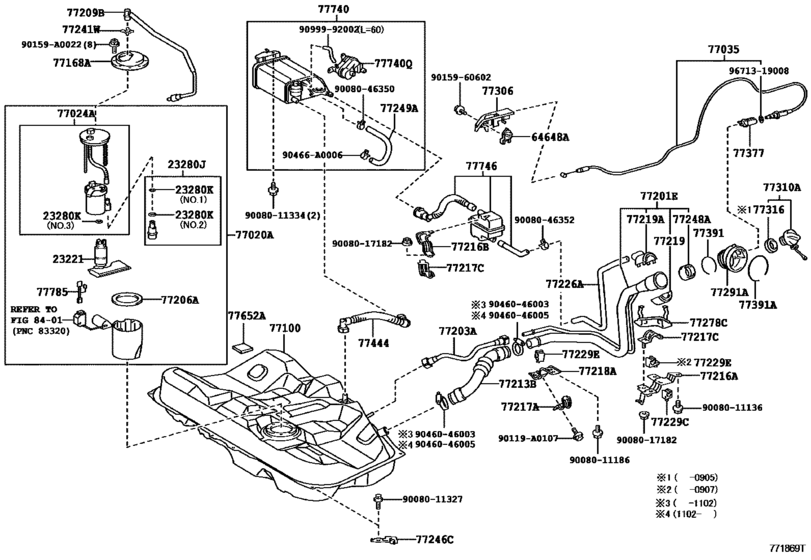

Fuel Tank & Tube ([02.2006 - ] FUEL TANK (0602- )ACV40,ASV40..NAP) 81
#OEMPart name
23221 23220-0H061 Pump, Fuel
23221 23220-0H062 Pump, Fuel
23280 23280-21010 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
64648 64648-12020 Grommet, Luggage Door Lock Opener
77020 77020-06121 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-06131 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-06030 Plate Sub-Assy, Fuel Suction
77035 77035-06090 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-06112 Tank Assy, Fuel
77100 77001-06082 Tank Assy, Fuel
77168 77168-33050 Plate, Fuel Tank Vent Tube Set
77201 77201-06080 Pipe Sub-Assy, Fuel Tank Filler
77201 77201-33311 Pipe Sub-Assy, Fuel Tank Filler
77203 77203-06020 Tube Sub-Assy, Fuel Suction
77206 77169-02020 Gasket, Fuel Pump Bracket
77206 77169-33030 Gasket, Fuel Suction Tube Set
77209 77209-06030 Tube Sub-Assy, Fuel Pump
77213 77213-06040 Hose, Fuel Tank To Filler Pipe
77216 77216-06050 Support, Fuel Tank Filler Pipe, No.1
77216 77216-07020 Support, Fuel Tank Filler Pipe, No.2
77216 77205-33030 Support, Fuel Tank Filler Pipe, No.1
77217 77217-06040 Support, Fuel Tank Filler Pipe, No.2
77217 77217-07010 Support, Fuel Tank Filler Pipe, No.2
77217 77217-33030 Support, Fuel Tank Filler Pipe, No.2
77217 77217-33020 Support, Fuel Tank Filler Pipe, No.2
77218 77218-06050 Plate, Fuel Inlet Pipe Set
77218 77218-33052 Support, Fuel Tank Filler Pipe, No.3
77219 77219-06050 Cover, Fuel Tank Filler Pipe
77219 77289-06060 Cover, Fuel Tank Filler Pipe
77226 77226-06020 Tube, Fuel Tank Breather, No.6
77226 77226-33060 Tube, Fuel Tank Breather, No.6
77229 77229-07010 Tube, Fuel Tank Evaporation Vent, No.3
77229 77229-06040 Clamp, Breather Tube
77229 77229-33080 Clamp, Breather Tube
77229 77229-33100 Clamp, Breather Tube
77229 77229-33060 Clamp, Breather Tube
77241 77241-06020 Clip, Tube Joint
77246 77246-06010 Support, Fuel Main Tube
77246 77246-33020 Support, Fuel Main Tube
77248 77248-06020 Holder, Fuel Tank Filler Pipe Cover
77249 77249-07020 Hose, Fuel Emission
77249 77249-07021 Hose, Fuel Emission
77249 77249-06070 Hose, Fuel Emission
77278 77278-07030 Protector, Fuel Tank Filler Pipe, No.2
77278 77278-33020 Protector, Fuel Tank Filler Pipe, No.2
77291 77291-33060 Shield, Fuel Tank Filler Pipe
77306 64606-06020 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-06040 Cap Assy, Fuel Tank
77310 77300-06050 Cap Assy, Fuel Tank
77316 77316-06070 Gasket, Fuel Tank Cap
77316 77316-06090 Gasket, Fuel Tank Cap
77377 77377-AA020 Retainer, Fuel Filler Opening Lid Lock
77391 77391-02041 Ring, Fuel Inlet Box
77391 77391-06010 Ring, Fuel Inlet Box
77444 77404-06050 Hose, Fuel Tank Vent
77652 77652-33020 Cushion, Fuel Tank, No.2
77740 77740-07020 Canister Assy, Charcoal
77740 90910-AF002 Leak Detection Pump Sub-Assy, Charcoal Canister
77740 90910-AF005 Leak Detection Pump Sub-Assy, Charcoal Canister
77740 77740-06210 Canister Assy, Charcoal
77746 77706-07010 Filter Sub-Assy, Charcoal Canister
77746 77706-33030 Filter, Charcoal Canister, No.2
77785 77785-06040 Harness, Fuel Pump
90119 90119-A0107 New Genuine Part
90159 90159-A0022 SCREW WWASHER
90466 90466-A0006 New Genuine Part
9008011136 90080-11136 New Genuine Part
9008011136 90119-10502 BOLT WWASHER
9008011186 90080-11186 New Genuine Part
9008011327 90080-11327 New Genuine Part
9008011334 90080-11334 New Genuine Part
9008017182 90080-17182 NUT FLANGE
9008046350 90080-46350 Clip(For Fuel Vapor Feed Hose)
9008046352 90080-46352 New Genuine Part
9015960602 90159-60602 SCREW
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9099992002 90999-92002 Air Hose (300 mm)
9671319008 96713-19008 New Genuine Part
