Search › Model › ASV40

ASV40

Toyota CAMRY-VISTA-AURION · 2009 · 4,197 parts · 184 categories

4,197 items

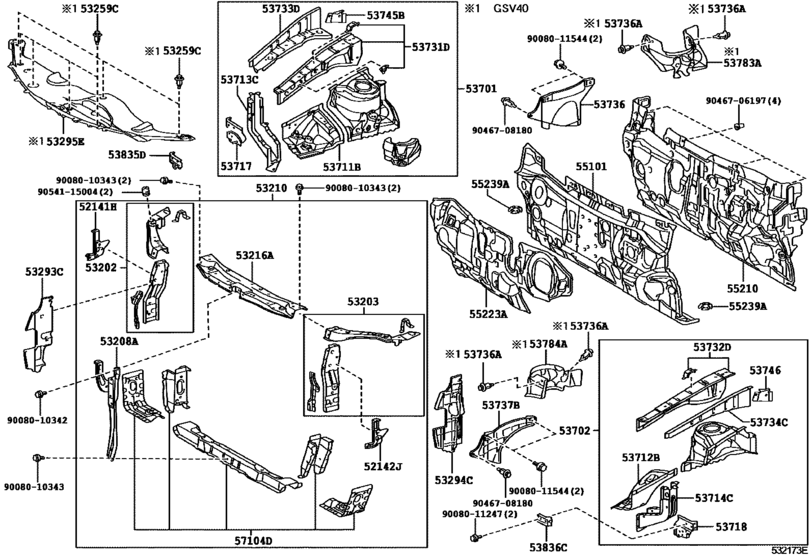

Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP) 46

#	OEM	Part name
52141	52141-06020	Arm, Front Bumper, Upper Rh
52142	52142-06020	Arm, Front Bumper, Upper Lh
53202	53202-06050	Support Sub-Assy, Radiator, Rh
53202	53202-06051	Support Sub-Assy, Radiator, Rh
53203	53203-06090	Support Sub-Assy, Radiator, Lh
53203	53203-06091	Support Sub-Assy, Radiator, Lh
53208	53208-06020	Support Sub-Assy, Hood Lock
53210	53210-06030	Support Assy, Radiator
53210	53210-06032	Support Assy, Radiator
53210	53210-06031	Support Assy, Radiator
53216	53216-06080	Support, Radiator, Upper
53293	53293-06140	Deflector, Radiator Side, Rh
53294	53294-06130	Deflector, Radiator Side, Lh
53701	53701-06090	Apron Sub-Assy, Front Fender, Rh
53702	53702-06100	Apron Sub-Assy, Front Fender, Lh
53711	53711-06110	Apron, Front Fender, Front Rh
53712	53712-07020	Apron, Front Fender, Front Lh
53713	53713-07010	Extension, Front Fender Apron, Front Rh
53714	53714-07010	Extension, Front Fender Apron, Front Lh
53717	53717-06030	Plate, Fender Apron, Rh
53718	53718-06030	Plate, Fender Apron, Lh
53731	53731-07904	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-07904	Member, Front Apron To Cowl Side, Upper Lh
53733	53733-07020	Member, Front Apron To Cowl Side, Lower Front Rh
53734	53734-07020	Member, Front Apron To Cowl Side, Lower Front Lh
53736	53736-07021	Seal, Front Fender Apron, Rh
53737	53737-06040	Seal, Front Fender Apron, Lh
53745	53745-07010	Reinforcement, Front Fender Apron, Rear Rh
53746	53746-07010	Reinforcement, Front Fender Apron, Rear Lh
53835	53835-06020	Bracket, Front Side Panel, Rh
53836	53836-06020	Bracket, Front Side Panel, Lh
55101	55101-06310	Panel Sub-Assy, Dash
55210	55210-06130	Insulator Assy, Dash Panel
55210	55210-06131	Insulator Assy, Dash Panel
55223	55223-06080	Insulator, Dash Panel, Outer
55223	55223-06090	Insulator, Dash Panel, Outer
55239	55239-06020	Plate, Dash Panel Insulator, No.3
57104	57104-07021	Member Sub-Assy, Front Cross
57104	57104-07022	Member Sub-Assy, Front Cross
9008010342	90080-10342	New Genuine Part
9008010343	90080-10343	BOLT
9008011247	90080-11247	New Genuine Part
9008011544	90080-11544	New Genuine Part
9046706197	90467-06197	Clip
9046708180	90467-08180	Clip(For Front Bumper Retainer)
9054115004	90541-15004	Cushion, Hood Bumper

OEM	Part name	Category
52141-06020	Arm, Front Bumper, Upper Rh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
52142-06020	Arm, Front Bumper, Upper Lh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53202-06050	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53202-06051	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53203-06090	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53203-06091	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53208-06020	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53210-06030	Support Assy, Radiator	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53210-06031	Support Assy, Radiator	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53210-06032	Support Assy, Radiator	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53216-06080	Support, Radiator, Upper	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53293-06140	Deflector, Radiator Side, Rh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53294-06130	Deflector, Radiator Side, Lh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53701-06090	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53702-06100	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53711-06110	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53712-07020	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53713-07010	Extension, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53714-07010	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53717-06030	Plate, Fender Apron, Rh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53718-06030	Plate, Fender Apron, Lh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53731-07904	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53732-07904	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53733-07020	Member, Front Apron To Cowl Side, Lower Front Rh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53734-07020	Member, Front Apron To Cowl Side, Lower Front Lh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53736-07021	Seal, Front Fender Apron, Rh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53737-06040	Seal, Front Fender Apron, Lh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53745-07010	Reinforcement, Front Fender Apron, Rear Rh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53746-07010	Reinforcement, Front Fender Apron, Rear Lh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53835-06020	Bracket, Front Side Panel, Rh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
53836-06020	Bracket, Front Side Panel, Lh	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
55101-06310	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
55210-06130	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
55210-06131	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
55223-06080	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
55223-06090	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
55239-06020	Plate, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
57104-07021	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
57104-07022	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
90080-10342	New Genuine Part	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
90080-10343	BOLT	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
90080-11247	New Genuine Part	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
90080-11544	New Genuine Part	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
90467-06197	Clip	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
90467-08180	Clip(For Front Bumper Retainer)	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)
90541-15004	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([02.2006 - ] (0602- )NAP)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 184
Collected: 2026-08-02
