Search › Model › ASV40

ASV40

Toyota CAMRY-VISTA-AURION · 2009 · 4,197 parts · 184 categories

4,197 items

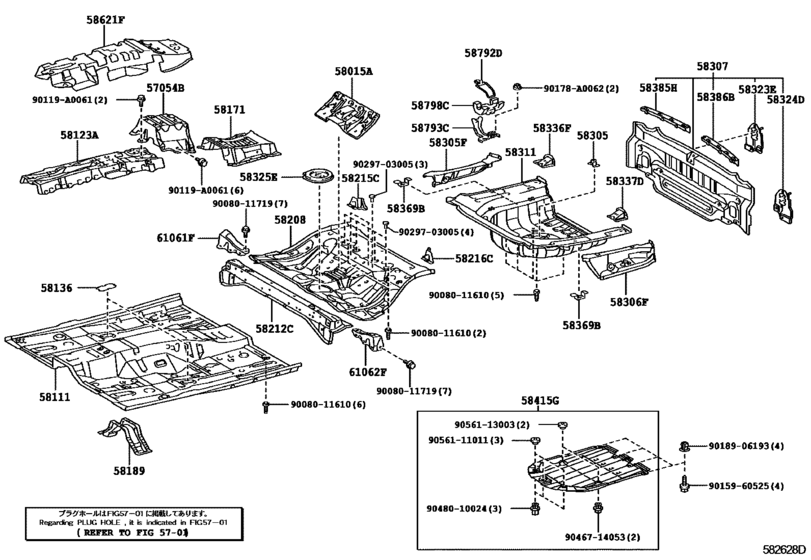

Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP) 44

#	OEM	Part name
57054	57054-06010	Reinforcet Sub-Assy, Cross Member Floor, No.4
58015	58015-06050	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58015	58015-06040	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58111	58111-06060	Pan, Front Floor
58111	58111-06061	Pan, Front Floor
58123	58013-06050	Support, Shift & Select Lever
58136	58136-06050	Cover, Front Floor Hole
58171	58171-06040	Reinforcement, Parking Brake Base
58189	58189-07030	Reinforcement, Exhaust Pipe Clamp Bracket
58208	58211-07070	Pan, Center Floor
58212	58202-06010	Pan, Center Floor, Front
58215	58215-06020	Reinforcement, Center Floor Panel, No.2 Rh
58216	58216-06020	Reinforcement, Center Floor Panel, No.2 Lh
58305	58351-33010	Bracket Sub-Assy, Spare Wheel Clamp
58305	58305-06090	Panel Sub-Assy, Rear Floor Side, Rh
58306	58306-07010	Panel Sub-Assy, Rear Floor Side, Lh
58307	58307-06100	Panel Sub-Assy, Body Lower Back
58311	58311-07030	Pan, Rear Floor
58323	58323-06020	Reinforcement, Rear Bumper Arm Support, Rh
58324	58324-06020	Reinforcement, Rear Bumper Arm Support, Lh
58325	58325-06050	Cover, Rear Floor Service Hole
58336	58336-07010	Reinforcement, Rear Floor Pan, Rh
58337	58337-07010	Reinforcement, Rear Floor Pan, Lh
58369	58369-06010	Bracket, Fuel Tube, No.3
58385	58385-06030	Bracket, Rear Bumper Cover, No.1
58386	58386-06010	Bracket, Rear Bumper Cover, No.2
58415	58415-06010	Board, Rear Floor, No.1
58621	58621-06060	Silencer, Center Console, No.1
58792	58792-06030	Support, Jack
58793	58793-06010	Bracket, Jack Carrier, No.1
58798	58798-06010	Cushion, Jack Carrier
61061	61061-06020	Gusset Sub-Assy, Quarter Wheel House, No.1
61062	61062-06020	Gusset Sub-Assy, Quarter Wheel House, No.2
90119	90119-A0061	New Genuine Part
90178	90178-A0062	New Genuine Part
9008011610	90080-11610	Bolt, Weld(For Front Floor Pan)
9008011719	90080-11719	New Genuine Part
9015960525	90159-60525	SCREW WWASHER
9018906193	90189-06193	Grommet(For Engine Under Cover)
9029703005	90297-03005	New Genuine Part
9046714053	90467-14053	Clip, No.1(For Floor Under Cover)
9048010024	90480-10024	Clip, No.2(For Floor Under Cover)
9056111011	90561-11011	Clip, No.1(For Floor Under Cover)
9056113003	90561-13003	Clip, No.4(For Floor Under Cover)

OEM	Part name	Category
57054-06010	Reinforcet Sub-Assy, Cross Member Floor, No.4	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58013-06050	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58015-06040	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58015-06050	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58111-06060	Pan, Front Floor	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58111-06061	Pan, Front Floor	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58136-06050	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58171-06040	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58189-07030	Reinforcement, Exhaust Pipe Clamp Bracket	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58202-06010	Pan, Center Floor, Front	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58211-07070	Pan, Center Floor	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58215-06020	Reinforcement, Center Floor Panel, No.2 Rh	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58216-06020	Reinforcement, Center Floor Panel, No.2 Lh	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58305-06090	Panel Sub-Assy, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58306-07010	Panel Sub-Assy, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58307-06100	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58311-07030	Pan, Rear Floor	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58323-06020	Reinforcement, Rear Bumper Arm Support, Rh	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58324-06020	Reinforcement, Rear Bumper Arm Support, Lh	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58325-06050	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58336-07010	Reinforcement, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58337-07010	Reinforcement, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58351-33010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58369-06010	Bracket, Fuel Tube, No.3	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58385-06030	Bracket, Rear Bumper Cover, No.1	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58386-06010	Bracket, Rear Bumper Cover, No.2	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58415-06010	Board, Rear Floor, No.1	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58621-06060	Silencer, Center Console, No.1	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58792-06030	Support, Jack	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58793-06010	Bracket, Jack Carrier, No.1	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
58798-06010	Cushion, Jack Carrier	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
61061-06020	Gusset Sub-Assy, Quarter Wheel House, No.1	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
61062-06020	Gusset Sub-Assy, Quarter Wheel House, No.2	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
90080-11610	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
90080-11719	New Genuine Part	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
90119-A0061	New Genuine Part	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
90159-60525	SCREW WWASHER	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
90178-A0062	New Genuine Part	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
90189-06193	Grommet(For Engine Under Cover)	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
90297-03005	New Genuine Part	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
90467-14053	Clip, No.1(For Floor Under Cover)	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
90480-10024	Clip, No.2(For Floor Under Cover)	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
90561-11011	Clip, No.1(For Floor Under Cover)	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
90561-13003	Clip, No.4(For Floor Under Cover)	Floor Pan & Lower Back Panel ([02.2006 - ] (0602- )NAP)
