ASV40

Toyota CAMRY-VISTA-AURION · 2009 · 4,197 parts · 184 categories

4,197 items

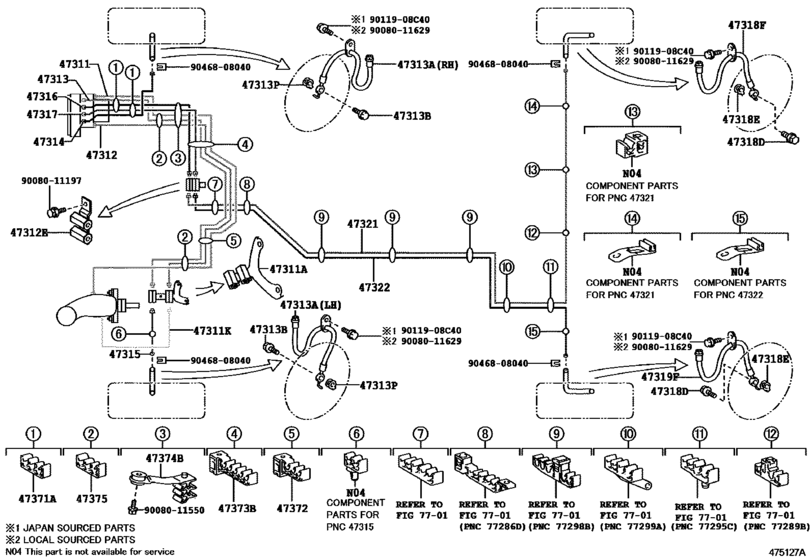

Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP) 32

#	OEM	Part name
44510	44050-06130	Actuator Assy, Brake
44510	44050-06131	Actuator Assy, Brake
44590	44590-06040	Bracket Assy, Brake Actuator
47311	47311-06360	Tube, Front Brake, No.1
47311	90412-10264	Way(For Front Brake Tube)
47311	47311-06270	Tube, Brake Master Cylinder To Way
47312	47312-06270	Tube, Front Brake, No.2
47312	90412-10246	Way, No.2(For Front Brake Tube)
47313	47313-06260	Tube, Front Brake, No.3
47313	90947-A2011	Hose, Flexible, No.1(For Front)
47313	90947-A2012	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50021	Gasket(For Front Flexible Hose)
47314	47314-06250	Tube, Front Brake, No.4
47315	47315-06140	Tube, Front Brake, No.5
47316	47316-06180	Tube, Front Brake, No.6
47317	47317-06160	Tube, Front Brake, No.7
47318	90947-A2017	Hose, Flexible(For Rear Rh)
47319	90947-A2018	Hose, Flexible(For Rear Lh)
47321	47321-06090	Tube, Rear Brake, No.1
47322	47322-06090	Tube, Rear Brake, No.2
47371	90464-00857	Clamp, Brake Tube, No.1
47372	90949-A1013	Clamp, Brake Tube, No.2
47373	90949-A1014	Clamp, Brake Tube, No.3
47374	90949-A4010	Clamp, Brake Tube, No.4
47375	90464-A0003	Clamp, Brake Tube, No.5 - BRAKE TUBE, NO.6
9011908	90119-08C40	New Genuine Part
9008011197	90080-11197	New Genuine Part
9008011509	90080-11509	New Genuine Part
9008011550	90080-11550	New Genuine Part
9008011629	90080-11629	New Genuine Part
9046808040	90468-08040	CLIP

OEM	Part name	Category
44050-06130	Actuator Assy, Brake	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
44050-06131	Actuator Assy, Brake	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
44590-06040	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
47311-06270	Tube, Brake Master Cylinder To Way	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
47311-06360	Tube, Front Brake, No.1	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
47312-06270	Tube, Front Brake, No.2	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
47313-06260	Tube, Front Brake, No.3	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
47314-06250	Tube, Front Brake, No.4	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
47315-06140	Tube, Front Brake, No.5	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
47316-06180	Tube, Front Brake, No.6	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
47317-06160	Tube, Front Brake, No.7	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
47321-06090	Tube, Rear Brake, No.1	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
47322-06090	Tube, Rear Brake, No.2	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
47389-50021	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90080-11197	New Genuine Part	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90080-11509	New Genuine Part	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90080-11550	New Genuine Part	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90080-11629	New Genuine Part	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90119-08C40	New Genuine Part	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90412-10246	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90412-10264	Way(For Front Brake Tube)	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90464-00857	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90464-A0003	Clamp, Brake Tube, No.5 - BRAKE TUBE, NO.6	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90468-08040	CLIP	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90947-A2011	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90947-A2012	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90947-A2017	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90947-A2018	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90949-A1013	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90949-A1014	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
90949-A4010	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([02.2006 - ] W(VSC) (0602- )NAP)
