ASU55

Toyota HIGHLANDER-KLUGER · 2015 · 4,096 parts · 218 categories

← Back to categories

4,096 items

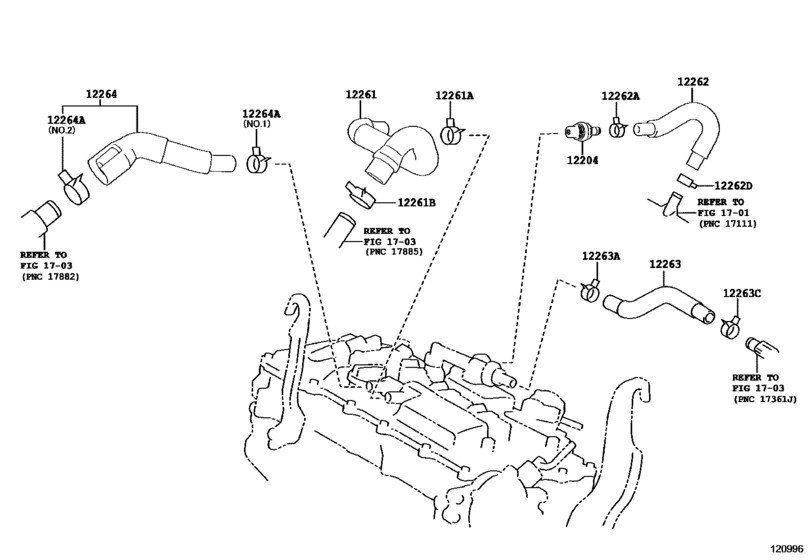

Ventilation Hose ([03.2015 - ] (1503- )8ARFTS) 12

#	OEM	Part name
12204	12204-36050	Valve Sub-Assy, Ventilation
12261	12261-36090	Hose, Ventilation
12261	96137-52501	Clip Or Clamp(For Ventilation Hose)
12261	90466-30001	Clip Or Clamp(For Ventilation Hose)
12261	90466-C0048	Clip Or Clamp(For Ventilation Hose)
12262	12262-36070	Hose, Ventilation, No.2
12262	90466-16004	Clip(For Ventilation Hose No.2)
12262	96137-41901	Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE)
12263	12263-36010	Hose, Ventilation, No.3
12263	96136-52101	Clip(For Ventilation Hose)
12263	90466-C0004	Clip(For Ventilation Hose)
12264	12264-36020	Hose, Ventilation, No.4

OEM	Part name	Category
12204-36050	Valve Sub-Assy, Ventilation	Ventilation Hose ([03.2015 - ] (1503- )8ARFTS)
12261-36090	Hose, Ventilation	Ventilation Hose ([03.2015 - ] (1503- )8ARFTS)
12262-36070	Hose, Ventilation, No.2	Ventilation Hose ([03.2015 - ] (1503- )8ARFTS)
12263-36010	Hose, Ventilation, No.3	Ventilation Hose ([03.2015 - ] (1503- )8ARFTS)
12264-36020	Hose, Ventilation, No.4	Ventilation Hose ([03.2015 - ] (1503- )8ARFTS)
90466-16004	Clip(For Ventilation Hose No.2)	Ventilation Hose ([03.2015 - ] (1503- )8ARFTS)
90466-30001	Clip Or Clamp(For Ventilation Hose)	Ventilation Hose ([03.2015 - ] (1503- )8ARFTS)
90466-C0004	Clip(For Ventilation Hose)	Ventilation Hose ([03.2015 - ] (1503- )8ARFTS)
90466-C0048	Clip Or Clamp(For Ventilation Hose)	Ventilation Hose ([03.2015 - ] (1503- )8ARFTS)
96136-52101	Clip(For Ventilation Hose)	Ventilation Hose ([03.2015 - ] (1503- )8ARFTS)
96137-41901	Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE)	Ventilation Hose ([03.2015 - ] (1503- )8ARFTS)
96137-52501	Clip Or Clamp(For Ventilation Hose)	Ventilation Hose ([03.2015 - ] (1503- )8ARFTS)
