Search › Model › ASU55

ASU55

Toyota HIGHLANDER-KLUGER · 2015 · 4,096 parts · 218 categories

4,096 items

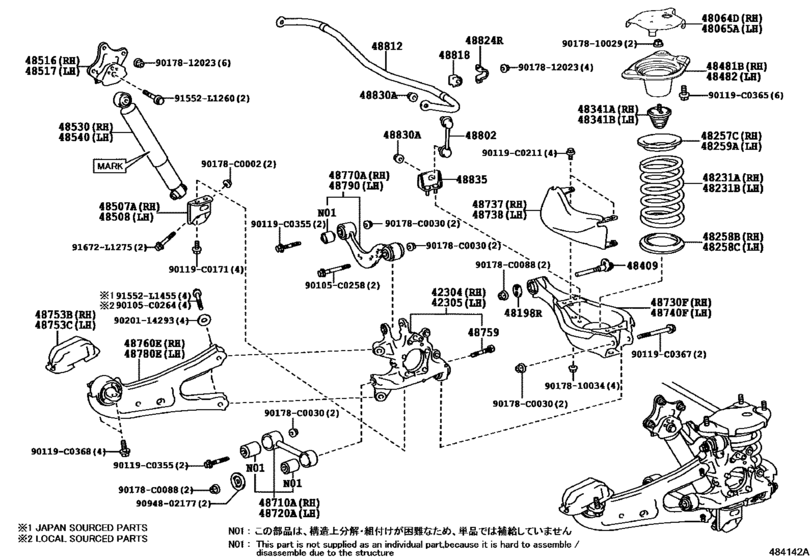

Rear Spring & Shock Absorber ([03.2015 - ] (1503- )) 52

#	OEM	Part name
42304	42304-0E070	Carrier Sub-Assy, Rear Axle, Rh
42305	42305-0E070	Carrier Sub-Assy, Rear Axle, Lh
48064	48064-0E020	Cover Sub-Assy, Rear Suspension Support, Rh
48065	48065-0E020	Cover Sub-Assy, Rear Suspension Support, Lh
48198	48198-0E010	Cam, Camber Adjust, No.2
48231	48231-0E230	Spring, Coil, Rear Rh
48257	48257-0E030	Insulator, Rear Coil Spring, Upper Rh
48258	48258-0E060	Insulator, Rear Coil Spring, Lower Rh
48341	48341-0E040	Bumper, Rear Spring, No.1 Rh
48409	48409-0E030	Cam Sub-Assy, Rear Suspension Toe Adjust
48481	48481-0E020	Seat, Rear Spring, Upper Rh
48482	48482-0E020	Seat, Rear Spring, Upper Lh
48507	48507-0E020	Bracket Sub-Assy, Rear Shock Absorber, Lower Rh
48508	48508-0E020	Bracket Sub-Assy, Rear Shock Absorber, Lower Lh
48516	48516-0E020	Bracket, Rear Shock Absorber, Upper Rh
48517	48517-0E020	Bracket, Rear Shock Absorber, Upper Lh
48530	48531-0E160	Absorber Assy, Shock, Rear Rh
48710	48710-0E070	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-0E090	Arm Assy, Rear Suspension, No.2 Rh
48737	48737-0E020	Cover, Rear Suspension Arm, Rh
48738	48738-0E020	Cover, Rear Suspension Arm, Lh
48753	48753-0E020	Cover, Rear Suspension Supoport, No.1 Rh
48759	48759-0E020	Pin, Lower Control Arm
48760	48760-0E060	Arm Assy, Trailing, Rear Rh
48770	48770-0E020	Arm Assy, Upper Control, Rear Rh
48780	48780-0E070	Arm Assy, Trailing, Rear Lh
48802	48802-0E020	Link Sub-Assy, Stabilizer
48802	48803-0E020	Link Sub-Assy, Stabilizer
48812	48812-0E080	Bar, Stabilizer, Rear
48818	48818-0E070	Bush, Stabilizer, Rear
48824	48832-0E220	Bracket, Stabilizer(For Rear)
48830	90178-C0018	Nut(For Front Stabilizer Link)
48835	48835-0E020	Bracket, Rear Stabilizer, Lower
90105	90105-C0258	New Genuine Part
90105	90105-C0264	Bolt (For Steering Knuckle Rh)
90119	90119-C0171	New Genuine Part
90119	90119-C0211	New Genuine Part
90119	90119-C0355	New Genuine Part
90119	90119-C0365	New Genuine Part
90119	90119-C0367	New Genuine Part
90119	90119-C0368	New Genuine Part
90178	90178-C0002	New Genuine Part
90178	90178-C0030	Nut(For Front Suspension Lower Arm No.1 Rh)
90178	90178-C0088	New Genuine Part
91552	91552-L1260	BOLT FLANGE
91552	91552-L1455	Bolt (For Steering Knuckle Rh)
91672	91672-L1275	BOLT FLANGE
9017810029	90178-10029	Nut(For Front Suspension Support)
9017810034	90178-10034	New Genuine Part
9017812023	90178-12023	NUT FLANGE
9020114293	90201-14293	Washer, Plate(For Timing Gear)
9094802177	90948-02177	Retainer, Cushion(For Front Suspension Upper Arm Rh)

OEM	Part name	Category
42304-0E070	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
42305-0E070	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48064-0E020	Cover Sub-Assy, Rear Suspension Support, Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48065-0E020	Cover Sub-Assy, Rear Suspension Support, Lh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48198-0E010	Cam, Camber Adjust, No.2	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48231-0E230	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48257-0E030	Insulator, Rear Coil Spring, Upper Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48258-0E060	Insulator, Rear Coil Spring, Lower Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48341-0E040	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48409-0E030	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48481-0E020	Seat, Rear Spring, Upper Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48482-0E020	Seat, Rear Spring, Upper Lh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48507-0E020	Bracket Sub-Assy, Rear Shock Absorber, Lower Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48508-0E020	Bracket Sub-Assy, Rear Shock Absorber, Lower Lh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48516-0E020	Bracket, Rear Shock Absorber, Upper Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48517-0E020	Bracket, Rear Shock Absorber, Upper Lh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48531-0E160	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48710-0E070	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48730-0E090	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48737-0E020	Cover, Rear Suspension Arm, Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48738-0E020	Cover, Rear Suspension Arm, Lh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48753-0E020	Cover, Rear Suspension Supoport, No.1 Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48759-0E020	Pin, Lower Control Arm	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48760-0E060	Arm Assy, Trailing, Rear Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48770-0E020	Arm Assy, Upper Control, Rear Rh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48780-0E070	Arm Assy, Trailing, Rear Lh	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48802-0E020	Link Sub-Assy, Stabilizer	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48803-0E020	Link Sub-Assy, Stabilizer	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48812-0E080	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48818-0E070	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48832-0E220	Bracket, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
48835-0E020	Bracket, Rear Stabilizer, Lower	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90105-C0258	New Genuine Part	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90105-C0264	Bolt (For Steering Knuckle Rh)	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90119-C0171	New Genuine Part	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90119-C0211	New Genuine Part	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90119-C0355	New Genuine Part	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90119-C0365	New Genuine Part	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90119-C0367	New Genuine Part	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90119-C0368	New Genuine Part	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90178-10029	Nut(For Front Suspension Support)	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90178-10034	New Genuine Part	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90178-12023	NUT FLANGE	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90178-C0002	New Genuine Part	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90178-C0018	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90178-C0030	Nut(For Front Suspension Lower Arm No.1 Rh)	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90178-C0088	New Genuine Part	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90201-14293	Washer, Plate(For Timing Gear)	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
90948-02177	Retainer, Cushion(For Front Suspension Upper Arm Rh)	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
91552-L1260	BOLT FLANGE	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
91552-L1455	Bolt (For Steering Knuckle Rh)	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
91672-L1275	BOLT FLANGE	Rear Spring & Shock Absorber ([03.2015 - ] (1503- ))
