ASU55

Toyota HIGHLANDER-KLUGER · 2015 · 4,096 parts · 218 categories

4,096 items

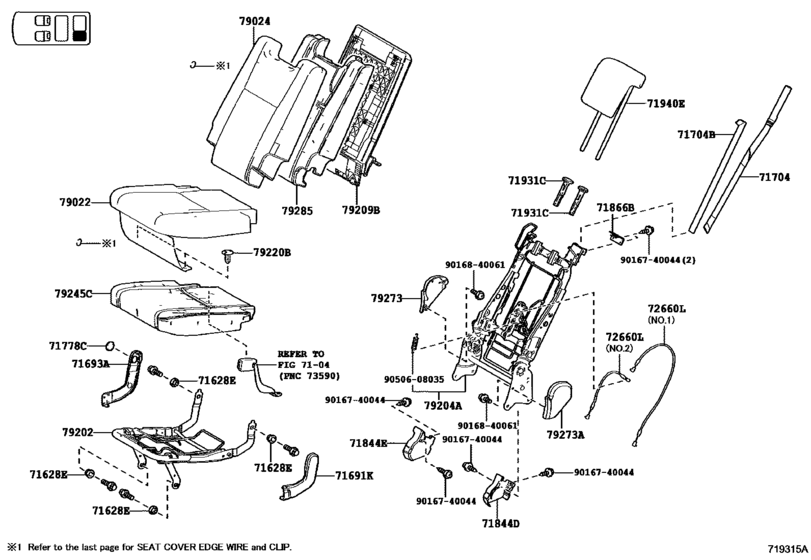

Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- )) 59

#	OEM	Part name
71628	71628-0E020	Spacer, Rear Seat Cushion
71691	71694-0E050-A0	Cover, Rear Seat Cushion Hinge, No.4
71691	71694-0E050-C0	Cover, Rear Seat Cushion Hinge, No.4
71693	71693-0E050-A0	Cover, Rear Seat Cushion Hinge, No.3
71693	71693-0E050-C0	Cover, Rear Seat Cushion Hinge, No.3
71704	71704-0E100-A0	Band Sub-Assy, Rear Side Seat
71704	71704-0E101-A0	Band Sub-Assy, Rear Side Seat
71704	71704-0E102-A0	Band Sub-Assy, Rear Side Seat
71704	71704-0E110-A0	Band Sub-Assy, Rear Side Seat, No.2
71704	71704-0E111-A0	Band Sub-Assy, Rear Side Seat, No.2
71704	71704-0E100-C0	Band Sub-Assy, Rear Side Seat
71704	71704-0E101-C0	Band Sub-Assy, Rear Side Seat
71704	71704-0E102-C0	Band Sub-Assy, Rear Side Seat
71704	71704-0E110-C0	Band Sub-Assy, Rear Side Seat, No.2
71704	71704-0E111-C0	Band Sub-Assy, Rear Side Seat, No.2
71778	71778-0E020-A0	Moulding, Rear Seat Back
71778	71778-0E020-C0	Moulding, Rear Seat Back
71844	71844-0E080-A0	Cover, Rear Seat Reclining, Lh (For Rh Seat)
71844	71843-0E080-A0	Cover, Rear Seat Reclining, Rh (For Rh Seat)
71844	71844-0E080-C0	Cover, Rear Seat Reclining, Lh (For Rh Seat)
71844	71843-0E080-C0	Cover, Rear Seat Reclining, Rh (For Rh Seat)
71866	71865-0E010-A0	Bezel, Rear Seat Cover, No.2
71866	71865-0E010-C0	Bezel, Rear Seat Cover, No.1
71931	71930-47020-A7	Support, Front Seat Headrest
71931	71931-47020-A7	Support, Front Seat Headrest
71931	71930-47020-C0	Support, Front Seat Headrest
71931	71931-47020-C0	Support, Front Seat Headrest
71940	71970-0E200-A1	Headrest Assy, No.2 Seat
71940	71970-0E201-A1	Headrest Assy, No.2 Seat
71940	71970-0E200-C2	Headrest Assy, No.2 Seat
71940	71970-0E201-C2	Headrest Assy, No.2 Seat
72660	72660-0E080	Cable Assy, Rear No.2 Seat Cushion Lock, Rh
72660	72660-0E100	Cable Assy, Rear No.2 Seat Cushion Lock, Lh
79022	79022-0E090-A1	Cover Sub-Assy, No.2 Seat Cushion, Lh
79022	79022-0E091-A1	Cover Sub-Assy, No.2 Seat Cushion, Lh
79022	79022-0E100-A1	Cover Sub-Assy, No.2 Seat Cushion, Lh
79022	79022-0E101-A1	Cover Sub-Assy, No.2 Seat Cushion, Lh
79022	79022-0E100-C1	Cover Sub-Assy, No.2 Seat Cushion, Lh
79022	79022-0E101-C1	Cover Sub-Assy, No.2 Seat Cushion, Lh
79024	79024-0E090-A1	Cover Sub-Assy, No.2 Seat Back, Lh
79024	79024-0E091-A1	Cover Sub-Assy, No.2 Seat Back, Lh
79024	79024-0E100-A1	Cover Sub-Assy, No.2 Seat Back, Lh
79024	79024-0E100-C2	Cover Sub-Assy, No.2 Seat Back, Lh
79024	79024-0E101-A1	Cover Sub-Assy, No.2 Seat Back, Lh
79024	79024-0E101-C2	Cover Sub-Assy, No.2 Seat Back, Lh
79202	79202-0E040	Frame Sub-Assy, No.2 Seat Cushion, Lh
79204	79204-0E110	Frame Sub-Assy, No.2 Seat Back, Lh
79209	79207-0E110-A0	Board Sub-Assy, No.2 Seat Back, Lh
79209	79207-0E110-C0	Board Sub-Assy, No.2 Seat Back, Lh
79220	90467-C0012-C0	Clip
79245	79245-0E020	Pad, No.2 Seat Cushion, Lh
79273	79273-0E160-A0	Cover, No.2 Seat Hinge
79273	79273-0E170-A0	Cover, No.2 Seat Hinge, No.2
79273	79273-0E160-C0	Cover, No.2 Seat Hinge
79273	79273-0E170-C0	Cover, No.2 Seat Hinge, No.2
79285	79285-0E020	Pad, No.2 Seat Back, Lh
9016740044	90167-40044	BOLT
9016840061	90168-40061	SCREW
9050608035	90506-08035	New Genuine Part

OEM	Part name	Category
71628-0E020	Spacer, Rear Seat Cushion	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71693-0E050-A0	Cover, Rear Seat Cushion Hinge, No.3	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71693-0E050-C0	Cover, Rear Seat Cushion Hinge, No.3	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71694-0E050-A0	Cover, Rear Seat Cushion Hinge, No.4	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71694-0E050-C0	Cover, Rear Seat Cushion Hinge, No.4	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71704-0E100-A0	Band Sub-Assy, Rear Side Seat	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71704-0E100-C0	Band Sub-Assy, Rear Side Seat	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71704-0E101-A0	Band Sub-Assy, Rear Side Seat	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71704-0E101-C0	Band Sub-Assy, Rear Side Seat	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71704-0E102-A0	Band Sub-Assy, Rear Side Seat	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71704-0E102-C0	Band Sub-Assy, Rear Side Seat	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71704-0E110-A0	Band Sub-Assy, Rear Side Seat, No.2	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71704-0E110-C0	Band Sub-Assy, Rear Side Seat, No.2	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71704-0E111-A0	Band Sub-Assy, Rear Side Seat, No.2	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71704-0E111-C0	Band Sub-Assy, Rear Side Seat, No.2	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71778-0E020-A0	Moulding, Rear Seat Back	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71778-0E020-C0	Moulding, Rear Seat Back	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71843-0E080-A0	Cover, Rear Seat Reclining, Rh (For Rh Seat)	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71843-0E080-C0	Cover, Rear Seat Reclining, Rh (For Rh Seat)	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71844-0E080-A0	Cover, Rear Seat Reclining, Lh (For Rh Seat)	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71844-0E080-C0	Cover, Rear Seat Reclining, Lh (For Rh Seat)	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71865-0E010-A0	Bezel, Rear Seat Cover, No.2	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71865-0E010-C0	Bezel, Rear Seat Cover, No.1	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71930-47020-A7	Support, Front Seat Headrest	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71930-47020-C0	Support, Front Seat Headrest	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71931-47020-A7	Support, Front Seat Headrest	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71931-47020-C0	Support, Front Seat Headrest	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71970-0E200-A1	Headrest Assy, No.2 Seat	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71970-0E200-C2	Headrest Assy, No.2 Seat	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71970-0E201-A1	Headrest Assy, No.2 Seat	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
71970-0E201-C2	Headrest Assy, No.2 Seat	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
72660-0E080	Cable Assy, Rear No.2 Seat Cushion Lock, Rh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
72660-0E100	Cable Assy, Rear No.2 Seat Cushion Lock, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79022-0E090-A1	Cover Sub-Assy, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79022-0E091-A1	Cover Sub-Assy, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79022-0E100-A1	Cover Sub-Assy, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79022-0E100-C1	Cover Sub-Assy, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79022-0E101-A1	Cover Sub-Assy, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79022-0E101-C1	Cover Sub-Assy, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79024-0E090-A1	Cover Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79024-0E091-A1	Cover Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79024-0E100-A1	Cover Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79024-0E100-C2	Cover Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79024-0E101-A1	Cover Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79024-0E101-C2	Cover Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79202-0E040	Frame Sub-Assy, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79204-0E110	Frame Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79207-0E110-A0	Board Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79207-0E110-C0	Board Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79245-0E020	Pad, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79273-0E160-A0	Cover, No.2 Seat Hinge	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79273-0E160-C0	Cover, No.2 Seat Hinge	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79273-0E170-A0	Cover, No.2 Seat Hinge, No.2	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79273-0E170-C0	Cover, No.2 Seat Hinge, No.2	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
79285-0E020	Pad, No.2 Seat Back, Lh	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
90167-40044	BOLT	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
90168-40061	SCREW	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
90467-C0012-C0	Clip	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
90506-08035	New Genuine Part	Rear Seat & Seat Track ([03.2015 - ] REAR NO.2 SEAT,LH (1503- ))
