ASU55

Toyota HIGHLANDER-KLUGER · 2015 · 4,096 parts · 218 categories

← Back to categories

4,096 items

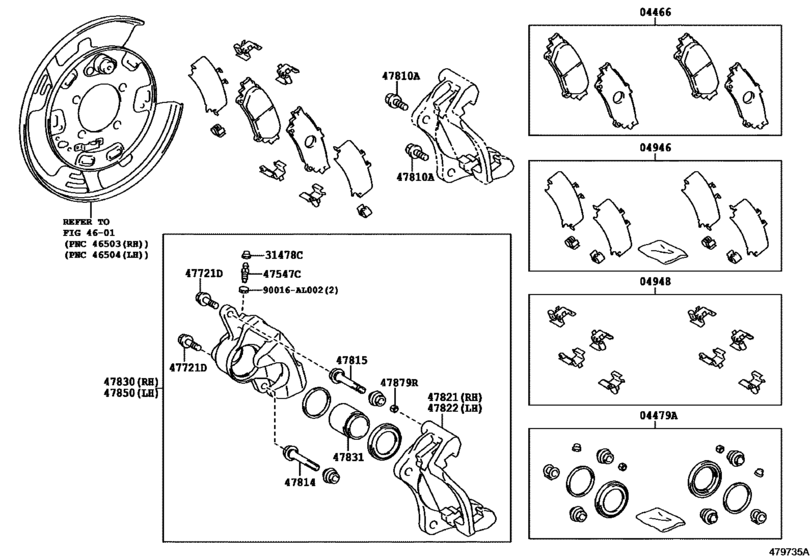

Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- )) 18

#	OEM	Part name
4466	04466-0E040	Pad Kit, Disc Brake, Rear
4479	04479-0E070	Cylinder Kit, Disc Brake, Rear
4946	04946-0E080	Shim Kit, Anti Squeal(For Rear Disc Brake)
4948	04948-0E040	Fitting Kit, Disc Brake, Rear
31478	31478-0E060	Cap, Bleeder Plug(For Rear Disc Brake)
47547	47547-0E060	Plug, Bleeder(For Rear Disc Brake)
47721	90016-AA609	Bolt(For Rear Disc Brake Cylinder Mouting)
47810	90105-C0255	Bolt, Hexagon(For Rear Caliper)
47814	47814-0E080	Pin, Cylinder Slide, No.1(For Rear Disc Brake)
47815	47815-0E080	Pin, Rear Cylinder Slide, No.2(For Rear Disc Brake)
47821	47821-0E080	Mounting, Rear Disc Brake Cylinder, Rh
47822	47822-0E080	Mounting, Rear Disc Brake Cylinder, Lh
47830	47830-0E080	Cylinder Assy, Disc Brake, Rear Rh
47831	47831-0E080	Piston, Rear Disc Brake
47831	47831-48100	Piston, Rear Disc Brake
47850	47850-0E080	Cylinder Assy, Disc Brake, Rear Lh
47879	47879-0E080	Bush, Cylinder Slide, No.2(For Rear Disc Brake)
90016	90016-AL002	New Genuine Part

OEM	Part name	Category
04466-0E040	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
04479-0E070	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
04946-0E080	Shim Kit, Anti Squeal(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
04948-0E040	Fitting Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
31478-0E060	Cap, Bleeder Plug(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
47547-0E060	Plug, Bleeder(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
47814-0E080	Pin, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
47815-0E080	Pin, Rear Cylinder Slide, No.2(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
47821-0E080	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
47822-0E080	Mounting, Rear Disc Brake Cylinder, Lh	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
47830-0E080	Cylinder Assy, Disc Brake, Rear Rh	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
47831-0E080	Piston, Rear Disc Brake	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
47831-48100	Piston, Rear Disc Brake	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
47850-0E080	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
47879-0E080	Bush, Cylinder Slide, No.2(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
90016-AA609	Bolt(For Rear Disc Brake Cylinder Mouting)	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
90016-AL002	New Genuine Part	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
90105-C0255	Bolt, Hexagon(For Rear Caliper)	Rear Disc Brake Caliper & Dust Cover ([03.2015 - ] (1503- ))
