Search › Model › ASU55
ASU55

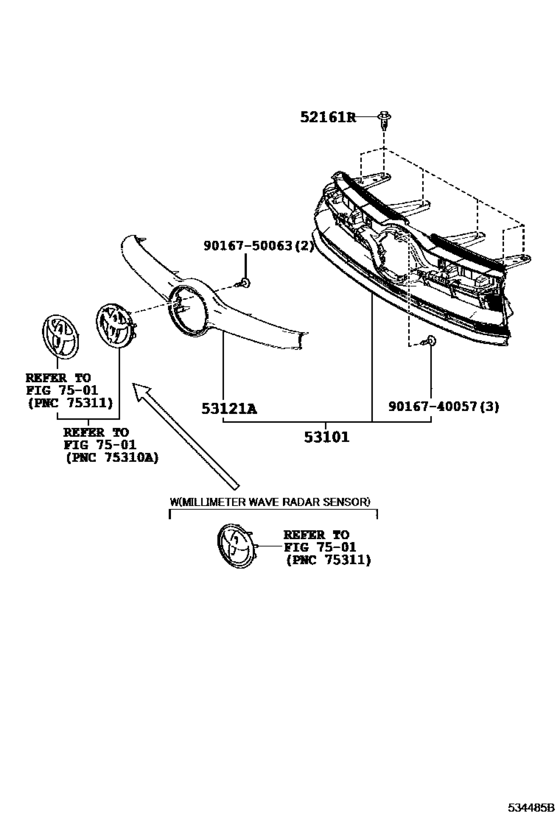

Radiator Grille ([03.2015 - ] (1503- )) 8
| # | OEM | Part name |
|---|---|---|
| 52161 | 52161-02040 | Piece, Rear Bumper |
| 52161 | 52161-16010 | Clip |
| 52161 | 52161-0K040 | Clip |
| 52161 | 52161-02020 | Clip |
| 53101 | 53101-0E200 | Grille Sub-Assy, Radiator |
| 53121 | 53121-0E110 | Moulding, Radiator Grille |
| 9016740057 | 90167-40057 | SCREW, PAN TAPPING |
| 9016750063 | 90167-50063 | SCREW PAN TAPPING |
| OEM | Part name | Category |
|---|---|---|
| 52161-02020 | Clip | Radiator Grille ([03.2015 - ] (1503- )) |
| 52161-02040 | Piece, Rear Bumper | Radiator Grille ([03.2015 - ] (1503- )) |
| 52161-0K040 | Clip | Radiator Grille ([03.2015 - ] (1503- )) |
| 52161-16010 | Clip | Radiator Grille ([03.2015 - ] (1503- )) |
| 53101-0E200 | Grille Sub-Assy, Radiator | Radiator Grille ([03.2015 - ] (1503- )) |
| 53121-0E110 | Moulding, Radiator Grille | Radiator Grille ([03.2015 - ] (1503- )) |
| 90167-40057 | SCREW, PAN TAPPING | Radiator Grille ([03.2015 - ] (1503- )) |
| 90167-50063 | SCREW PAN TAPPING | Radiator Grille ([03.2015 - ] (1503- )) |
