ASU55

Toyota HIGHLANDER-KLUGER · 2015 · 4,096 parts · 218 categories
ASU55 ×

← Back to categories

4,096 items

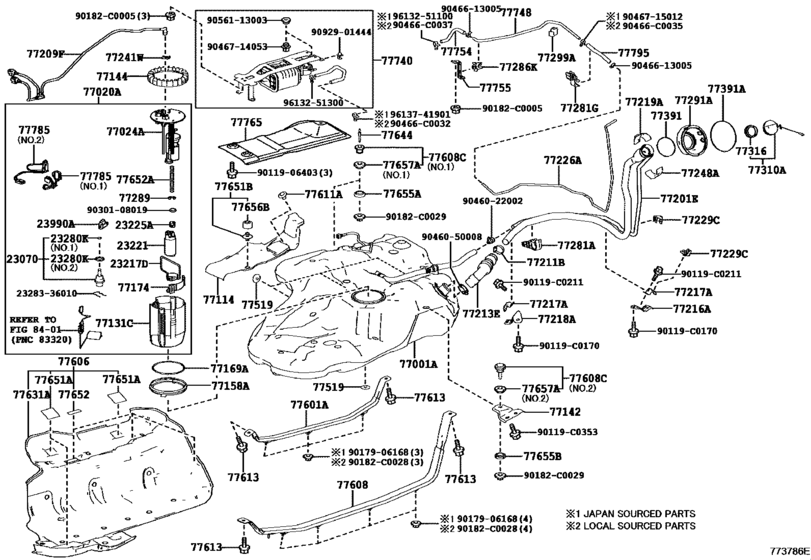

Fuel Tank & Tube ([03.2015 - ] FUEL TANK (1503- )ASU5#) 89
#OEMPart name
23070 23070-36010 Valve Assy, Fuel Main
23217 23217-36010 Filter, Fuel Pump
23221 23221-36030 Pump, Fuel
23225 23225-36020 Spacer, Fuel Pump
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
23990 23990-36010 Valve Assy, Pressure Discharge
77001 77001-0E090 Tank Sub-Assy, Fuel
77020 77020-0E120 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-48080 Plate Sub-Assy, Fuel Suction
77114 77114-0E060 Plate, Fuel Tank Side, Rear
77131 77131-48060 Sub-Tank, Fuel, No.1
77142 77142-0E030 Bracket, Fuel Tank Mounting, Rear
77144 77144-48020 Retainer, Fuel Pump Gauge
77158 77158-48020 Support, Tank Suction Tube
77169 77169-0E020 Gasket, Fuel Suction Tube Set
77174 77174-48030 Support, Fuel Suction, No.1
77201 77201-0E090 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-0E070 Tube Sub-Assy, Fuel Tank Main
77211 90460-40005 Clamp (For Fuel Filler Pipe)
77213 77213-0E060 Hose, Fuel Tank To Filler Pipe
77216 77216-0E050 Support, Fuel Tank Filler Pipe, No.1
77217 77217-0E060 Support, Fuel Tank Filler Pipe, No.2
77218 77218-0E070 Support, Fuel Tank Filler Pipe, No.3
77219 77219-06090 Cover, Fuel Tank Filler Pipe
77226 77226-0E070 Tube, Fuel Tank Breather, No.6
77229 77229-48050 Clamp, Breather Tube
77241 77241-33011 Clip, Tube Joint
77248 77248-06100 Holder, Fuel Tank Filler Pipe Cover
77281 77281-48090 Clamp, Fuel Filler Pipe
77281 77281-48120 Clamp, Fuel Hose
77286 77286-42060 Clamp, Fuel Tube, No.2
77289 77289-52090 Holder, Fuel Tank Pipe Setting
77291 77291-0E070 Shield, Fuel Tank Filler Pipe
77299 77299-48020 Clamp, Breather Tube
77310 77300-02030 Cap Assy, Fuel Tank
77316 77316-0F020 Gasket, Fuel Tank Cap
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-12060 Ring, Fuel Inlet Box
77391 77391-28010 Ring, Fuel Inlet Box
77519 77529-48010 Spacer, Fuel Tank Bracket
77601 77601-0E050 Band Sub-Assy, Fuel Tank, No.1
77606 77606-0E090 Protector Sub-Assy, Fuel Tank, No.1
77608 77602-0E070 Band Sub-Assy, Fuel Tank, No.2
77608 77608-0E060 Cushion Set, Fuel Tank
77608 77608-0E070 Cushion Set, Fuel Tank
77611 77653-0E010 Pin (For Fuel Tank Band)
77613 90119-10971 Bolt, Fuel Tank Band Set
77613 90119-C0353 Bolt, Fuel Tank Band Set
77631 77631-0E050 Protector, Fuel Tank, Lower Center
77644 77644-48010 Bolt, Fuel Tank
77651 77651-0E050 Cushion, Fuel Tank, No.1
77651 77651-0E040 Cushion, Fuel Tank
77652 77652-0E040 Cushion, Fuel Tank, No.1
77652 77652-48030 Cushion, Fuel Tank, No.1
77655 77655-0E050 Cushion, Fuel Tank, No.5
77655 77655-0E060 Cushion, Fuel Tank
77656 77656-0E040 Cushion, Fuel Tank, No.6
77740 77740-0E060 Canister Assy, Charcoal
77748 77748-0E030 Pipe, Charcoal Canister, No.2
77754 77754-0E050 Hose, Charcoal Canister Outlet, No.1
77755 77755-0E040 Bracket, Charcoal Canister Outlet Hose
77765 77765-0E020 Protector, Charcoal Canister
77785 77785-48050 Harness, Fuel Pump
77785 77785-48090 Harness, Fuel Pump
77795 77795-0E030 Hose, Charcoal Canister Outlet, No.2
90119 90119-C0170 New Genuine Part
90119 90119-C0211 New Genuine Part
90182 90182-C0005 New Genuine Part
90182 90182-C0028 New Genuine Part
90182 90182-C0029 New Genuine Part
90466 90466-C0032 Clip(For Ventilation Hose)
90466 90466-C0035 New Genuine Part
90466 90466-C0037 Clip(For Fuel Vapor Feed Hose, No.1)
2328336010 23283-36010 Holder, Fuel Pressure Regulator
9011906403 90119-06403 BOLT W-WASHER
9017906168 90179-06168 Nut & Washer Assy
9030108019 90301-08019 Ring, O(For Fuel Pressure Regulator)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046050008 90460-50008 Clamp (For Fuel Filler Pipe)
9046613005 90466-13005 Clip(For Fuel Vapor Feed Hose, No.1)
9046714053 90467-14053 Clip, No.1(For Floor Under Cover)
9046715012 90467-15012 Clip Or Clamp(For Ventilation Hose)
9056113003 90561-13003 Clip, No.4(For Floor Under Cover)
9092901444 90929-01444 Clamp Or Clip, Fuel Hose(For Efi)
9613251100 96132-51100 Clip (For Hose)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
9613741901 96137-41901 Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE)
