Search › Model › ASU55
ASU55

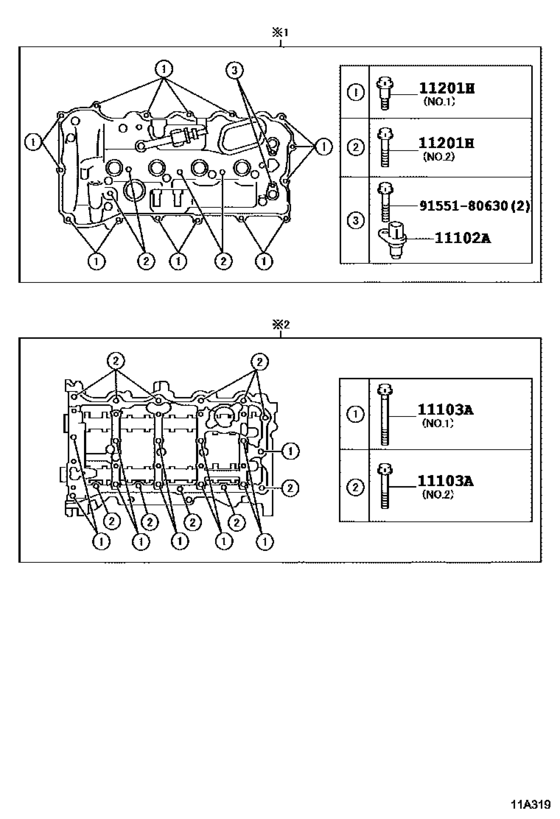

Cylinder Head ([03.2015 - ] FITTING PARTS (1503- )8ARFTS) 5
| # | OEM | Part name |
|---|---|---|
| 11102 | 90919-05073 | Sensor, Camshaft Position - CRANK POSITION |
| 11103 | 90105-08455 | Bolt(For Camshaft Housing Set) |
| 11103 | 91551-G0845 | Bolt(For Camshaft Housing Set) |
| 11201 | 90109-06384 | Bolt(For Cylinder Head Cover) |
| 11201 | 91551-80630 | Bolt(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 90105-08455 | Bolt(For Camshaft Housing Set) | Cylinder Head ([03.2015 - ] FITTING PARTS (1503- )8ARFTS) |
| 90109-06384 | Bolt(For Cylinder Head Cover) | Cylinder Head ([03.2015 - ] FITTING PARTS (1503- )8ARFTS) |
| 90919-05073 | Sensor, Camshaft Position - CRANK POSITION | Cylinder Head ([03.2015 - ] FITTING PARTS (1503- )8ARFTS) |
| 91551-80630 | Bolt(For Cylinder Head Cover) | Cylinder Head ([03.2015 - ] FITTING PARTS (1503- )8ARFTS) |
| 91551-G0845 | Bolt(For Camshaft Housing Set) | Cylinder Head ([03.2015 - ] FITTING PARTS (1503- )8ARFTS) |
