ASU55

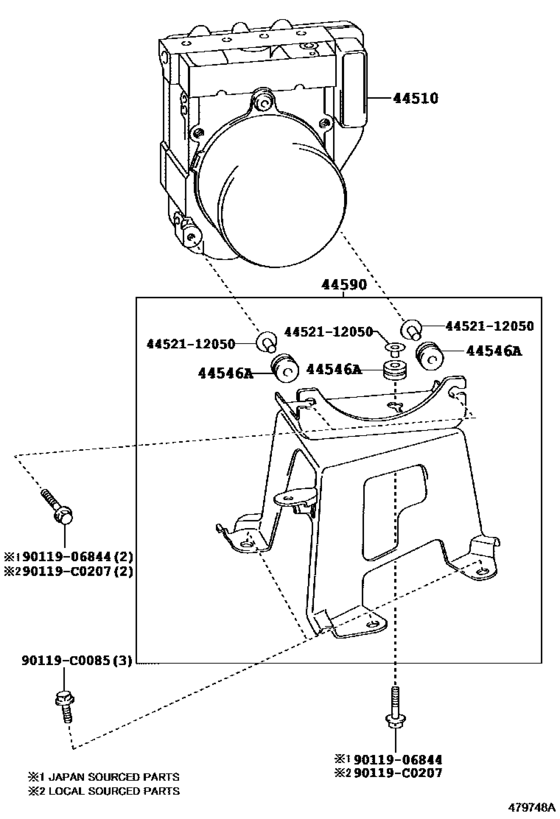

Brake Tube & Clamp ([03.2015 - ] BRAKE ACTUATOR (1503- )) 7
| # | OEM | Part name |
|---|---|---|
| 44510 | 44050-0E230 | Actuator Assy, Brake |
| 44546 | 44546-12110 | Cushion, Brake Actuator Bolt |
| 44590 | 44590-0E020 | Bracket Assy, Brake Actuator |
| 90119 | 90119-C0085 | New Genuine Part |
| 90119 | 90119-C0207 | New Genuine Part |
| 4452112050 | 44521-12050 | Collar, Brake Actuator Case, No.1 |
| 9011906844 | 90119-06844 | Bolt, Brake Actuator Cushion |
| OEM | Part name | Category |
|---|---|---|
| 44050-0E230 | Actuator Assy, Brake | Brake Tube & Clamp ([03.2015 - ] BRAKE ACTUATOR (1503- )) |
| 44521-12050 | Collar, Brake Actuator Case, No.1 | Brake Tube & Clamp ([03.2015 - ] BRAKE ACTUATOR (1503- )) |
| 44546-12110 | Cushion, Brake Actuator Bolt | Brake Tube & Clamp ([03.2015 - ] BRAKE ACTUATOR (1503- )) |
| 44590-0E020 | Bracket Assy, Brake Actuator | Brake Tube & Clamp ([03.2015 - ] BRAKE ACTUATOR (1503- )) |
| 90119-06844 | Bolt, Brake Actuator Cushion | Brake Tube & Clamp ([03.2015 - ] BRAKE ACTUATOR (1503- )) |
| 90119-C0085 | New Genuine Part | Brake Tube & Clamp ([03.2015 - ] BRAKE ACTUATOR (1503- )) |
| 90119-C0207 | New Genuine Part | Brake Tube & Clamp ([03.2015 - ] BRAKE ACTUATOR (1503- )) |
