ASU50

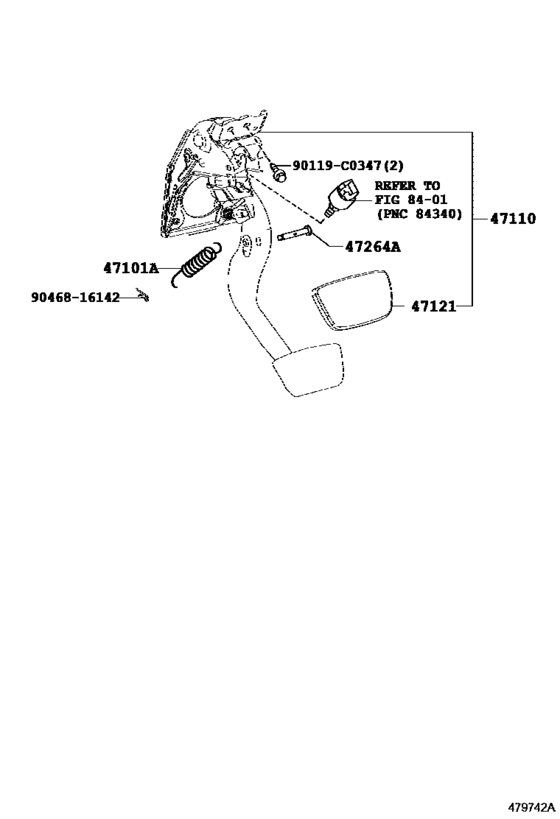

Brake Pedal & Bracket ([03.2015 - ] (1503- )) 7
| # | OEM | Part name |
|---|---|---|
| 47101 | 90507-15004 | Spring(For Brake Pedal Return) |
| 47110 | 47110-0E090 | Support Assy, Brake Pedal |
| 47121 | 47121-06010 | Pad, Brake Pedal |
| 47264 | 90249-06180 | Pin(For Push Rod) |
| 47264 | 90249-C0003 | Pin(For Push Rod) |
| 90119 | 90119-C0347 | New Genuine Part |
| 9046816142 | 90468-16142 | Clip(For Push Rod Clevis Pin) |
| OEM | Part name | Category |
|---|---|---|
| 47110-0E090 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([03.2015 - ] (1503- )) |
| 47121-06010 | Pad, Brake Pedal | Brake Pedal & Bracket ([03.2015 - ] (1503- )) |
| 90119-C0347 | New Genuine Part | Brake Pedal & Bracket ([03.2015 - ] (1503- )) |
| 90249-06180 | Pin(For Push Rod) | Brake Pedal & Bracket ([03.2015 - ] (1503- )) |
| 90249-C0003 | Pin(For Push Rod) | Brake Pedal & Bracket ([03.2015 - ] (1503- )) |
| 90468-16142 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([03.2015 - ] (1503- )) |
| 90507-15004 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([03.2015 - ] (1503- )) |
