ASU40

Toyota HIGHLANDER-KLUGER · 2008 · 4,733 parts · 214 categories

4,733 items

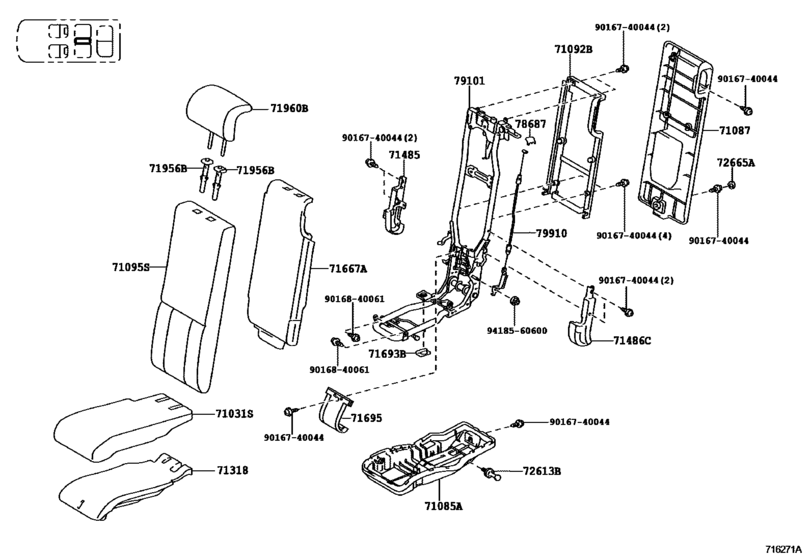

Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- )) 52

#	OEM	Part name
71031	71097-0E050-C1	Cover Sub-Assy, Center Seat Cushion
71031	71097-0E050-E1	Cover Sub-Assy, Center Seat Cushion
71031	71097-0E040-E1	Cover Sub-Assy, Center Seat Cushion
71085	79117-0E010-C0	Cover Sub-Assy, Rear Seat Cushion, No.2
71085	79117-0E010-E0	Cover Sub-Assy, Rear Seat Cushion, No.2
71087	71087-0E040-C0	Board Sub-Assy, Rear Seat Back
71087	71087-0E040-E0	Board Sub-Assy, Rear Seat Back
71092	71758-0E010-C0	Cover Sub-Assy, No.2 Seat Back
71092	71758-0E010-E0	Cover Sub-Assy, No.2 Seat Back
71095	71095-0E020-C1	Cover Sub-Assy, Center Seat Back
71095	71095-0E021-C1	Cover Sub-Assy, Center Seat Back
71095	71095-0E020-E1	Cover Sub-Assy, Center Seat Back
71095	71095-0E021-E1	Cover Sub-Assy, Center Seat Back
71095	71095-0E010-E1	Cover Sub-Assy, Center Seat Back
71095	71095-0E011-E1	Cover Sub-Assy, Center Seat Back
71318	71316-0E010	Pad, Center Seat Cushion
71485	71485-0E010-C0	Cover, Rear Seat Hinge
71485	71485-0E010-E0	Cover, Rear Seat Hinge
71486	71486-0E010-C0	Cover, Rear Seat Hinge, Lh
71486	71486-0E010-E0	Cover, Rear Seat Hinge, Lh
71667	71668-0E010	Pad, Rear Seat Back, Center A
71693	71846-0E030-C0	Cap, Rear Seat Cushion Hinge
71693	71846-0E030-E0	Cap, Rear Seat Cushion Hinge
71695	71695-0E010-C0	Protector, Rear Seat Back
71695	71695-0E010-E0	Protector, Rear Seat Back
71956	71930-02360-C0	Support, Front Seat Headrest
71956	71930-02360-E2	Support, Front Seat Headrest
71956	71930-44020-C0	Support, Front Seat Headrest
71956	71930-44020-E2	Support, Front Seat Headrest
71956	71931-02120-C0	Support, Front Seat Headrest
71956	71931-02120-E2	Support, Front Seat Headrest
71956	71931-47010-C0	Support Assy, Rear Seat Legrest
71956	71931-47010-E8	Support, Front Seat Headrest
71960	71960-0E050-C0	Headrest Assy, Rear Seat, Center
71960	71960-0E050-C1	Headrest Assy, Rear Seat, Center
71960	71960-0E051-C1	Headrest Assy, Rear Seat, Center
71960	71960-0E050-E0	Headrest Assy, Rear Seat, Center
71960	71960-0E050-E1	Headrest Assy, Rear Seat, Center
71960	71960-0E051-E1	Headrest Assy, Rear Seat, Center
71960	71960-0E040-E0	Headrest Assy, Rear Seat, Center
71960	71960-0E040-E2	Headrest Assy, Rear Seat, Center
71960	71960-0E041-E2	Headrest Assy, Rear Seat, Center
72613	72613-48010	Striker, Rear Seat Lock
72665	71848-0E010-C0	Cap, Seat Adjuster Cover, Rh
72665	71848-0E010-E0	Cap, Seat Adjuster Cover, Rh
78687	78687-0E010-C0	Cover, Rear Seat Legrest Lock
78687	78687-0E010-E0	Cover, Rear Seat Legrest Lock
79101	79102-0E010	Frame Sub-Assy, No.1 Seat Cushion
79910	79910-48010	Cable Assy, Rear Seat Turn, No.1
9016740044	90167-40044	BOLT
9016840061	90168-40061	SCREW
9418560600	94185-60600	Nut, Wire Adjusting, No.1

OEM	Part name	Category
71087-0E040-C0	Board Sub-Assy, Rear Seat Back	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71087-0E040-E0	Board Sub-Assy, Rear Seat Back	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71095-0E010-E1	Cover Sub-Assy, Center Seat Back	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71095-0E011-E1	Cover Sub-Assy, Center Seat Back	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71095-0E020-C1	Cover Sub-Assy, Center Seat Back	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71095-0E020-E1	Cover Sub-Assy, Center Seat Back	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71095-0E021-C1	Cover Sub-Assy, Center Seat Back	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71095-0E021-E1	Cover Sub-Assy, Center Seat Back	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71097-0E040-E1	Cover Sub-Assy, Center Seat Cushion	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71097-0E050-C1	Cover Sub-Assy, Center Seat Cushion	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71097-0E050-E1	Cover Sub-Assy, Center Seat Cushion	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71316-0E010	Pad, Center Seat Cushion	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71485-0E010-C0	Cover, Rear Seat Hinge	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71485-0E010-E0	Cover, Rear Seat Hinge	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71486-0E010-C0	Cover, Rear Seat Hinge, Lh	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71486-0E010-E0	Cover, Rear Seat Hinge, Lh	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71668-0E010	Pad, Rear Seat Back, Center A	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71695-0E010-C0	Protector, Rear Seat Back	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71695-0E010-E0	Protector, Rear Seat Back	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71758-0E010-C0	Cover Sub-Assy, No.2 Seat Back	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71758-0E010-E0	Cover Sub-Assy, No.2 Seat Back	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71846-0E030-C0	Cap, Rear Seat Cushion Hinge	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71846-0E030-E0	Cap, Rear Seat Cushion Hinge	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71848-0E010-C0	Cap, Seat Adjuster Cover, Rh	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71848-0E010-E0	Cap, Seat Adjuster Cover, Rh	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71930-02360-C0	Support, Front Seat Headrest	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71930-02360-E2	Support, Front Seat Headrest	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71930-44020-C0	Support, Front Seat Headrest	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71930-44020-E2	Support, Front Seat Headrest	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71931-02120-C0	Support, Front Seat Headrest	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71931-02120-E2	Support, Front Seat Headrest	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71931-47010-C0	Support Assy, Rear Seat Legrest	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71931-47010-E8	Support, Front Seat Headrest	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71960-0E040-E0	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71960-0E040-E2	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71960-0E041-E2	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71960-0E050-C0	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71960-0E050-C1	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71960-0E050-E0	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71960-0E050-E1	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71960-0E051-C1	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
71960-0E051-E1	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
72613-48010	Striker, Rear Seat Lock	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
78687-0E010-C0	Cover, Rear Seat Legrest Lock	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
78687-0E010-E0	Cover, Rear Seat Legrest Lock	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
79102-0E010	Frame Sub-Assy, No.1 Seat Cushion	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
79117-0E010-C0	Cover Sub-Assy, Rear Seat Cushion, No.2	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
79117-0E010-E0	Cover Sub-Assy, Rear Seat Cushion, No.2	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
79910-48010	Cable Assy, Rear Seat Turn, No.1	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
90167-40044	BOLT	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
90168-40061	SCREW	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
94185-60600	Nut, Wire Adjusting, No.1	Rear Seat & Seat Track ([05.2009 - ] REAR NO.1 SEAT,CENTER (0905- ))
