Search › Model › ASU40
ASU40

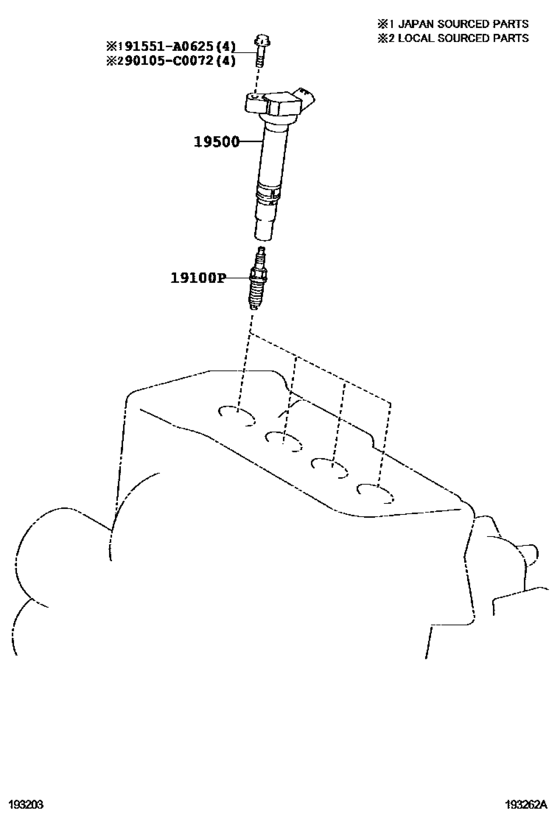

Ignition Coil & Spark Plug ([05.2009 - ] (0905- )1ARFE) 6
| # | OEM | Part name |
|---|---|---|
| 19100 | 90919-01233 | Spark Plug (Denso SK16HR11) |
| 19100 | 90919-C1001 | Plug, Spark |
| 19500 | 90919-02256 | Coil Assy, Ignition |
| 19500 | 90919-C2004 | Coil Assy, Ignition |
| 90105 | 90105-C0072 | Bolt(For Cylinder Head Cover) |
| 91551 | 91551-A0625 | Bolt(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 90105-C0072 | Bolt(For Cylinder Head Cover) | Ignition Coil & Spark Plug ([05.2009 - ] (0905- )1ARFE) |
| 90919-01233 | Spark Plug (Denso SK16HR11) | Ignition Coil & Spark Plug ([05.2009 - ] (0905- )1ARFE) |
| 90919-02256 | Coil Assy, Ignition | Ignition Coil & Spark Plug ([05.2009 - ] (0905- )1ARFE) |
| 90919-C1001 | Plug, Spark | Ignition Coil & Spark Plug ([05.2009 - ] (0905- )1ARFE) |
| 90919-C2004 | Coil Assy, Ignition | Ignition Coil & Spark Plug ([05.2009 - ] (0905- )1ARFE) |
| 91551-A0625 | Bolt(For Cylinder Head Cover) | Ignition Coil & Spark Plug ([05.2009 - ] (0905- )1ARFE) |
