Search › Model › ASU40

ASU40

Toyota HIGHLANDER-KLUGER · 2008 · 4,733 parts · 214 categories

4,733 items

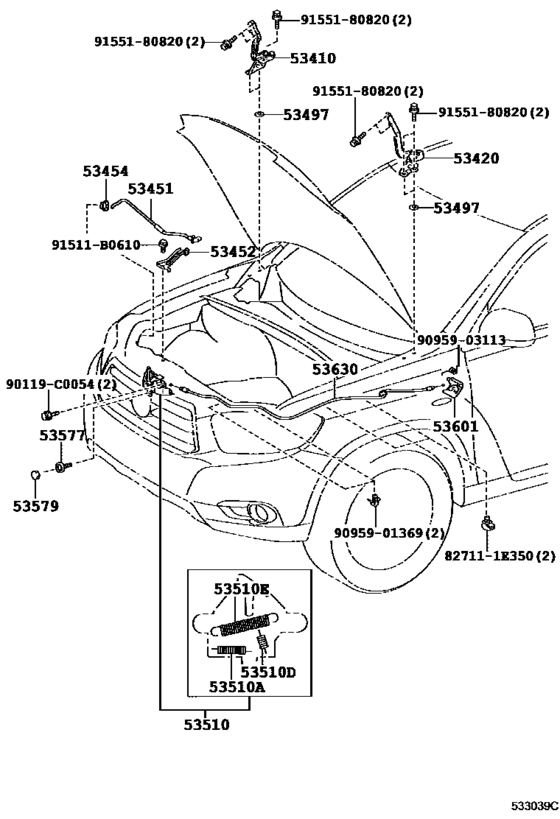

Hood Lock & Hinge ([05.2009 - ] (0905- )) 28

#	OEM	Part name
0	82711-1E350	Clamp, Wiring Harness
0	82711-06050	Clamp, Door Scuff Plate, No.2
53410	53410-0E100	Hinge Assy, Hood, Rh
53420	53420-0E100	Hinge Assy, Hood, Lh
53451	53440-0E030	Rod, Hood Support
53452	53452-48030	Holder, Hood Stay
53454	90480-15027	Grommet(For Hood Support)
53497	53497-0D100	Pad, Hood Hinge, No.1
53497	53497-0E050	Pad, Hood Hinge, No.1
53510	53510-0E030	Lock Assy, Hood
53510	53510-0E031	Lock Assy, Hood
53510	53510-0E032	Lock Assy, Hood
53510	53510-0E033	Lock Assy, Hood
53510	53510-0E080	Lock Assy, Hood
53510	90506-09055	Spring, Tension(For Hood Lock)
53510	90506-12063	Spring, Tension(For Hood Lock)
53510	90506-18067	Spring, Tension(For Hood Lock)
53577	53577-33010	Bolt, Hood Lock
53579	53579-0E020	Cap, Hood Lock Nut
53579	53579-50010	Cap, Hood Lock Nut
53601	53611-22010-C0	Lever Sub-Assy, Hood Lock Control
53601	53611-22010-E5	Lever Sub-Assy, Hood Lock Control
53630	53630-0E030	Cable Assy, Hood Lock Control
90119	90119-C0054	New Genuine Part
91511	91511-B0610	BOLT FLANGE
9095901369	90959-01369	Clamp, Hood Lock Control Cable
9095903113	90959-03113	SPRING TORSION
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)

OEM	Part name	Category
53410-0E100	Hinge Assy, Hood, Rh	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53420-0E100	Hinge Assy, Hood, Lh	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53440-0E030	Rod, Hood Support	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53452-48030	Holder, Hood Stay	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53497-0D100	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53497-0E050	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53510-0E030	Lock Assy, Hood	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53510-0E031	Lock Assy, Hood	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53510-0E032	Lock Assy, Hood	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53510-0E033	Lock Assy, Hood	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53510-0E080	Lock Assy, Hood	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53577-33010	Bolt, Hood Lock	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53579-0E020	Cap, Hood Lock Nut	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53579-50010	Cap, Hood Lock Nut	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53611-22010-C0	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53611-22010-E5	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([05.2009 - ] (0905- ))
53630-0E030	Cable Assy, Hood Lock Control	Hood Lock & Hinge ([05.2009 - ] (0905- ))
82711-06050	Clamp, Door Scuff Plate, No.2	Hood Lock & Hinge ([05.2009 - ] (0905- ))
82711-1E350	Clamp, Wiring Harness	Hood Lock & Hinge ([05.2009 - ] (0905- ))
90119-C0054	New Genuine Part	Hood Lock & Hinge ([05.2009 - ] (0905- ))
90480-15027	Grommet(For Hood Support)	Hood Lock & Hinge ([05.2009 - ] (0905- ))
90506-09055	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([05.2009 - ] (0905- ))
90506-12063	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([05.2009 - ] (0905- ))
90506-18067	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([05.2009 - ] (0905- ))
90959-01369	Clamp, Hood Lock Control Cable	Hood Lock & Hinge ([05.2009 - ] (0905- ))
90959-03113	SPRING TORSION	Hood Lock & Hinge ([05.2009 - ] (0905- ))
91511-B0610	BOLT FLANGE	Hood Lock & Hinge ([05.2009 - ] (0905- ))
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Hood Lock & Hinge ([05.2009 - ] (0905- ))
