Search › Model › ASU40

ASU40

Toyota HIGHLANDER-KLUGER · 2008 · 4,733 parts · 214 categories

4,733 items

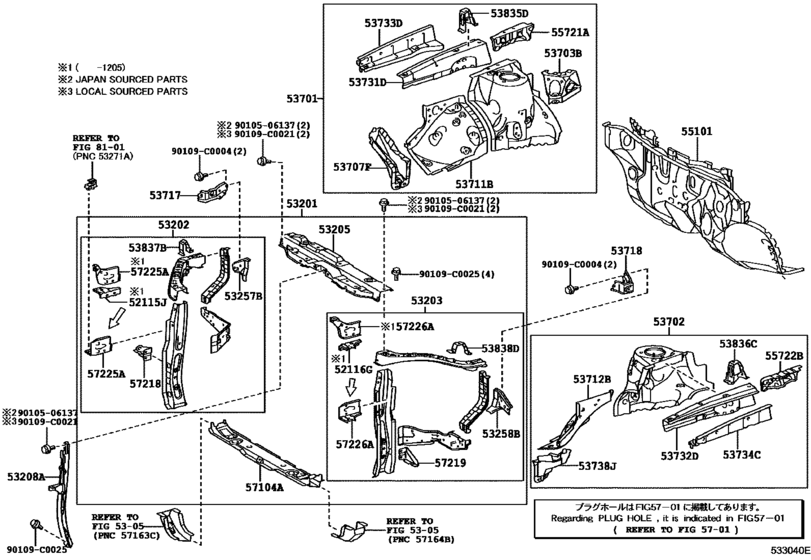

Front Fender Apron & Dash Panel ([05.2009 - ] (0905- )) 57

#	OEM	Part name
52115	52115-0E040	Support, Front Bumper Side, Rh
52116	52116-0E030	Support, Front Bumper Side, Lh
53201	53201-0E900	Support Sub-Assy, Radiator
53201	53201-0E903	Support Sub-Assy, Radiator
53202	53202-0E030	Support Sub-Assy, Radiator, Rh
53202	53202-0E060	Support Sub-Assy, Radiator, Rh
53203	53203-0E030	Support Sub-Assy, Radiator, Lh
53203	53203-0E060	Support Sub-Assy, Radiator, Lh
53205	53216-0E030	Support Sub-Assy, Radiator, Upper
53208	53208-0E030	Support Sub-Assy, Hood Lock
53208	53208-0E031	Support Sub-Assy, Hood Lock
53208	53208-0E060	Support Sub-Assy, Hood Lock
53208	53208-0E061	Support Sub-Assy, Hood Lock
53257	53257-0E030	Bracket, Radiator Support To Front Fender
53257	53257-0E060	Bracket, Radiator Support To Front Fender
53258	53258-0E030	Bracket, Radiator Support To Front Fender, Lh
53701	53701-0E030	Apron Sub-Assy, Front Fender, Rh
53701	53701-0E031	Apron Sub-Assy, Front Fender, Rh
53702	53702-0E030	Apron Sub-Assy, Front Fender, Lh
53702	53702-0E032	Apron Sub-Assy, Front Fender, Lh
53702	90333-30008	PLUG PLATE
53702	53702-0E031	Apron Sub-Assy, Front Fender, Lh
53703	53703-0E030	Retainer Sub-Assy, Fender Apron, Rh
53703	53703-0E031	Retainer Sub-Assy, Fender Apron, Rh
53707	53707-0E020	Gusset Sub-Assy, Front Fender Apron, Lower Rh
53711	53711-0E030	Apron, Front Fender, Front Rh
53712	53712-0E030	Apron, Front Fender, Front Lh
53717	53717-0E030	Plate, Fender Apron, Rh
53717	53717-0E060	Plate, Fender Apron, Rh
53718	53718-0E030	Plate, Fender Apron, Lh
53718	53718-0E060	Plate, Fender Apron, Lh
53731	53731-0E030	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-0E030	Member, Front Apron To Cowl Side, Upper Lh
53733	53733-0E030	Member, Front Apron To Cowl Side, Lower Front Rh
53733	53733-0E031	Member, Front Apron To Cowl Side, Lower Front Rh
53734	53734-0E030	Member, Front Apron To Cowl Side, Lower Front Lh
53734	53734-0E031	Member, Front Apron To Cowl Side, Lower Front Lh
53738	53738-0E030	Gusset, Front Fender Apron Wind Guide, Lh
53738	53738-0E031	Gusset, Front Fender Apron Wind Guide, Lh
53835	53835-0E030	Bracket, Front Side Panel, Rh
53836	53836-0E030	Bracket, Front Side Panel, Lh
53837	53837-0E030	Bracket, Front Side Panel, No.2
53838	53838-0E030	Bracket, Front Side Panel, No.2 Lh
55101	55101-0E030	Panel Sub-Assy, Dash
55721	55721-0E030	Brace, Cowl Top To Cowl, Inner No.1
55722	55722-0E030	Brace, Cowl Top To Cowl, Inner No.2
57104	57104-0E030	Member Sub-Assy, Front Cross
57218	57218-0E030	Gusset, Front Side Member, No.1
57219	57219-0E030	Gusset, Front Side Member, No.2
57225	57225-0E020	Brace, Front Mounting Bracket, Rh
57225	57225-0E060	Brace, Front Mounting Bracket, Rh
57226	57226-0E020	Brace, Front Mounting Bracket, Lh
57226	57226-0E050	Brace, Front Mounting Bracket, Lh
90109	90109-C0004	New Genuine Part
90109	90109-C0021	New Genuine Part
90109	90109-C0025	New Genuine Part
9010506137	90105-06137	BOLT, WASHER BASED H

OEM	Part name	Category
52115-0E040	Support, Front Bumper Side, Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
52116-0E030	Support, Front Bumper Side, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53201-0E900	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53201-0E903	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53202-0E030	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53202-0E060	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53203-0E030	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53203-0E060	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53208-0E030	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53208-0E031	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53208-0E060	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53208-0E061	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53216-0E030	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53257-0E030	Bracket, Radiator Support To Front Fender	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53257-0E060	Bracket, Radiator Support To Front Fender	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53258-0E030	Bracket, Radiator Support To Front Fender, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53701-0E030	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53701-0E031	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53702-0E030	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53702-0E031	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53702-0E032	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53703-0E030	Retainer Sub-Assy, Fender Apron, Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53703-0E031	Retainer Sub-Assy, Fender Apron, Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53707-0E020	Gusset Sub-Assy, Front Fender Apron, Lower Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53711-0E030	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53712-0E030	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53717-0E030	Plate, Fender Apron, Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53717-0E060	Plate, Fender Apron, Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53718-0E030	Plate, Fender Apron, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53718-0E060	Plate, Fender Apron, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53731-0E030	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53732-0E030	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53733-0E030	Member, Front Apron To Cowl Side, Lower Front Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53733-0E031	Member, Front Apron To Cowl Side, Lower Front Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53734-0E030	Member, Front Apron To Cowl Side, Lower Front Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53734-0E031	Member, Front Apron To Cowl Side, Lower Front Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53738-0E030	Gusset, Front Fender Apron Wind Guide, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53738-0E031	Gusset, Front Fender Apron Wind Guide, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53835-0E030	Bracket, Front Side Panel, Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53836-0E030	Bracket, Front Side Panel, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53837-0E030	Bracket, Front Side Panel, No.2	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
53838-0E030	Bracket, Front Side Panel, No.2 Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
55101-0E030	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
55721-0E030	Brace, Cowl Top To Cowl, Inner No.1	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
55722-0E030	Brace, Cowl Top To Cowl, Inner No.2	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
57104-0E030	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
57218-0E030	Gusset, Front Side Member, No.1	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
57219-0E030	Gusset, Front Side Member, No.2	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
57225-0E020	Brace, Front Mounting Bracket, Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
57225-0E060	Brace, Front Mounting Bracket, Rh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
57226-0E020	Brace, Front Mounting Bracket, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
57226-0E050	Brace, Front Mounting Bracket, Lh	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
90105-06137	BOLT, WASHER BASED H	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
90109-C0004	New Genuine Part	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
90109-C0021	New Genuine Part	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
90109-C0025	New Genuine Part	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
90333-30008	PLUG PLATE	Front Fender Apron & Dash Panel ([05.2009 - ] (0905- ))
